Note: The camera and monitor will automatically pair when powered on, eliminating the need for manual setup. This design streamlines the initial connection process.
If the camera disconnects from the monitor for some reason, follow these steps to re-establish the connection:
1. Power Setup
Power on the camera using the provided power adapter and cable.
Ensure the monitor is fully charged before proceeding.
2. Camera Pairing Mode
Long-press the Pair button on the camera for 1 second to activate pairing mode.
There will be a prompt sound, and the connection indicator light on the camera will flash slowly.
3. Monitor Connection Procedure

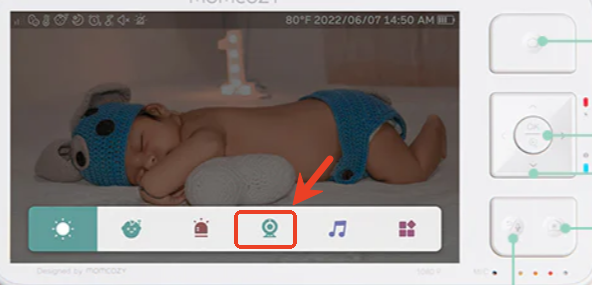

①. Press the Home button on the monitor to access the main menu.
Use the direction pad to select the Camera icon, then press the OK button to enter the camera settings menu.
②. Select "Add Camera" and the camera number on the monitor to initiate the connection.
Tips:
1. For best results, ensure the camera and monitor are positioned 1.5 to 4 meters apart with no obstructions between them before starting the connection. This clearance helps establish a successful connection
2. A single camera can only connect to one monitor at a time. Conversely, one monitor supports simultaneous connection to up to 4 cameras.
Once 4 cameras are successfully paired with the monitor, they will appear in the device list on the screen, as shown in the example below:
If you still need help, please send us an email at support@momcozy.com.
