Disassembly and Installation of S9 Pro breast pump

This article contains the following sections:

Disassembly for Cleaning
Assembly for Use

1.Disassembly for Cleaning:

To ensure proper hygiene, it's essential to disassemble your S9 Pro breast pump after each use for thorough cleaning.

Important Caution: Never put the main unit, charging cable, or the adapter (if you've purchased one) in water or a dishwasher, as this will cause permanent damage to these parts.

2.Assembly for Use:

Before assembling, ensure all parts that come into contact with milk or your breast have been thoroughly cleaned and disinfected. Be careful, when you have disinfected the breast pump parts by boiling them, they can be very hot. To prevent burns, only start assembling the breast pump when disinfected parts have cooled down. Always wash your hands thoroughly with soap and water before you touch breast pump parts and breasts to prevent contamination. Avoid touching the inside of milk collection set.

Here are the assembly steps:

Your breast pump is now ready for use!

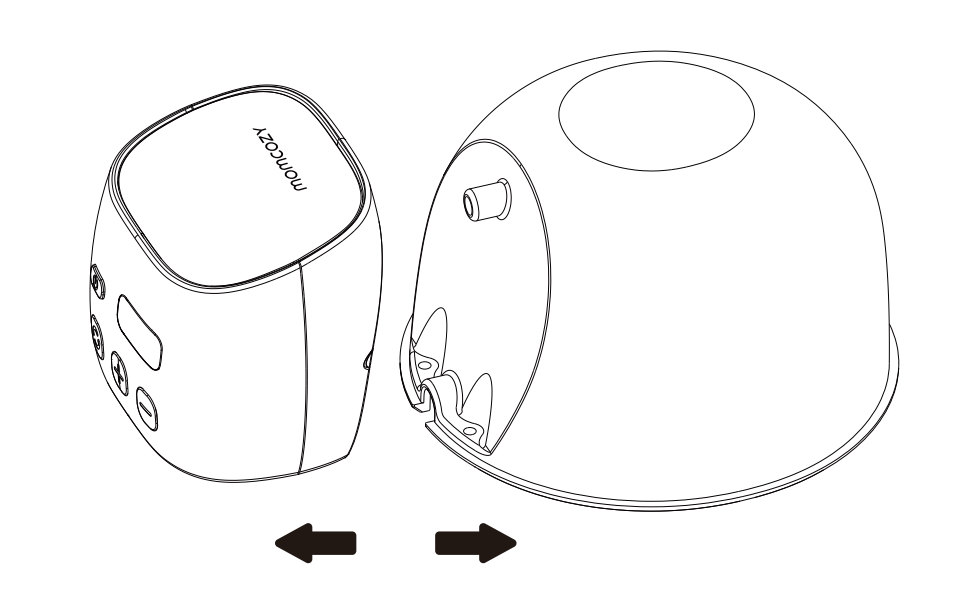

1.Separate pump motor from main body.

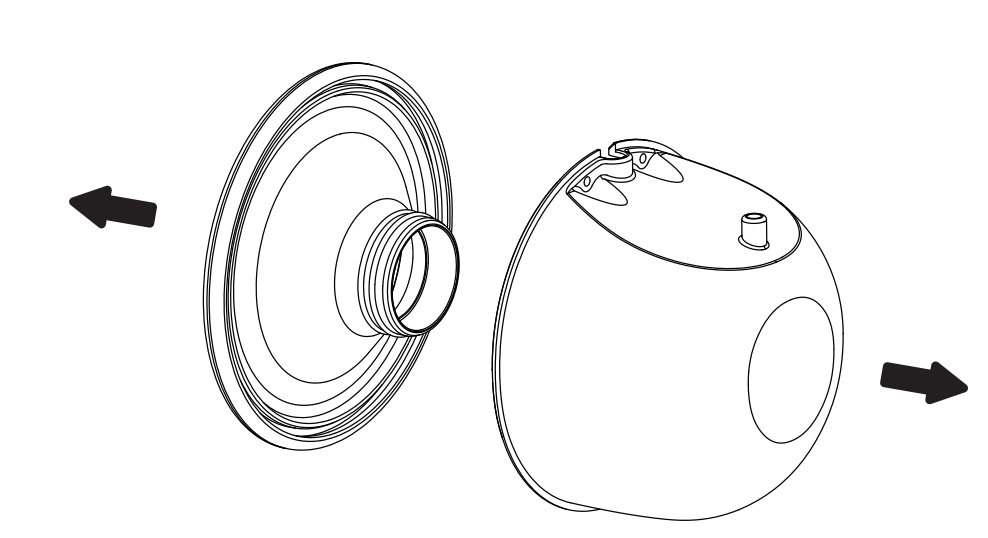

2.Detach flange from milk collector.
3.Separate linker from milk collector.

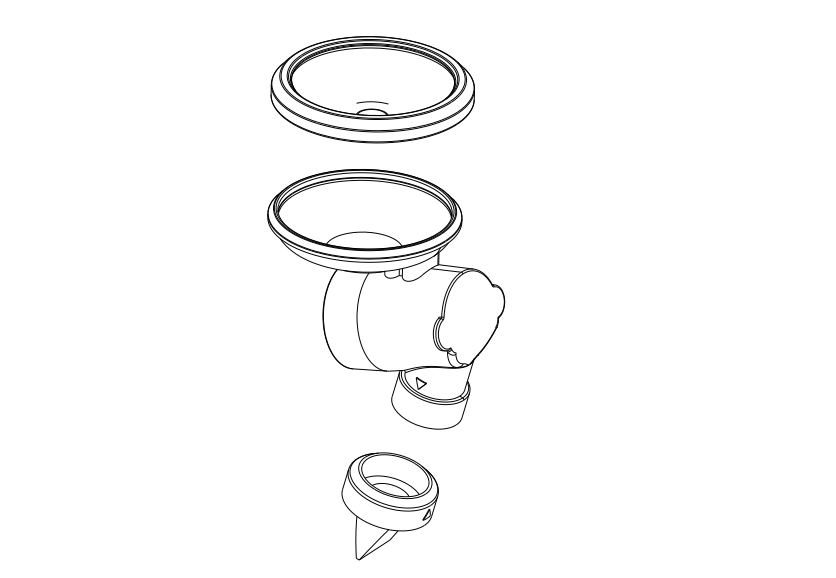

4.Disassemble diaphragm and valve from the linker.

1.Wash your hands thoroughly with soap and water.

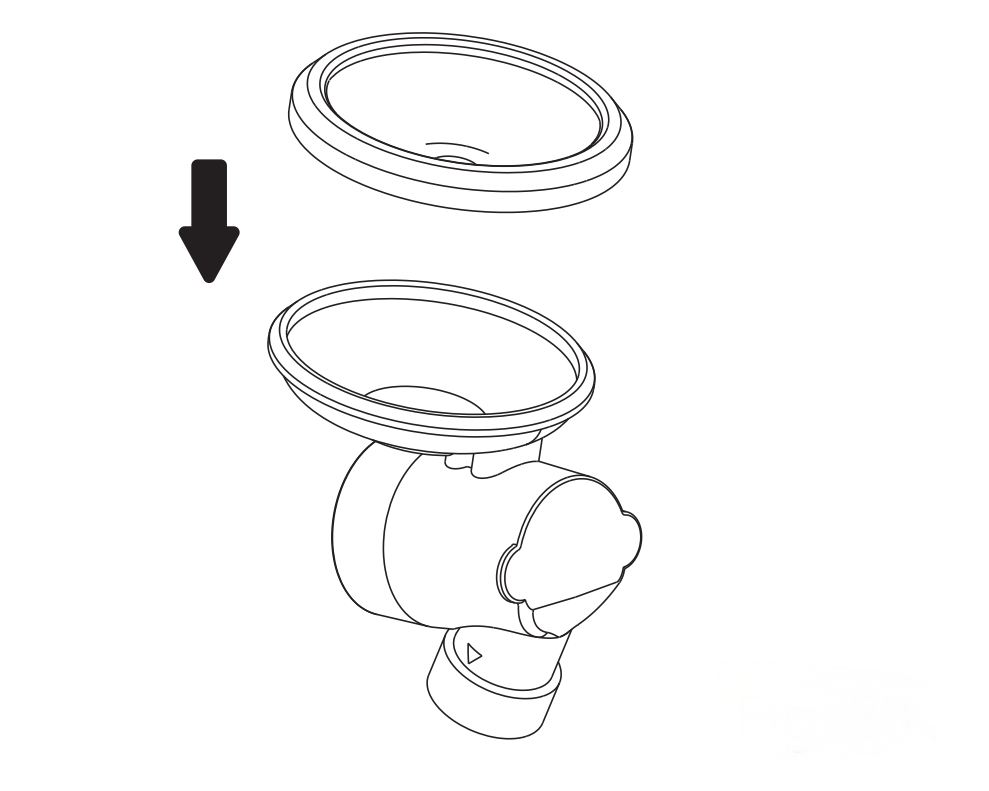

2.Put the silicone diaphragm into the linker and apply mild pressure around the edge until the silicone diaphragm seals well with the linker.

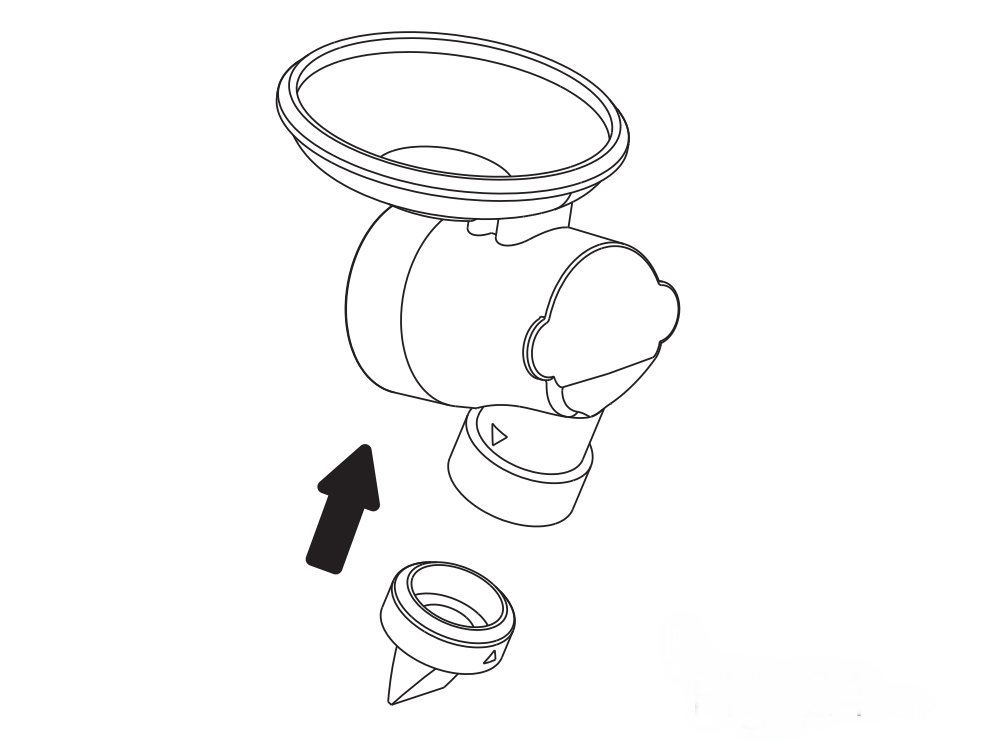

3.Connect the silicone valve with the end of the linker, and apply mild pressure to push the silicone valve to fit onto the linker securely.

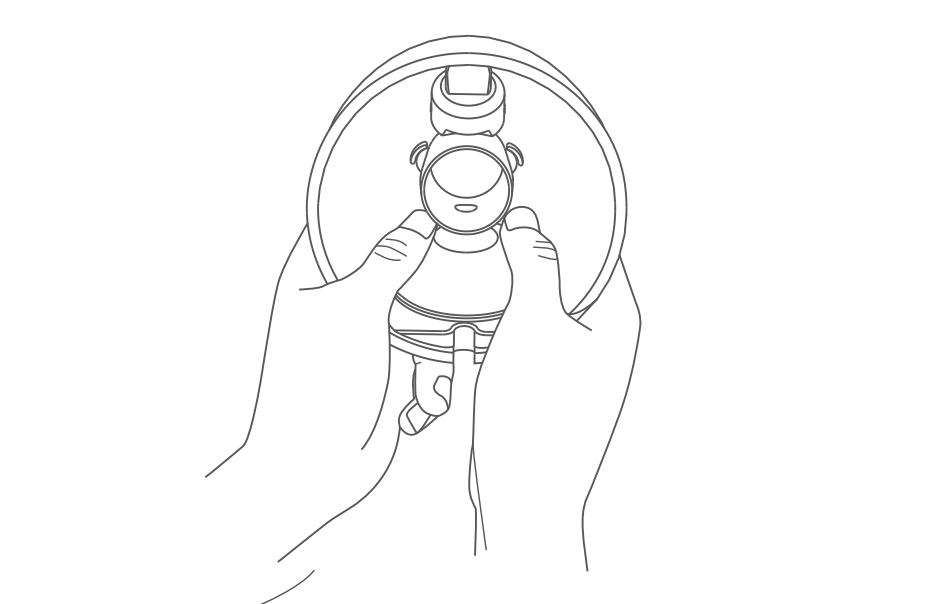

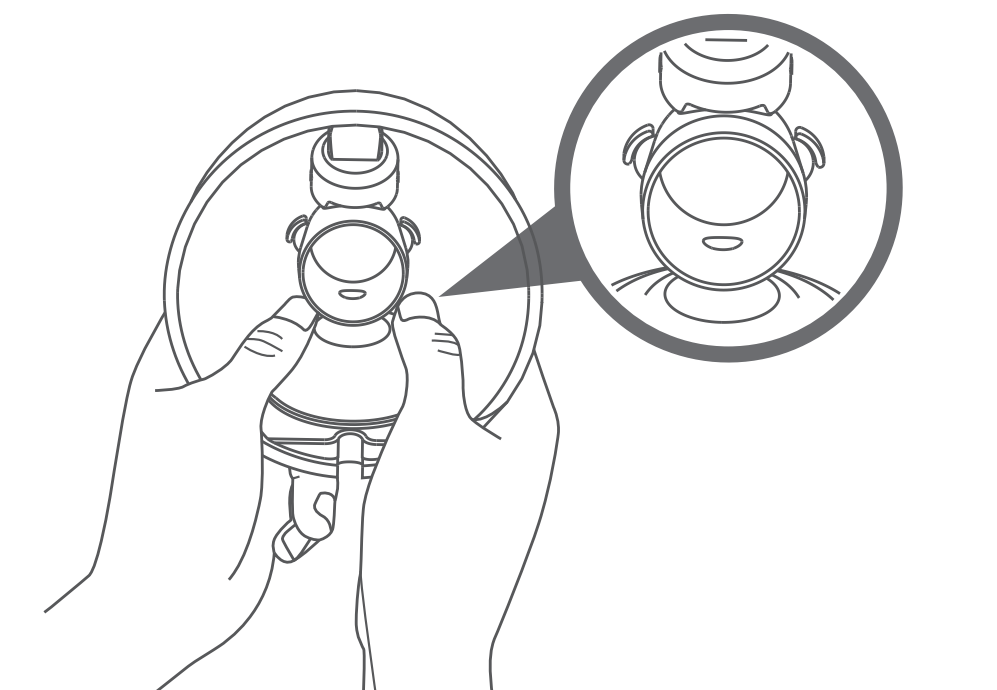

4.Put the assembled linker part into the milk collector, and align the "ear" notch of the linker with the inner groove of the milk collector. Press the silicone diaphragm onto the round hole of the milk collector, to make them fit well.

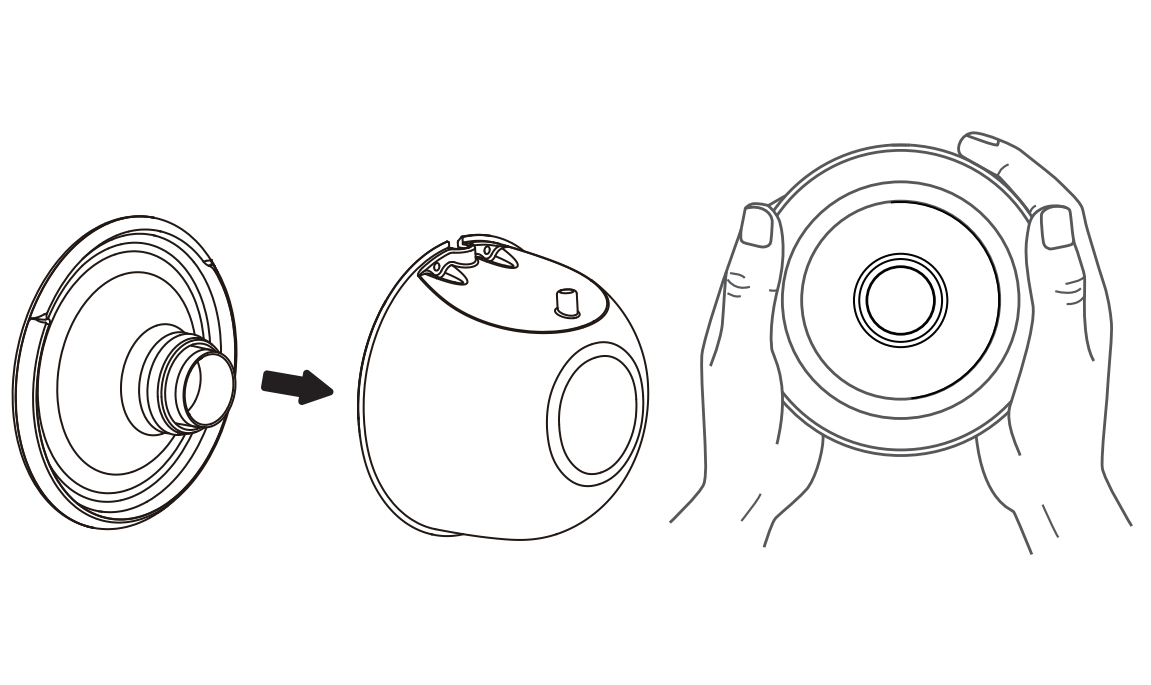

5.Connect the flange with the main body. Make sure that the flange fits securely around the rim by pressing it down with your thumbs.

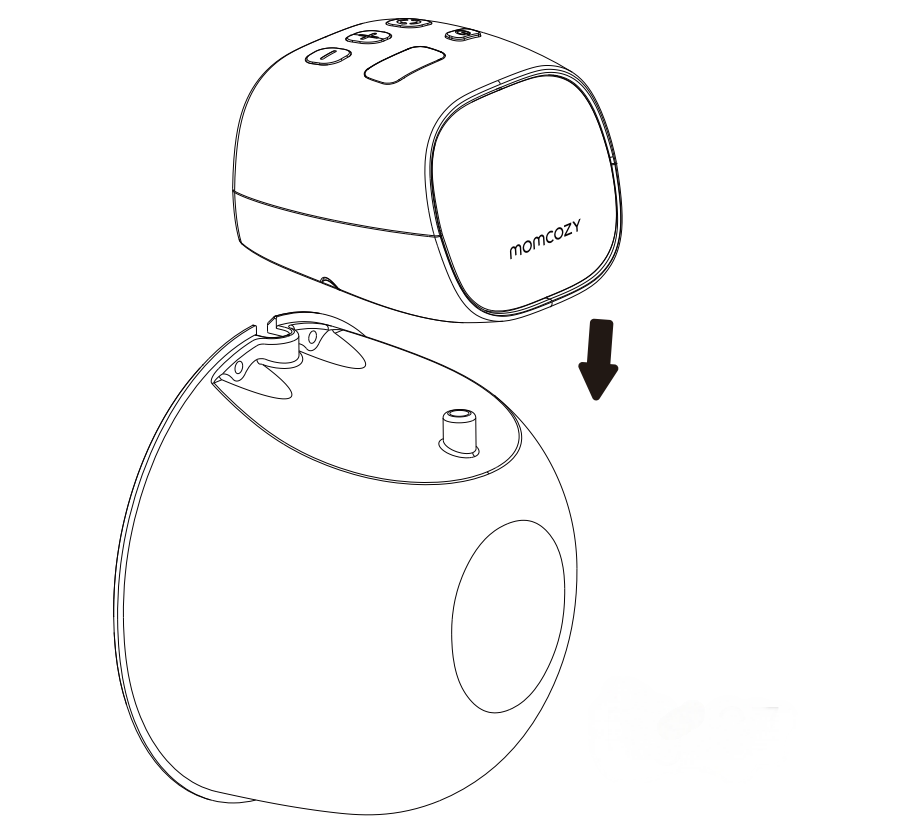

6.Insert the cylindrical protrusion located on the milk collector into the hole on the pump motor, and then align the groove on the milk collector with the notch on the pump motor.
