This article contains the following sections:
1.Disassembly for Cleaning:
To ensure proper hygiene, it's essential to disassemble your S12 Pro Quick breast pump after each use for thorough cleaning.

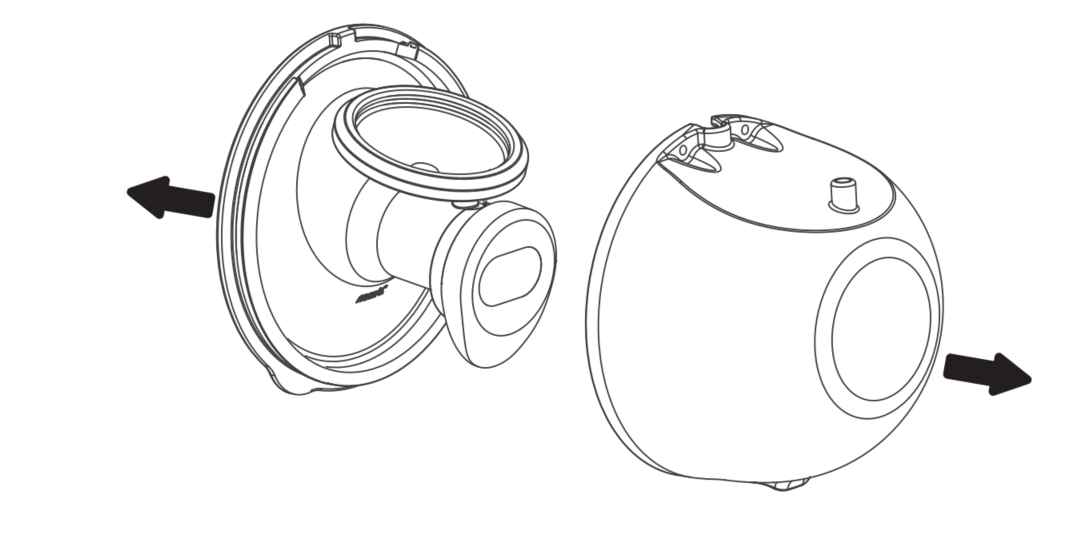

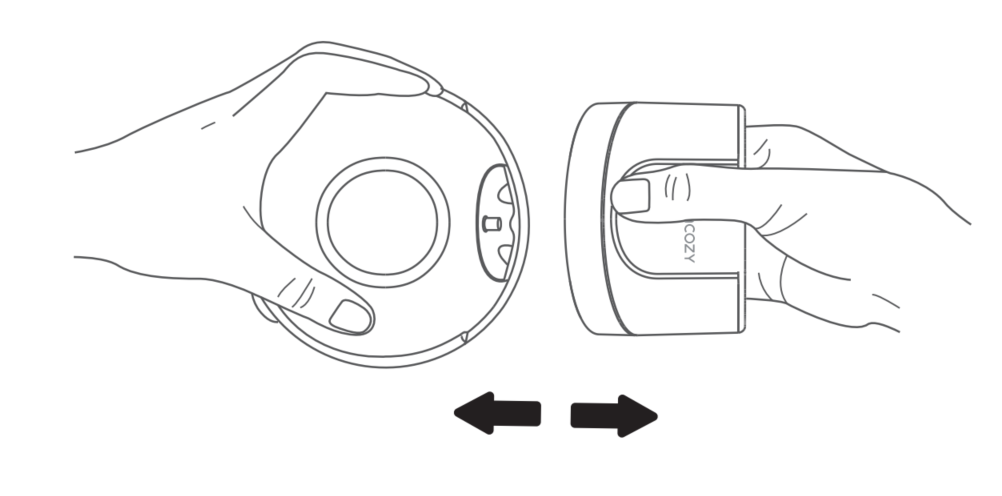

| 1.Separate pump motor from main body. | |
| 2.Detach flange from milk collector. | |

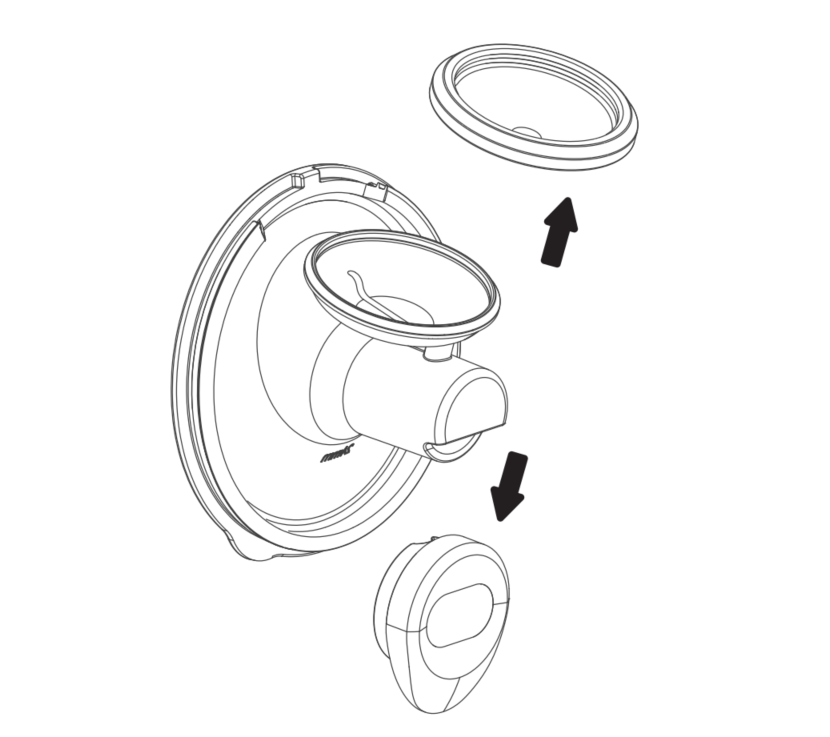

| 3.Detach the diaphragm and the valve from the flange. |
Important Caution: Never put the main unit, charging cable, or the adapter (if you've purchased one) in water or a dishwasher, as this will cause permanent damage to these parts.
2.Assembly for Use:
Before assembling, ensure all parts that come into contact with milk or your breast have been thoroughly cleaned and disinfected. Be careful, when you have disinfected the breast pump parts by boiling them, they can be very hot. To prevent burns, only start assembling the breast pump when disinfected parts have cooled down. Always wash your hands thoroughly with soap and water before you touch breast pump parts and breasts to prevent contamination. Avoid touching the inside of milk collection set.
Here are the assembly steps:

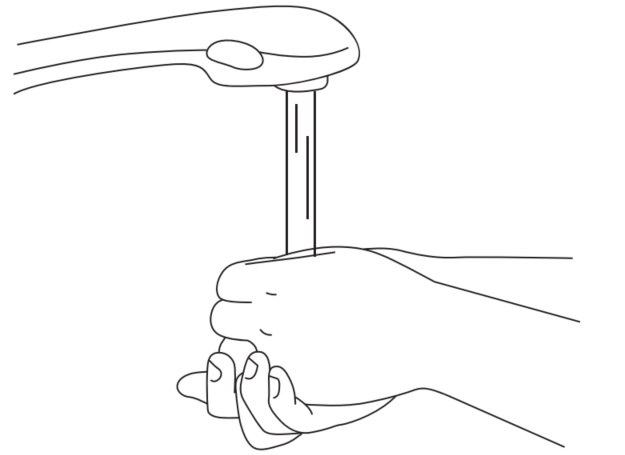

| 1.Wash your hands thoroughly with soap and water. | |

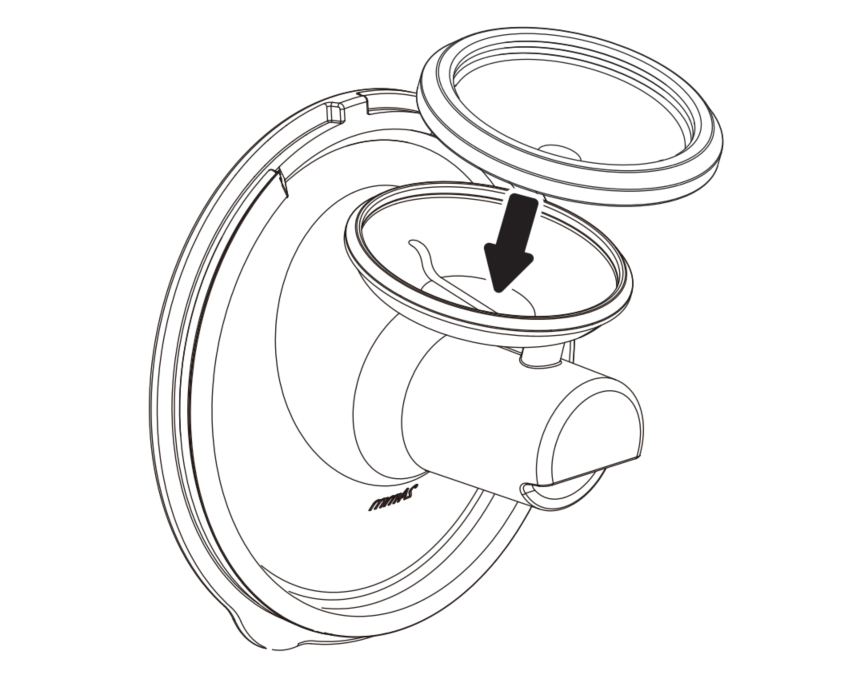

| 2.Install the diaphragm onto the flange. | |

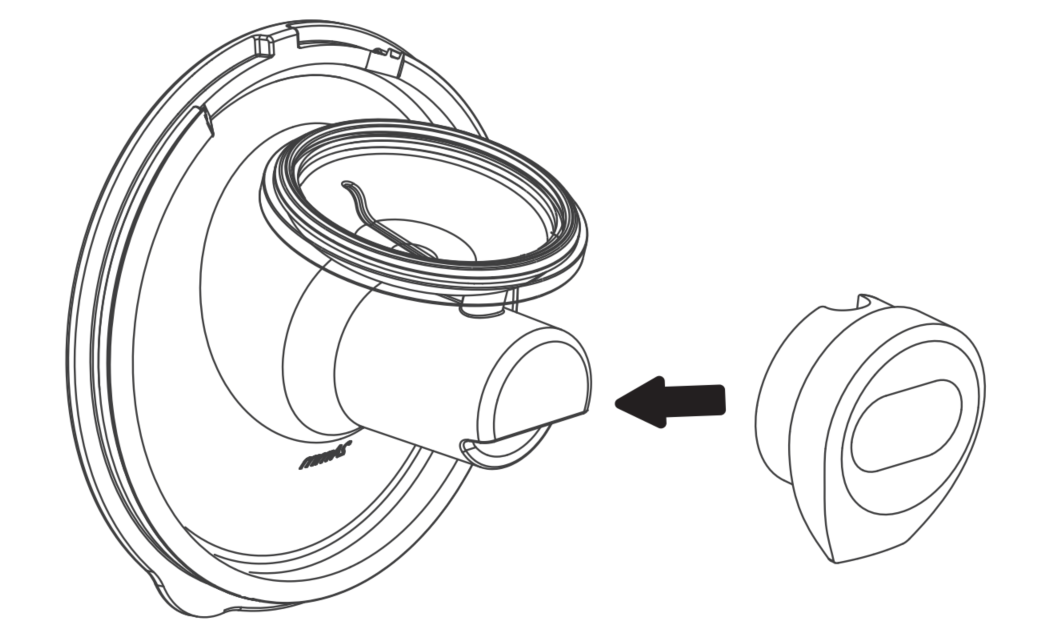

| 3.Attach the valve to the flange, ensuring it is straight and securely fitted with no gaps. | |

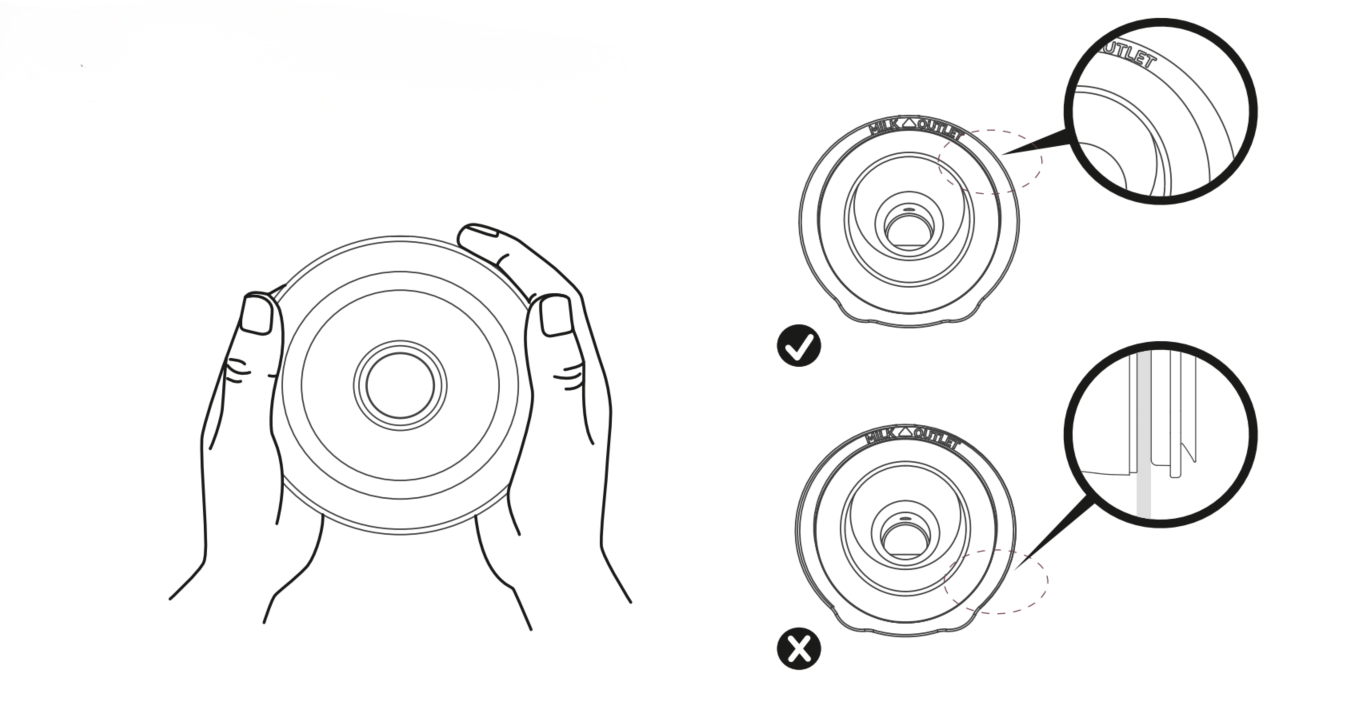

| 4.Connect the assembled flange to the milk collector. Check that the diaphragm has not shifted and ensure there is a seamless fit all the way around to prevent low suction or leaks. | |

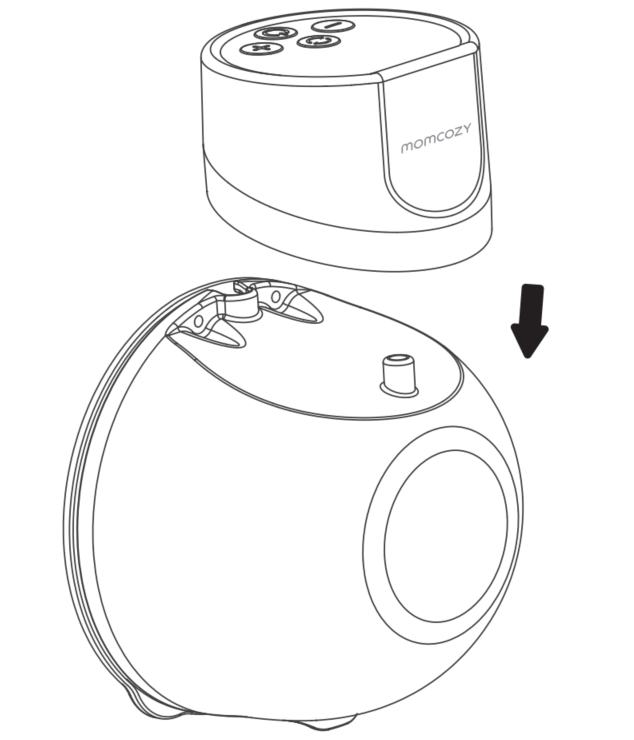

| 5.Insert the cylindrical protrusion on the milk collector into the port on the pump motor, then align the groove on the collector with the notch on the motor. |
Your breast pump is now ready for use!
