When you have multiple cameras connected, the BM03 and BM04 provide several ways to view and manage the different feeds, including a quick-switch shortcut and a split-screen display.

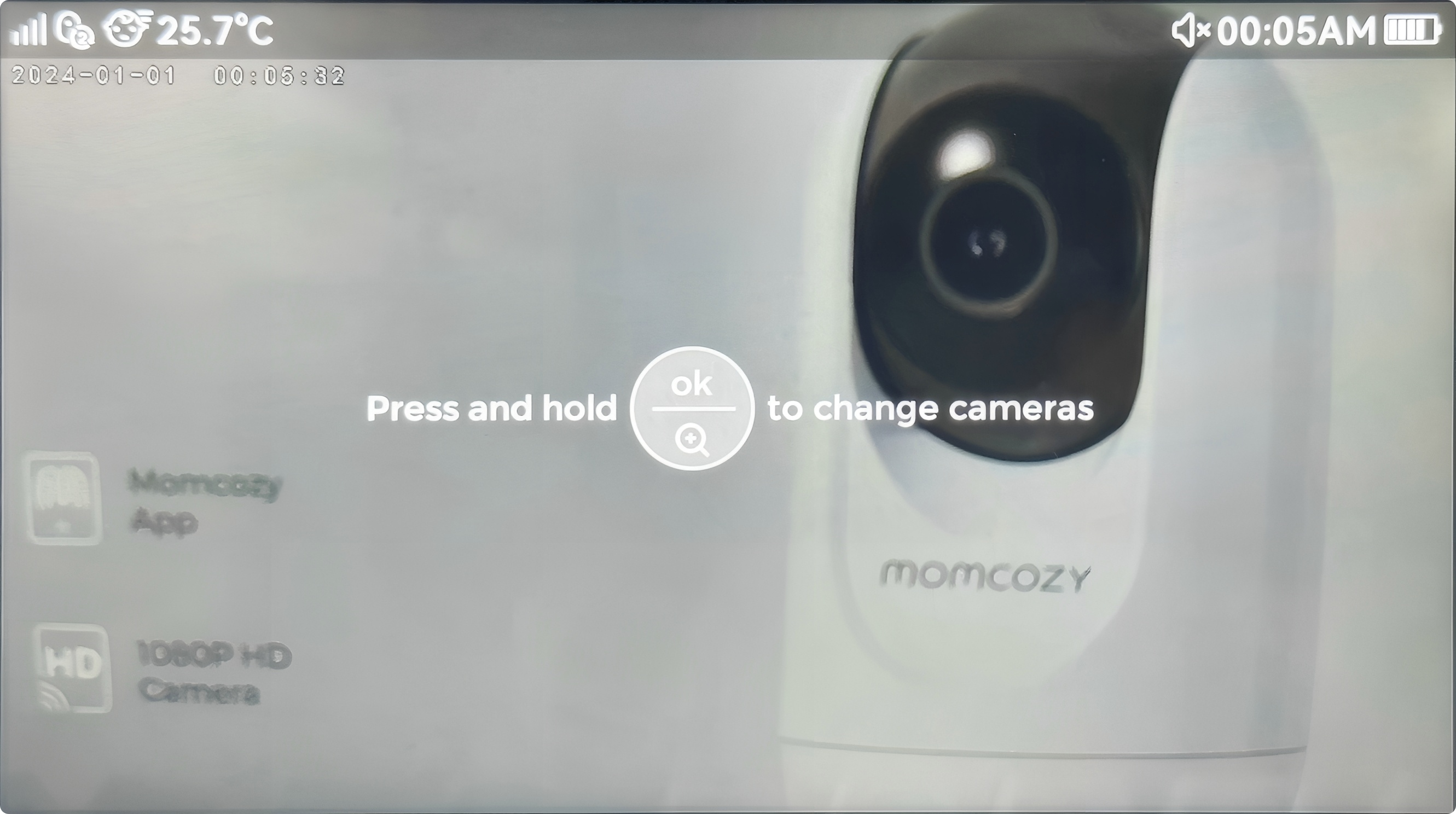

1. How to Quickly Switch Cameras in Full-Screen Mode
In the default, single-camera full-screen view, you can use a simple shortcut to cycle through all connected cameras.
Press and hold the OK button. The monitor will switch to the next paired camera.

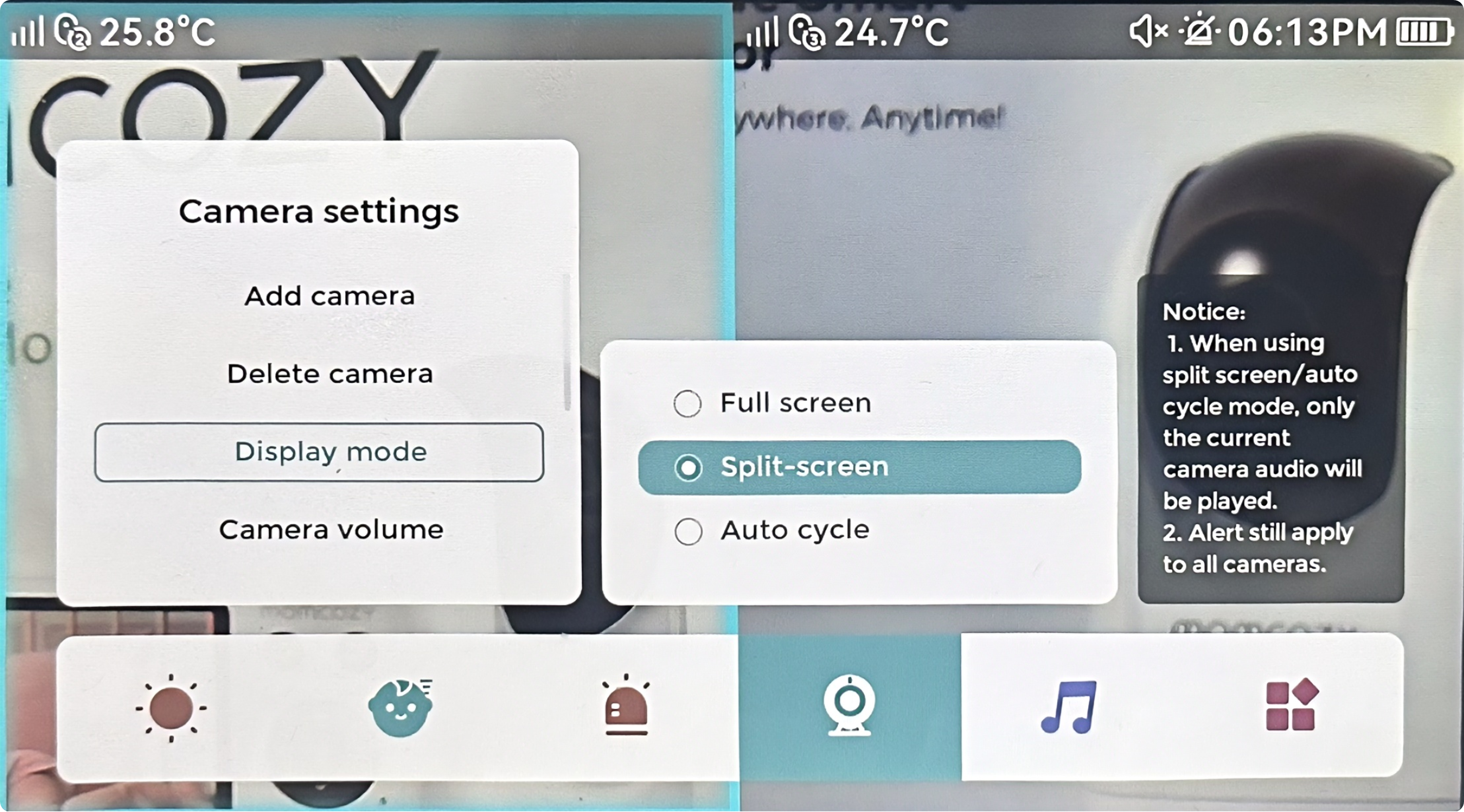

2. How to Enable Split-Screen Mode
a. Press the Menu button.
b. Select Camera settings.
c. Choose Display mode.
d. From the options that appear, select Split-screen.

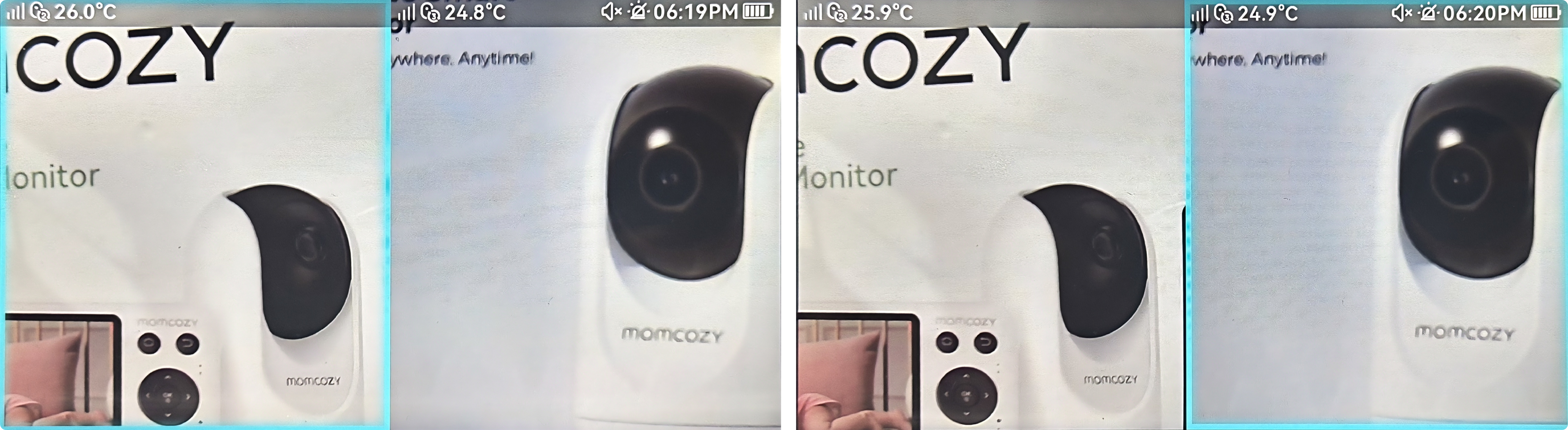

3. How to Operate in Split-Screen Mode
Controlling the Active Camera: The camera highlighted with a blue border is the "active camera." You can use remote pan & tilt, two-way talk, and record functions for this camera.
Switching the Active Camera: Press and hold the OK button to cycle the blue border between the camera views.
Entering/Exiting Full-Screen: Short press the OK button on a selected camera to view it in full screen. Press the Return/Back button to exit and return to the split-screen display.
4. Important Notices
When in Split-Screen mode:
Audio: You will only hear audio from the currently selected camera (the one with the blue border).
Alerts: Alert features remain active for all connected cameras and will trigger regardless of which one is selected.
