AIR1 Introduction

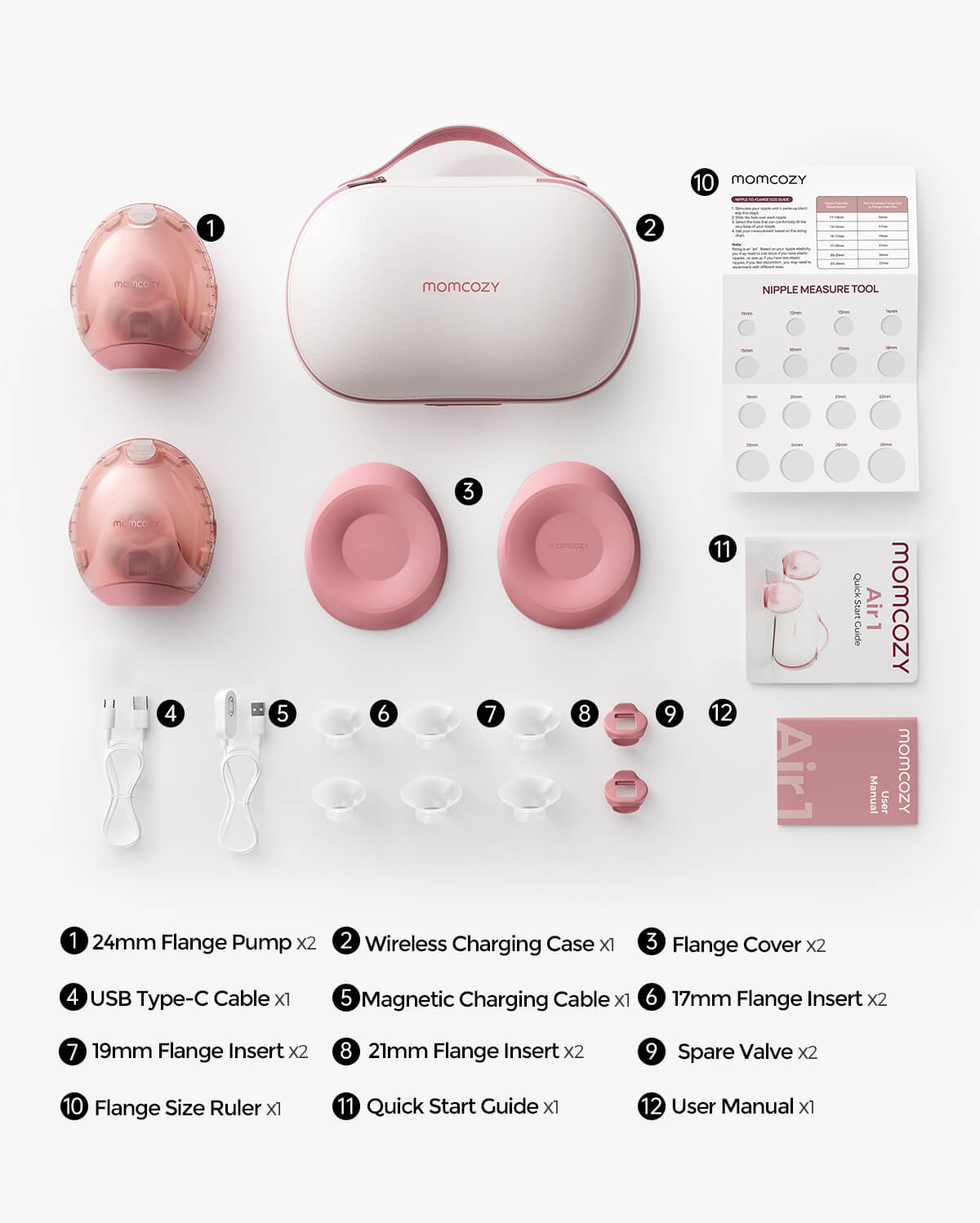

1.Product List
What's in the Box: Air1 | ||
|---|---|---|
NO. |
Name of the item |
Quantity |
1 |
Pump (with 24mm Flange) |
2 |
2 |
Wireless Charging Case |
1 |
3 |
Flange Cover |
2 |
4 |
USB Type-C Cable |
1 |
5 |
Magnetic Charging Cable |
1 |
6 |
17mm Flange Insert |
2 |
7 |
19mm Flange Insert |
2 |
8 |
21mm Flange Insert |
2 |
9 |
Spare Valve |
2 |
10 |
Flange Size Ruler |
1 |
11 |
Quick Start Guide |
1 |
12 |
User Manual |
1 |

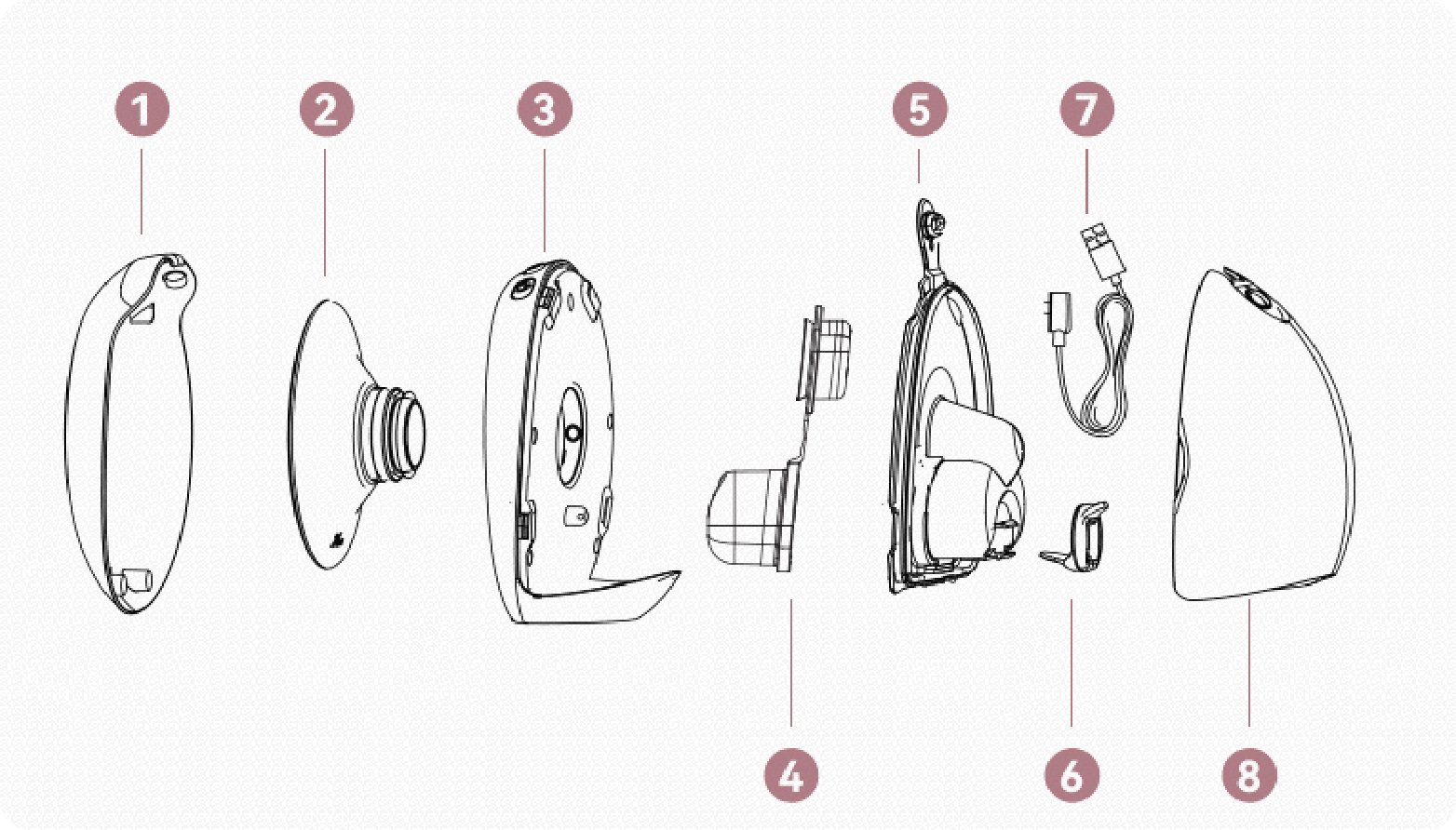

2.Unit Description
Description Of Breast Pump Unit | ||
NO. |
Item |
Description |
1 |
Flange Cover |
All of these components make up the milk collection set |
2 |
24mm Flange |
|
3 |
Pump Motor |
Main unit |
4 |
Diaphragm |
All of these components make up the milk collection set |
5 |
Milk Collector |
|
6 |
Valve |
|
7 |
Magnetic Charging Cable |
|
8 |
Milk Collector |
The milk collection set |
3.Appearance and Functionality

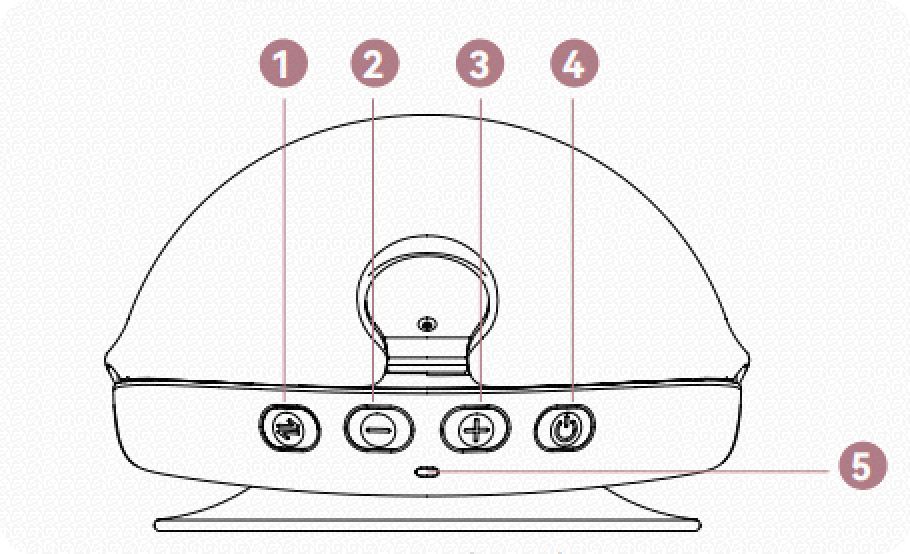

3.1.Control Panel
Description Of Control Panel | |||
NO. |
Buttons and LEDS |
Functions |
|
1 |
Mode Selection |
||
2 |
Decrease suction level |
||
3 |
Increase suction level |
||
4 |
On/Off; Pause/Continue: |
||
5 |
Indicator light: |
||
|
|
Battery full: solid white | ||
|
|
Low battery (one cycle left): solid red | ||
| Charging: flashing green | |||
| Fully charged: solid green | |||

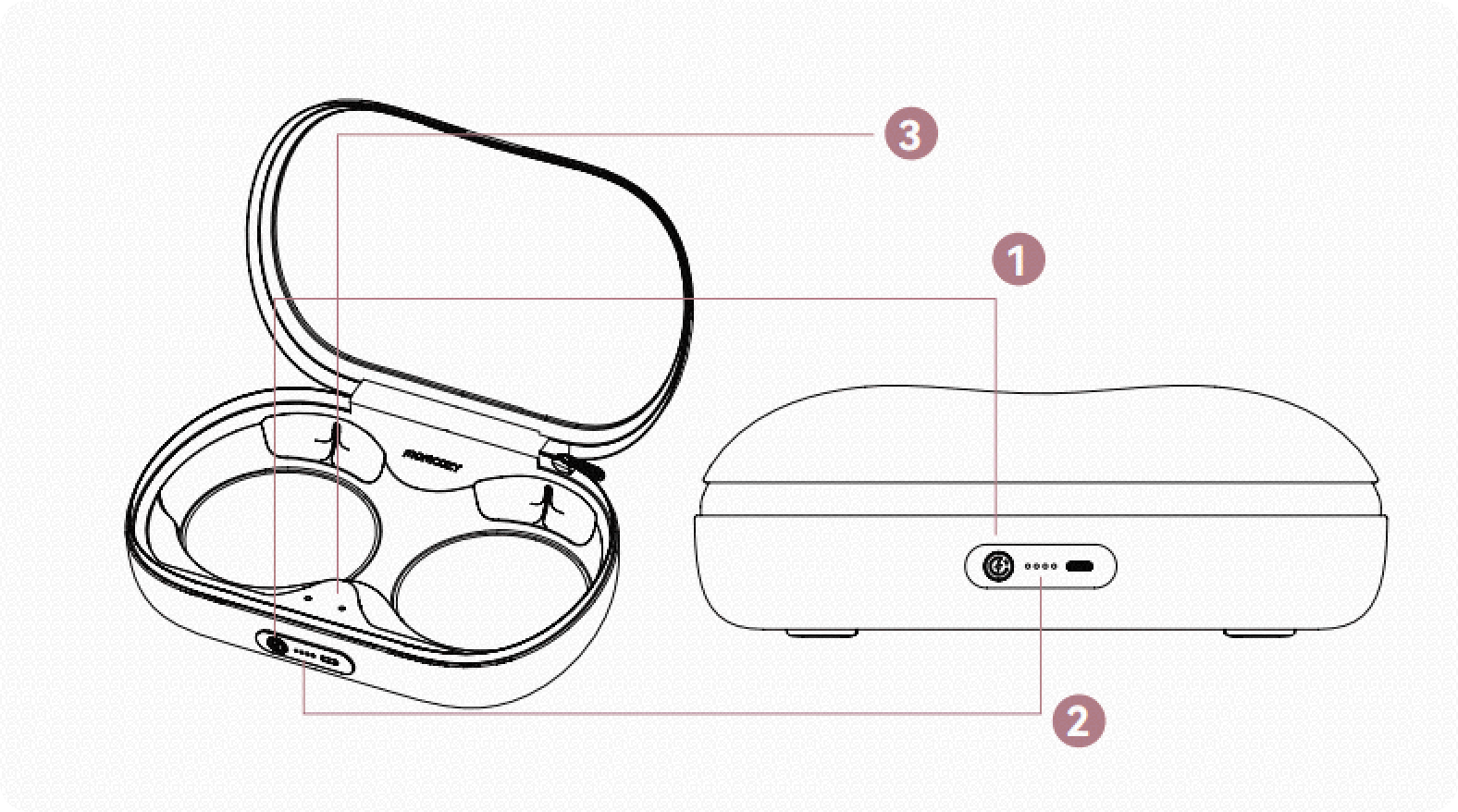

3.2.Charging case
Description Of Pump Charging case | ||
NO. |
Buttons and LEDS |
Description |
1 |
Short-press: on/off the battery indicator light. |
|
2 |
Charging Case Battery Indicators ·From left to right, the four lights indicate 25%, 50%, 75%, and 100% battery respectively. ·Charging one bar: cycles from 1st to 2nd to 3rd to 4th continuously. ·Charging two bars: 1st bar solid, cycles from 2nd to 3rd to 4th. ·Charging three bars: 1st and 2nd bars solid, cycles from 3rd to 4th flashing. ·Charging four bars: 1st, 2nd, and 3rd bars solid, 4th bar continuously flashing. ·When fully charged, all four indicators remain solid. ·When the first battery indicator barflashes, it means the battery is low |
|
3 |
Pump Charging Indicators ·light shining:Charging the breast pump ·light on:Fully charging the breast pump ·light off: Stop charging |
|
