M9 Introduction

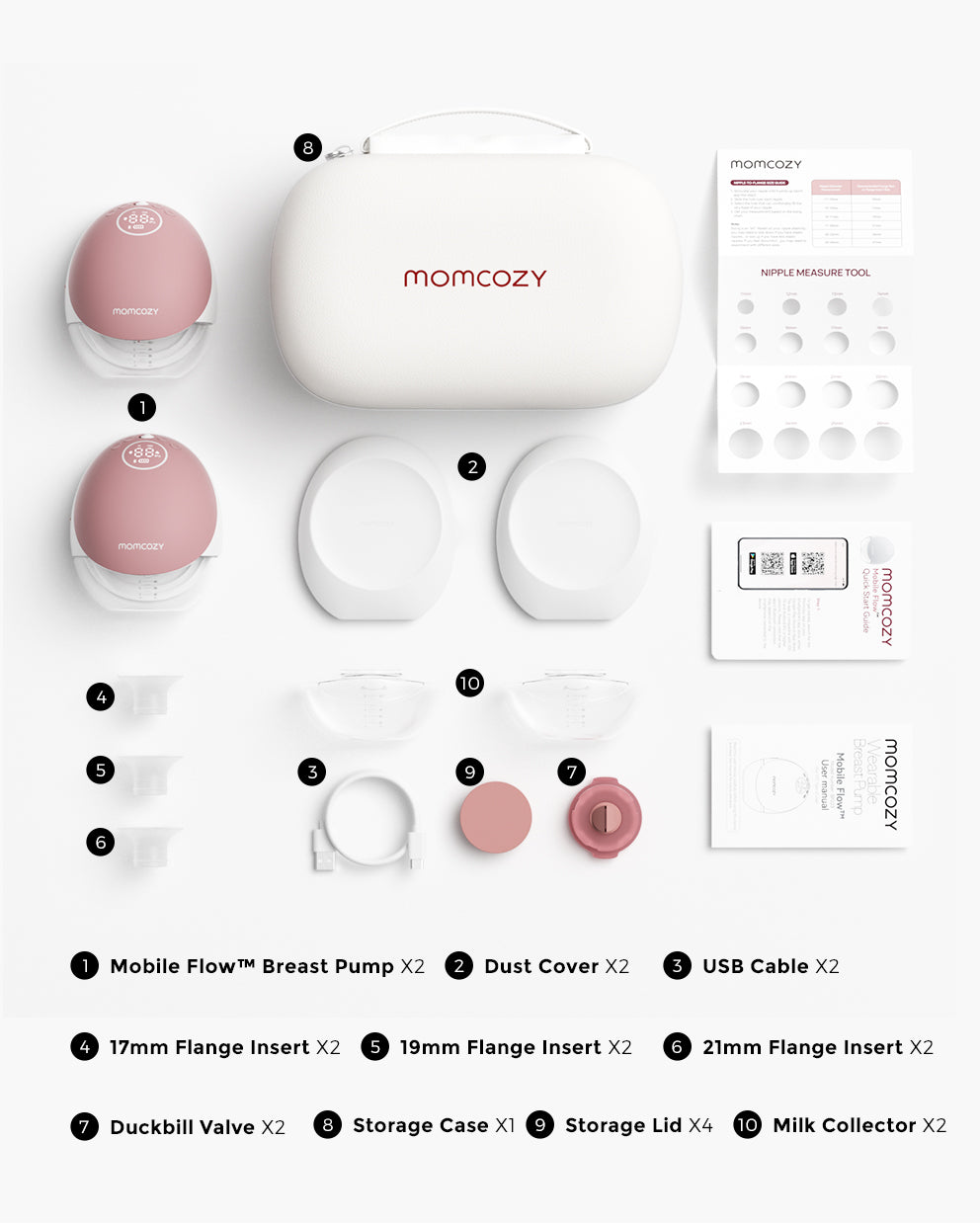

1.Product List
What's in the Box: M9 | ||
|---|---|---|
NO. |
Name of the item |
Quantity |
1 |
Mobile Flow TM Breast Pump |
2 |
2 |
Dust Cover |
2 |
3 |
USB Cable |
2 |
4 |
17mm Flange Insert |
2 |
5 |
19mm Flange Insert |
2 |
6 |
21mm Flange Insert |
2 |
7 |
Duckbill Valve |
2 |
8 |
Storage Case |
1 |
9 |
Storage Lid |
4 |
10 |
Milk Collector |
2 |
11 |
Flange Size Ruler |
1 |
12 |
Quick Start Guide |
1 |
13 |
User Manual |
1 |

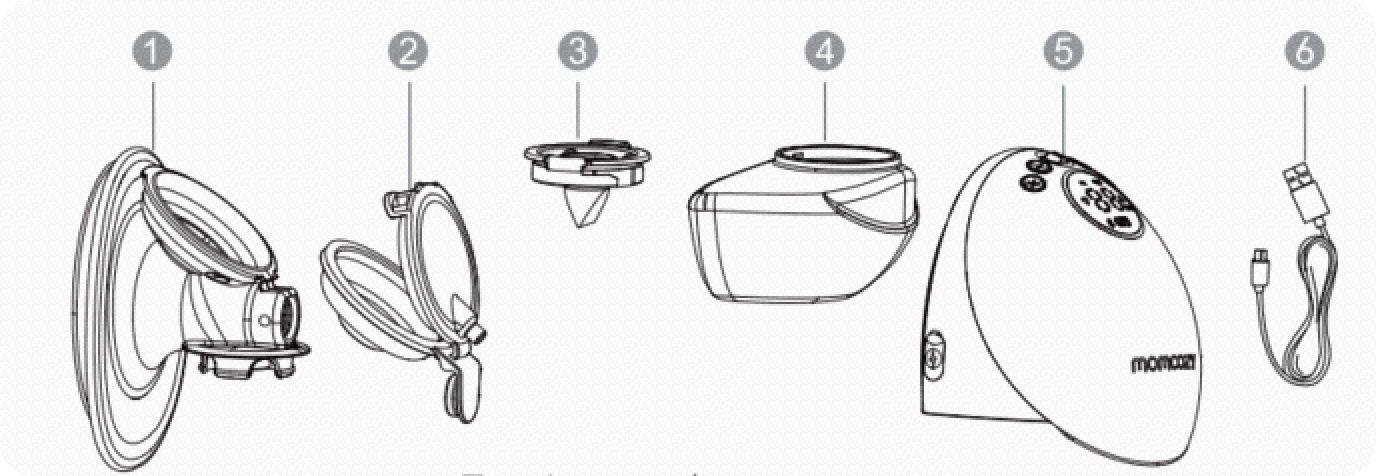

2.Unit Description
Description Of Breast Pump Unit | ||
NO. |
Item |
Description |
1 |
Double-sealed flange(24mm) | All of these components make up the milk collection set |
2 |
Diaphragm | |
3 |
Valve | |
4 |
Milk collector (150ml) | |
5 |
Main unit | Pump motor |
6 |
USB Type-C cable | Input end is USB 2.0 interface, the output end is Type-C interface |
3.Appearance and Functionality

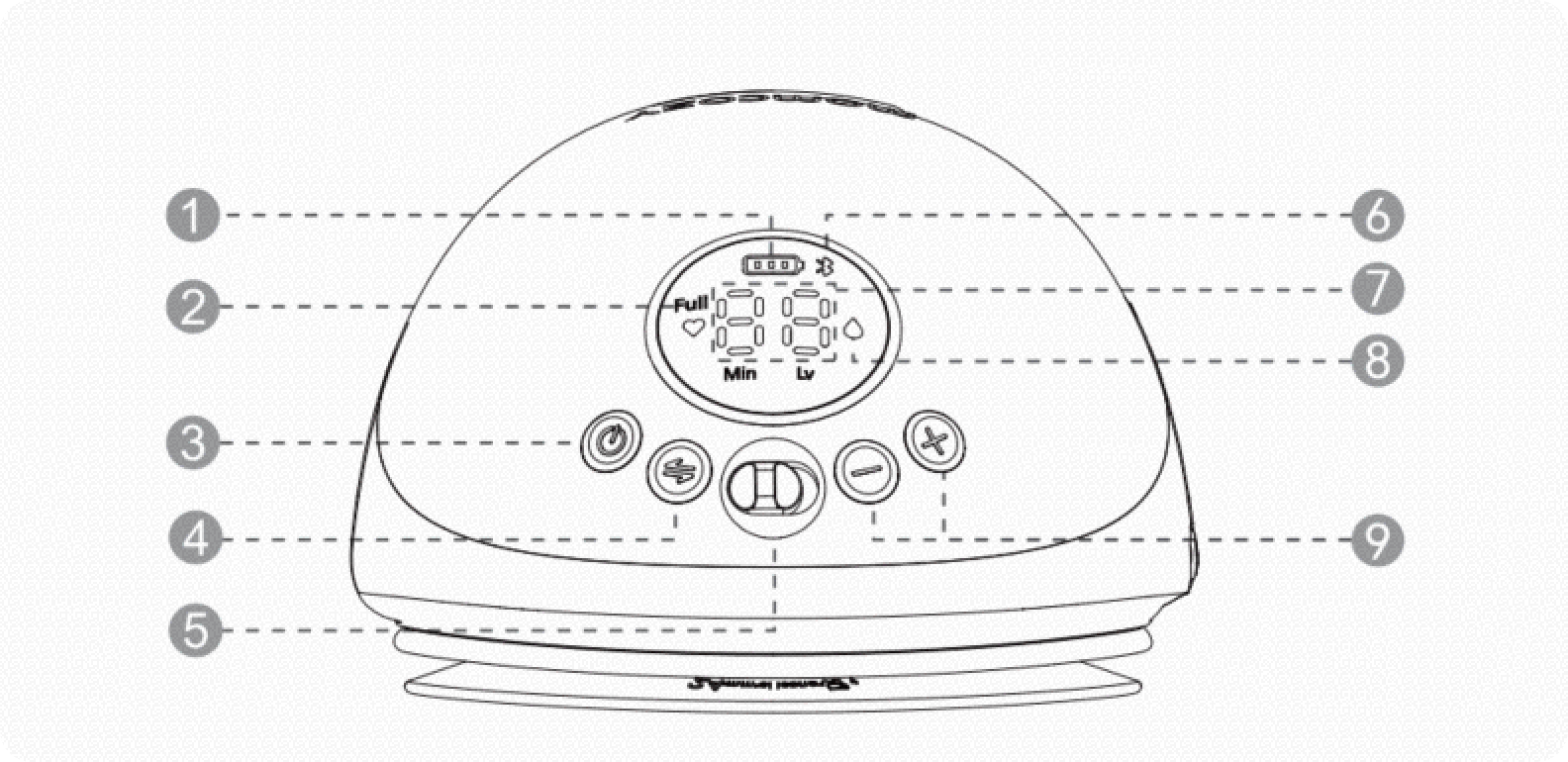

3.1.Control Panel
Description Of Control Panel | ||
NO. |
Buttons and LEDS |
Functions |
1 |
Battery Display | |
2 |
Milk Overflow Reminder | |
3 |
On/Off; Pause/Continue: Long-press to turn on/ off the device; Short-press to pause/ continue the device2 |
|
4 |
Mode Selection | |
5 |
Switching Direction | |
6 |
Bluetooth Indicator | |
7 |
Running Time Display：Seconds displayed ifshorter than 1 minute Suction Level Display：The breast pump has 15 suction levels to choose from. |
|
8 |
Mode Indicator |
|
9 |
|
Increase/Decrease suction strength |
First Use
For first-time use, watch this video carefully: How to use Momcozy M9 Wearable Breast Pump
