M5 Introduction
1.Product List
What's in the Box: M5 | ||
NO. |
Name of the item |
Quantity |
1 |
M5 Breast Pump |
2 |
2 |
Dust Cover |
2 |
3 |
USB Cable |
2 |
4 |
17mm Flange Insert |
2 |
5 |
19mm Flange Insert |
2 |
6 |
21mm Flange Insert |
2 |
7 |
Duckbill Valve |
2 |
8 |
Storage Case |
1 |
9 |
Flange Size Ruler |
1 |
10 |
Quick Start Guide |
1 |
11 |
User Manual |
1 |

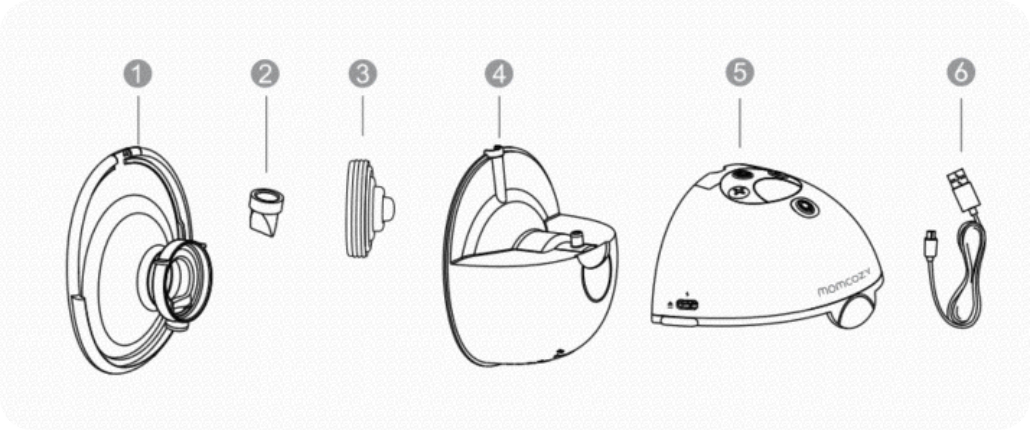

2.Unit Description
Description Of Breast Pump Unit | ||
NO. |
Item |
Description |
1 |
24mm Double-sealed flange | All of these components make up the milk collection set |
2 |
Valve | |
3 |
Diaphragm | |
4 |
Milk collector (160ml) | |
5 |
Main unit | Pump motor |
6 |
USB Type-C cable | Input end is USB 2.0 interface, the output end is Type-C interface |
3.Appearance and Functionality

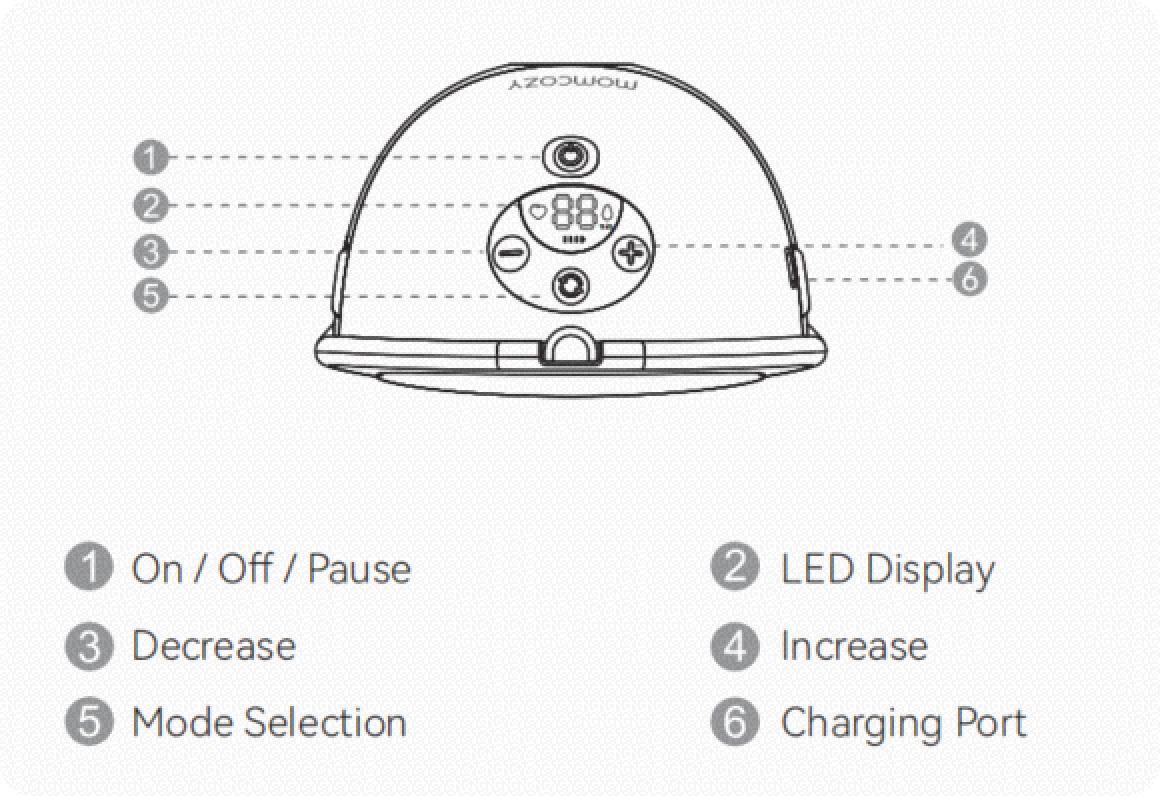

3.1.Control Panel
Description Of Control Panel | ||
NO. |
Buttons and LEDS |
Functions |
1 |
Long press and hold to turn on / off; Short press to pause, then press any button to continue your pumping session. |
|
2 |
Mode selection | |
3 |
Decrease suction strength | |
4 |
Increase suction strength | |
5 |
Stimulation Mode: In this mode, the breast pump begins with a quick and short sucking pattern to get your milk to start flowing. | |
6 |
Expression Mode: The breast pump begins with a slow sucking pattern for milk expression, sucking more deeply and more slowly | |
7 |
Mixed Mode: In this mode, the breast pump begins with a quick and short sucking pattern followed by a slow and long sucking pattern. | |
8 |
Suction Level Display: The breast pump has 9 suction levels to choose from. Running Time Display: 00-29min (the pump will shut off automatically after 30 minutes.) | |
First Use
For first-time use, watch this video carefully: How to use Momcozy M5 Wearable Breast Pump
