V1 Pro Introduction
1.Product List

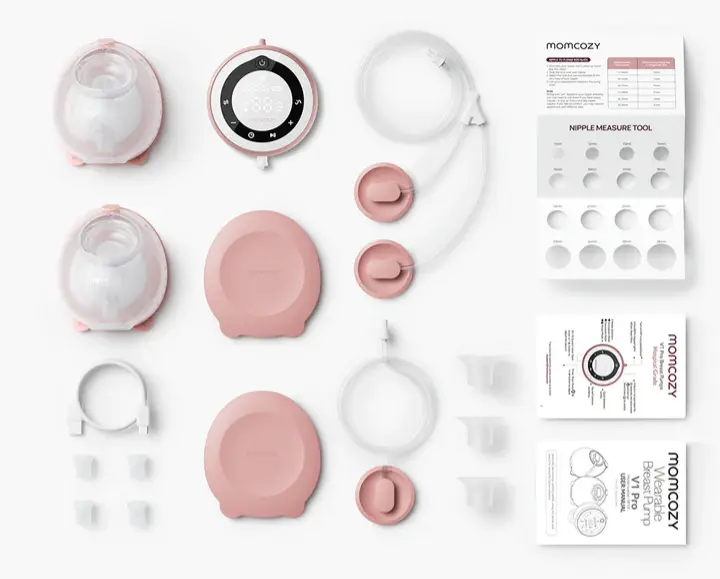

What's in the Box: V1 Pro | ||
NO. |
Name of the item |
Quantity |
1 |
Pump Motor |
1 |
2 |
Milk Collector |
2 |
3 |
Tubing |
2 |
4 |
Flange Cover |
2 |
5 |
Flange Insert (17mm) |
2 |
6 |
Flange Insert (19mm) |
2 |
7 |
Flange Insert (21mm) |
2 |
8 |
Double-sealed Flange (24mm) |
2 |
9 |
USB Type-C Cable |
1 |
10 |
Quick Start Guide |
1 |
11 |
Valve |
4 |
12 |
Nipple Ruler |
1 |
13 |
User Manual |
1 |
2.Unit Description
The product is mainly composed of main unit and milk collection set.

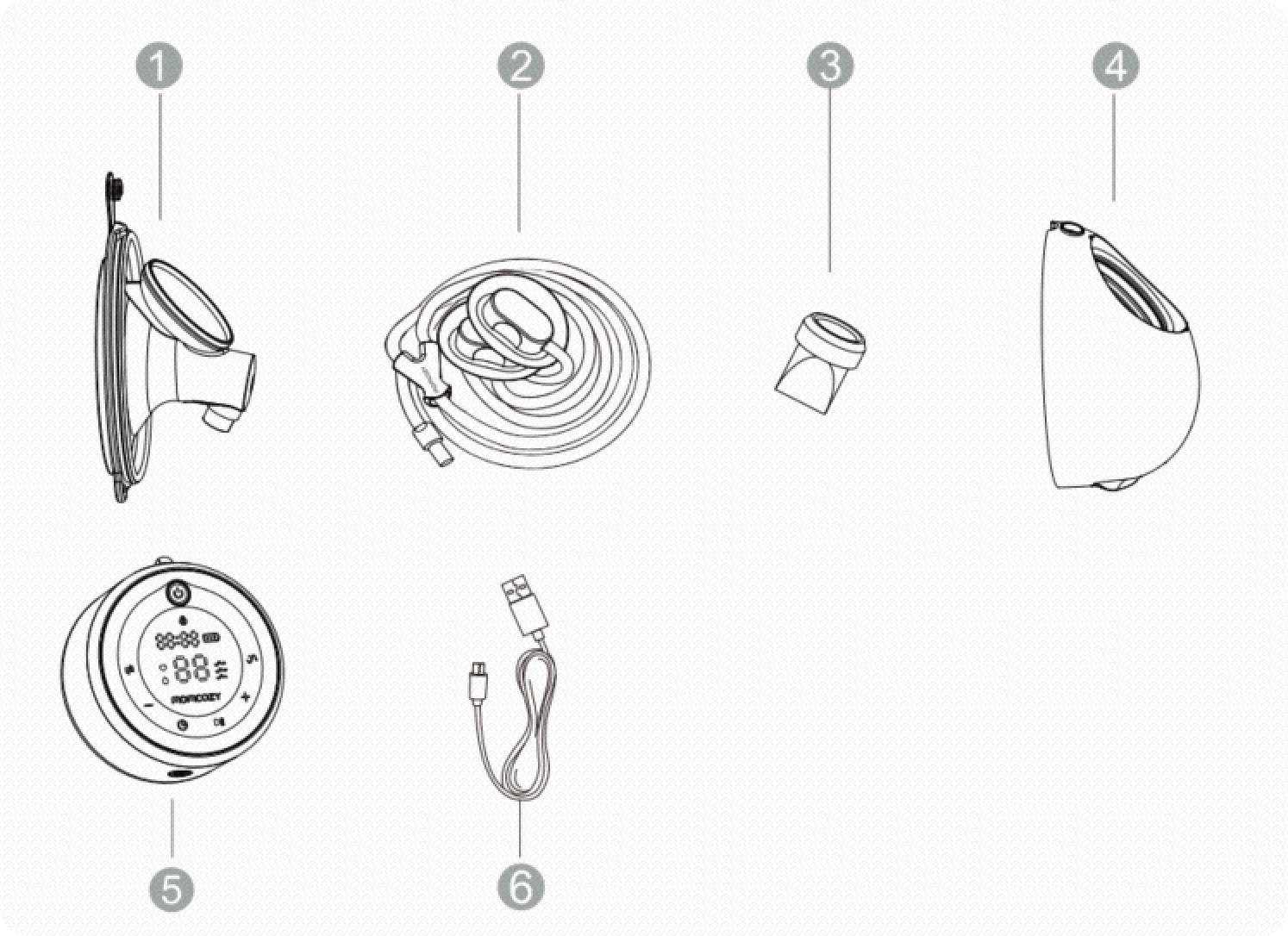

Description Of Breast Pump Unit | ||
NO. |
Item |
Description |
1 |
Double-sealed flange(24mm) | All of these components make up the milk collection set |
2 |
Tubing | |
3 |
Valve | |
4 |
Milk collector | |
5 |
Main unit | Pump motor |
6 |
USB Type-C cable | Input end is USB 2.0 interface, the output end is Type-C interface |
3.Appearance and Functionality

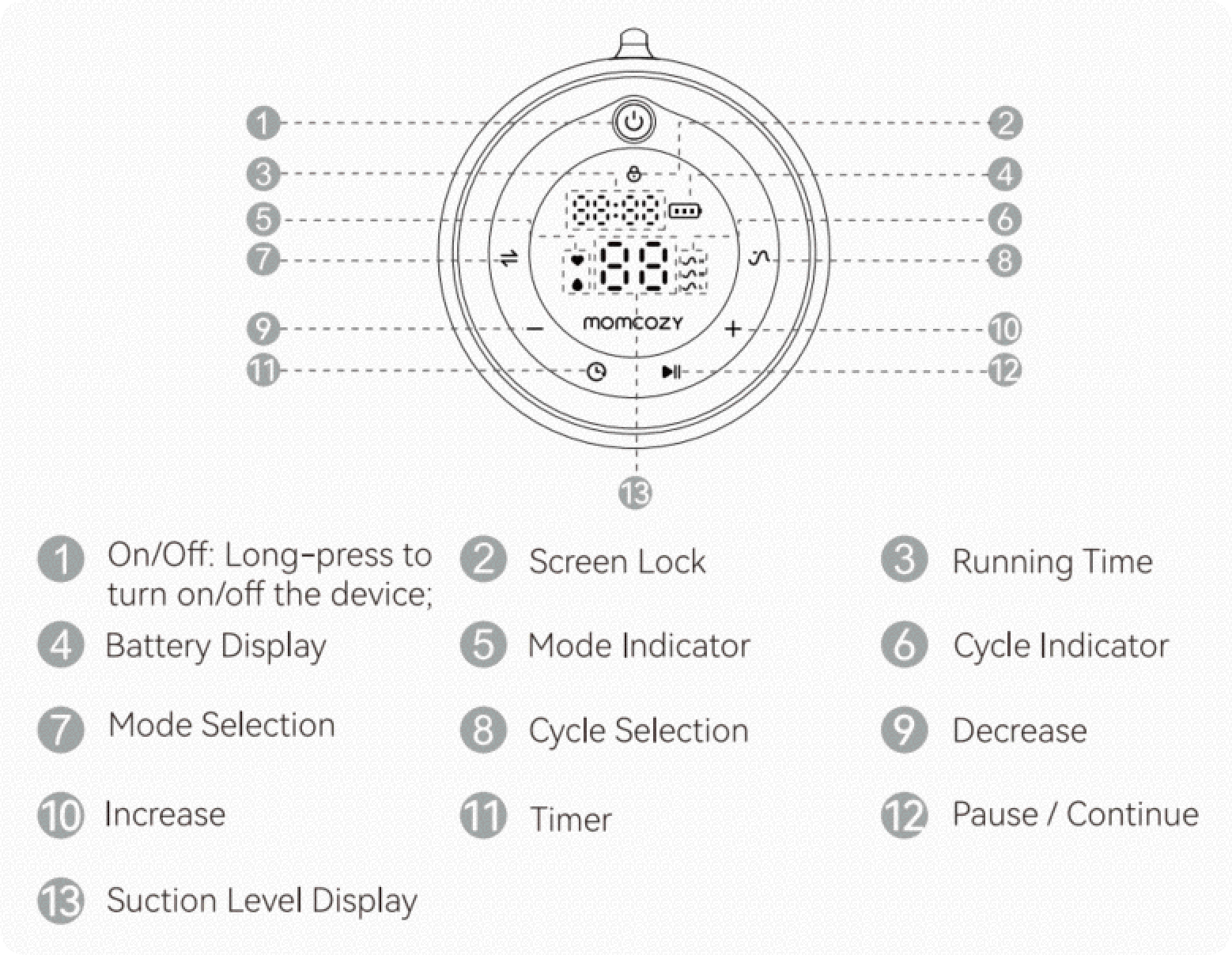

3.1.Control Panel
Description Of Control Panel | |
Buttons and LEDS |
Functions |
|
Long-press to turn on/off the device; Short-press to put the screen to sleep and press any button to activate the screen. |
|
| Pause/Continue your pumping session. | |
| Mode selection | |
| Decrease suction level | |
| Increase suction level | |
| Stimulation Mode: In this mode, the breast pump begins with a quick and short sucking pattern to get your milk to start flowing. | |
| Expression Mode: The breast pump begins with a slow and long sucking pattern for milk expression, where the suction is deeper. | |
| Mixed Mode: In this mode, the breast pump begins with a quick and short sucking pattern,followed by a slow and long sucking pattern. | |
| Running Time Display | |
| Screen Lock | |
| Cycle Selection | |
| Timer | |
First Use
For first-time use, watch this video carefully: How to use Momcozy V1 Pro Wearable Breast Pump
