This article contains the following sections:
1.Disassembly for Cleaning:
To ensure proper hygiene, it's essential to disassemble your breast pump for thorough cleaning.

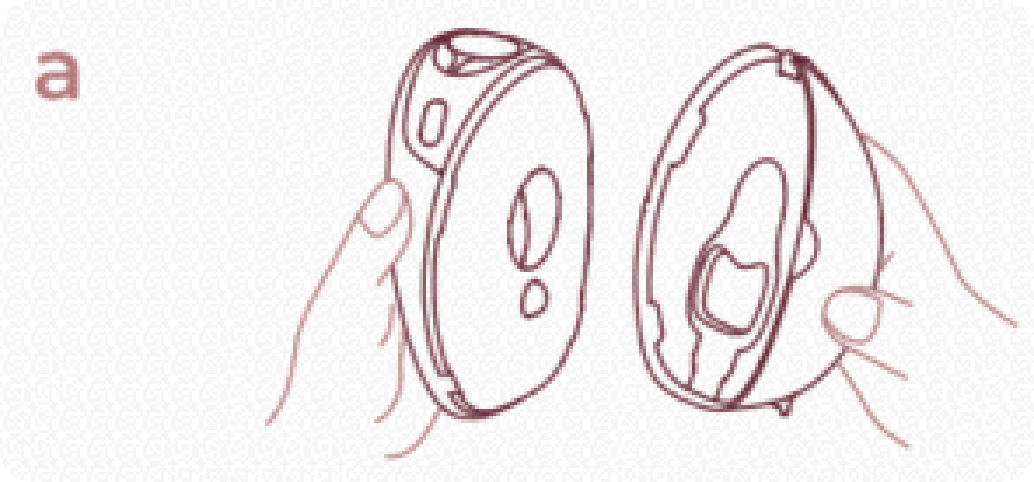

| Press both side release buttons to remove the milk collector | |

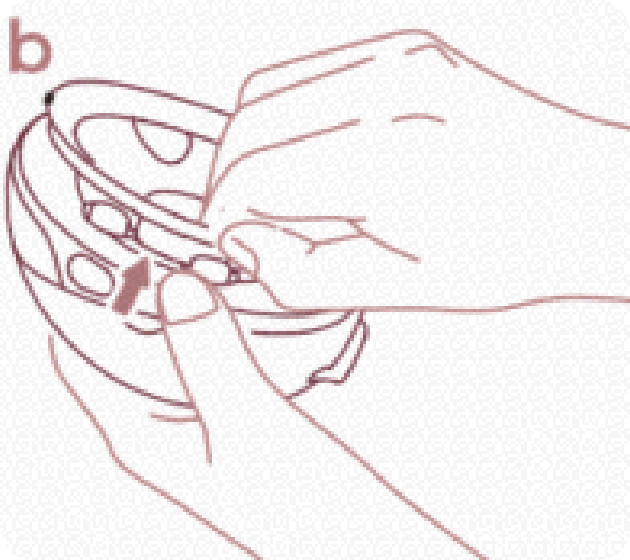

| Detach the flange from the pump. | |

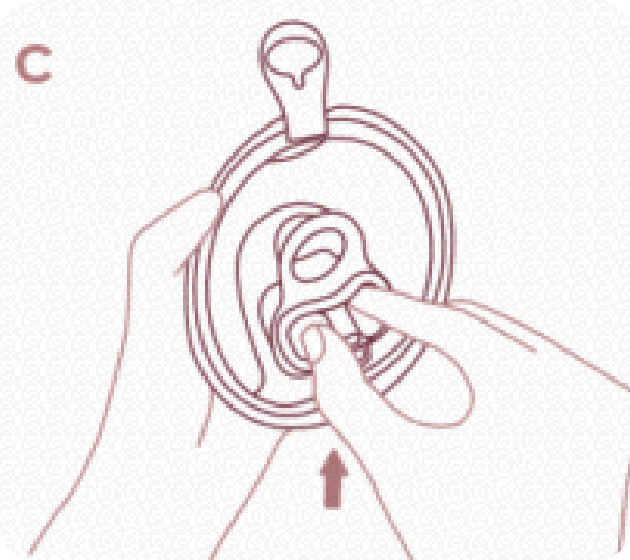

| Remove the diaphragm from the milk collector. | |

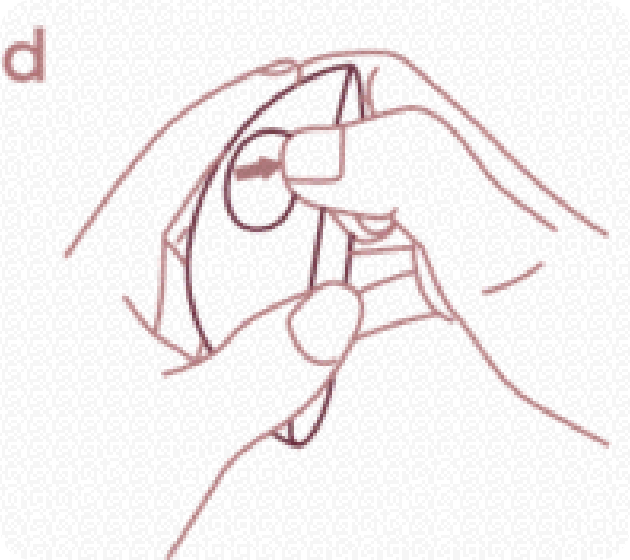

| Disassemble the milk collector. | |

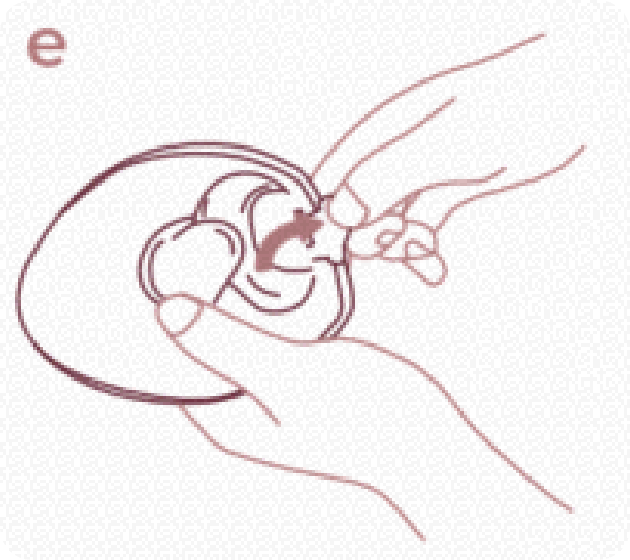

| Remove the valve from the milk collector. |

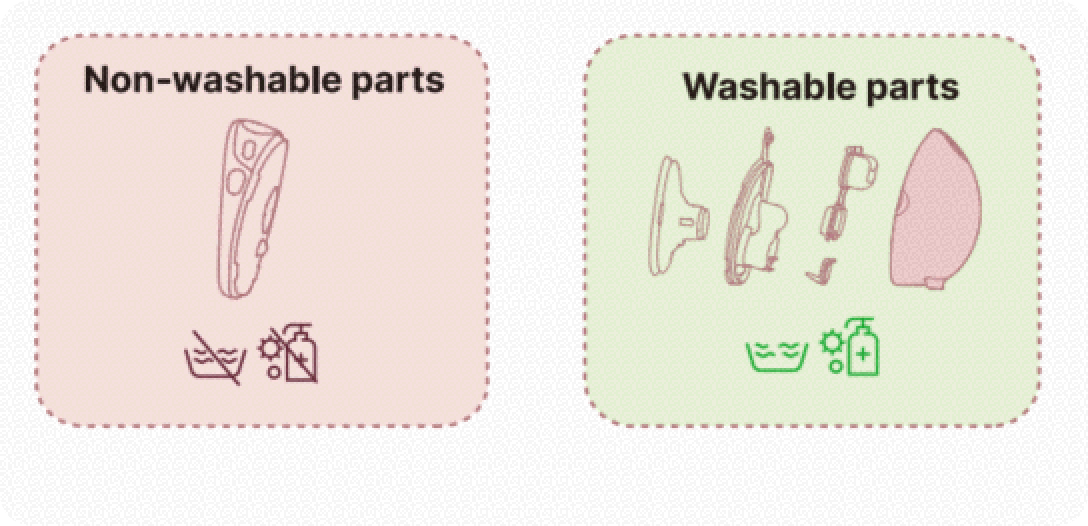

Non-washable parts: Pump Motor.
Washable parts:Flange,Diaphragm,Milk Collector,Valve.
2.Assembly for Use:
Before assembling, ensure all parts that come into contact with milk or your breast have been thoroughly cleaned and disinfected. Be careful, when you have disinfected the breast pump parts by boiling them, they can be very hot. To prevent burns, only start assembling the breast pump when disinfected parts have cooled down. Always wash your hands thoroughly with soap and water before you touch breast pump parts and breasts to prevent contamination. Avoid touching the inside of milk collection set.
Here are assembly steps:

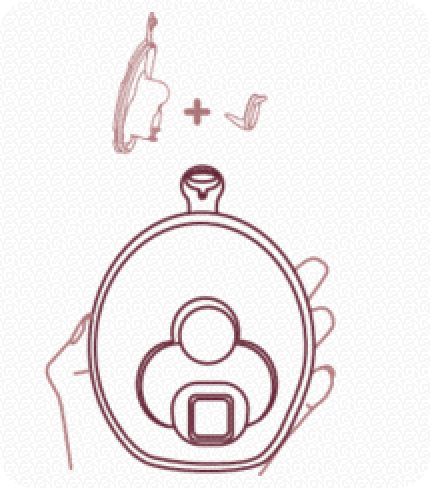

| Assemble the valve to the milk collector and ensure it is properly installed. | |
| Assemble the milk collector and ensure the front and back covers installed correctly. | |

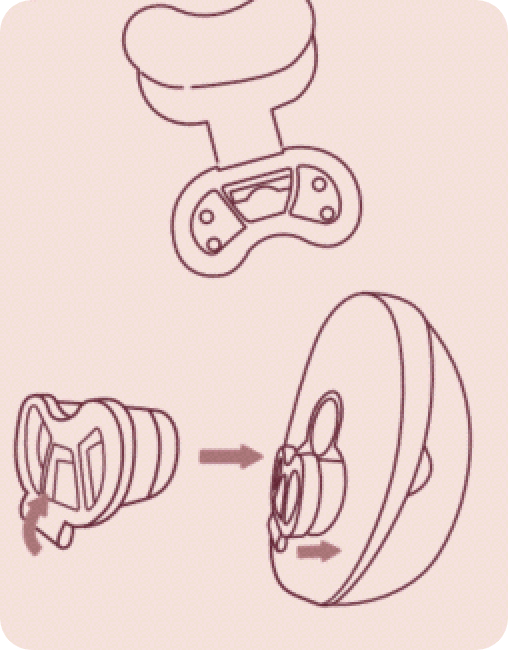

| Make sure the diaphragm is completely dry. Always snap the diaphragm cover onto the silicone first, then attach it to the milk cup lid to prevent air leakage. |
|

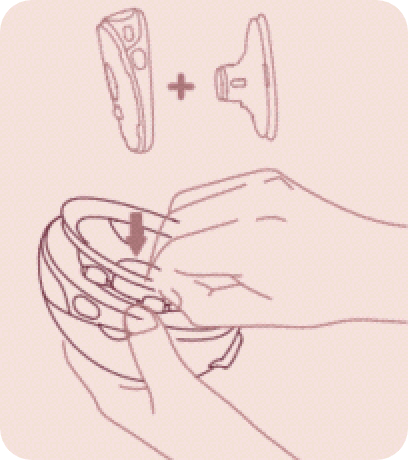

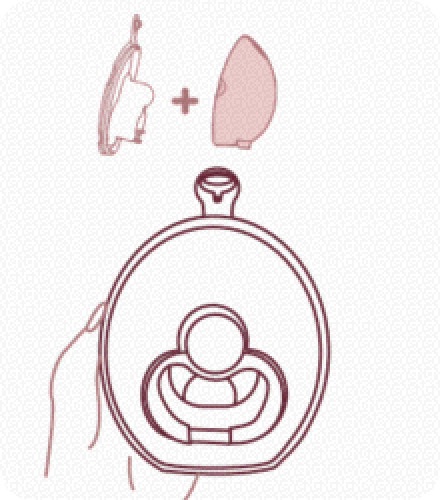

| Assemble the pump motor and the flange tightly and properly to ensure no air leakage, otherwise there will be no suction. | |

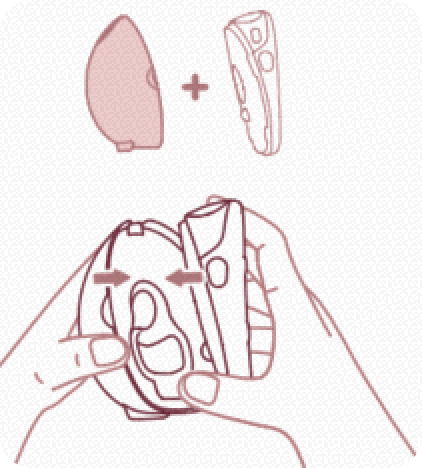

| Attach the pump motor to the milk collector, ensure it's properly aligned and securely installed. |
Your breast pump is now ready for use!
