This article contains the following sections:
3.Appearance and Functionality
Wellness1 Introduction

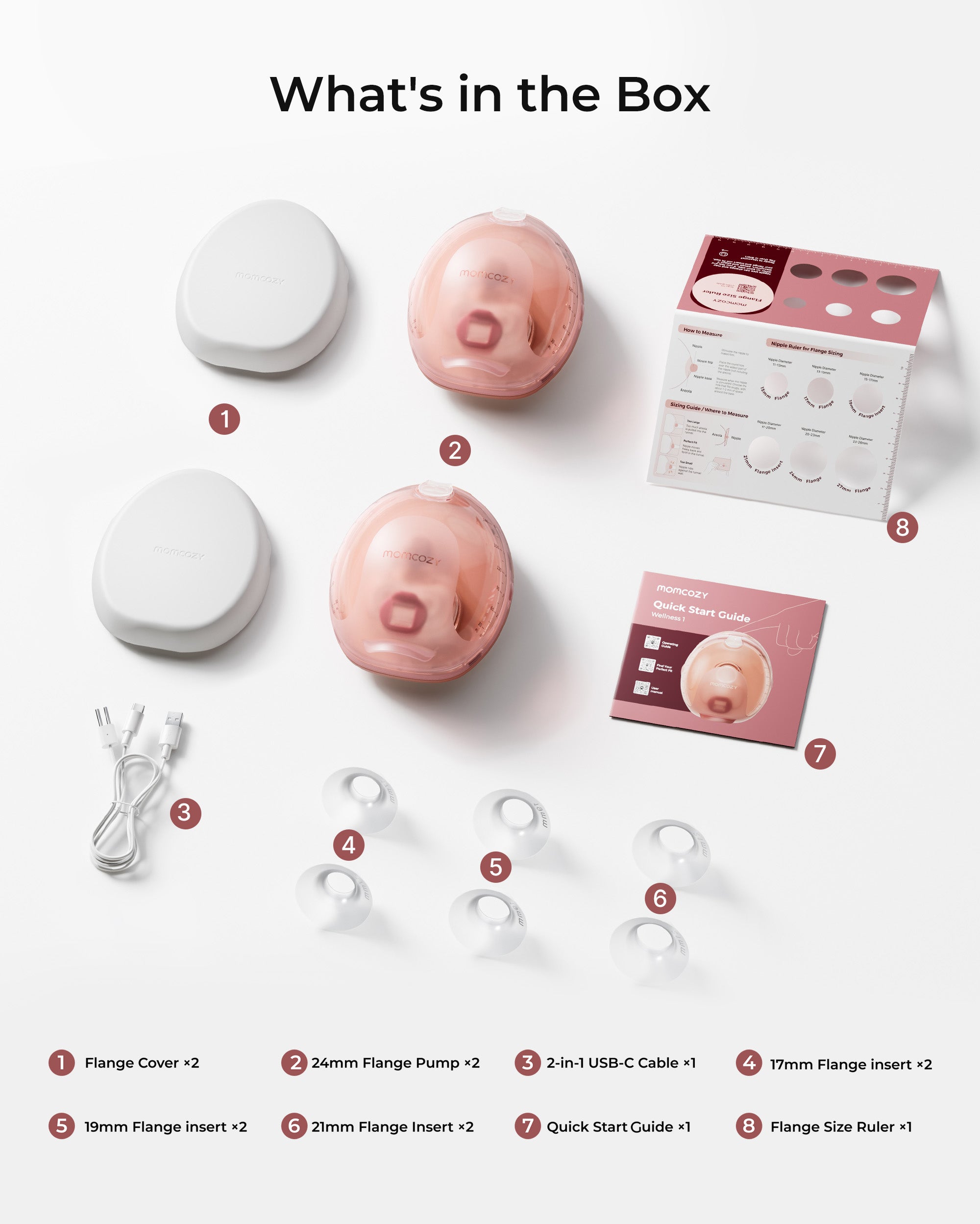

1.Product List
What's in the Box: Wellness 1 | ||
NO. |
Name of the item |
Quantity |
1 |
Flange Cover |
2 |
2 |
24mm Flange Pump |
2 |
3 |
2-in-1 USB-C Cable |
1 |
4 |
17mm Flange insert |
2 |
5 |
19mm Flange insert |
2 |
6 |
21mm Flange insert |
2 |
7 |
Quick Start Guide |
1 |
8 |
Flange Size Ruler |
1 |

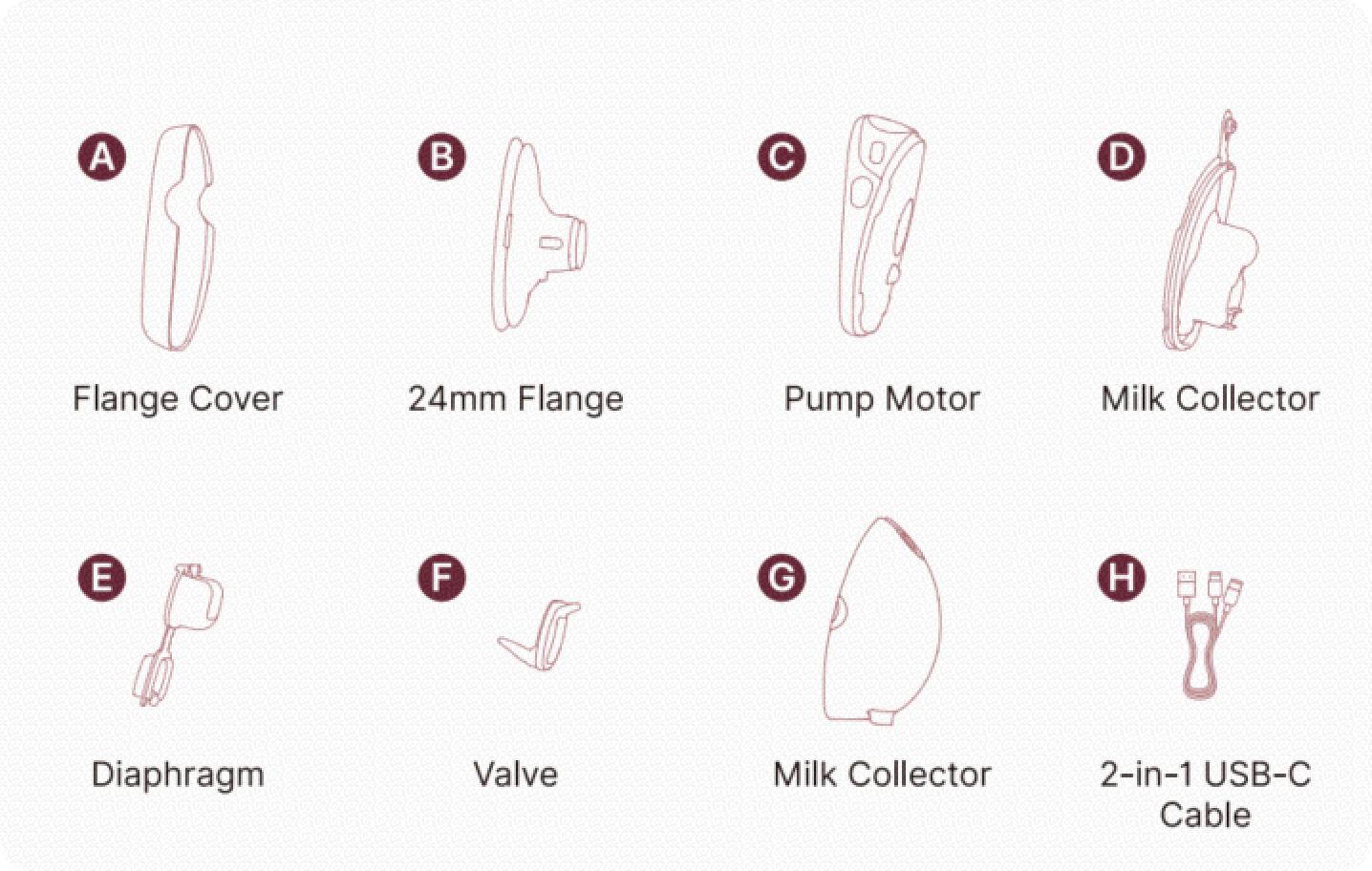

2.Unit Description
Description Of Breast Pump Unit | ||
NO. |
Item |
Description |
A |
Flange Cover |
All of these components make up the milk collection set |
B |
24mm Flange |
|
C |
Pump Motor |
Main unit |
D |
Milk Collector |
All of these components make up the milk collection set |
E |
Diaphragm |
|
F |
Valve |
|
G |
Milk Collector |
|
H |
2-in-1 USB-C Cable |
Charge the breast pump main unit |
3.Appearance and Functionality

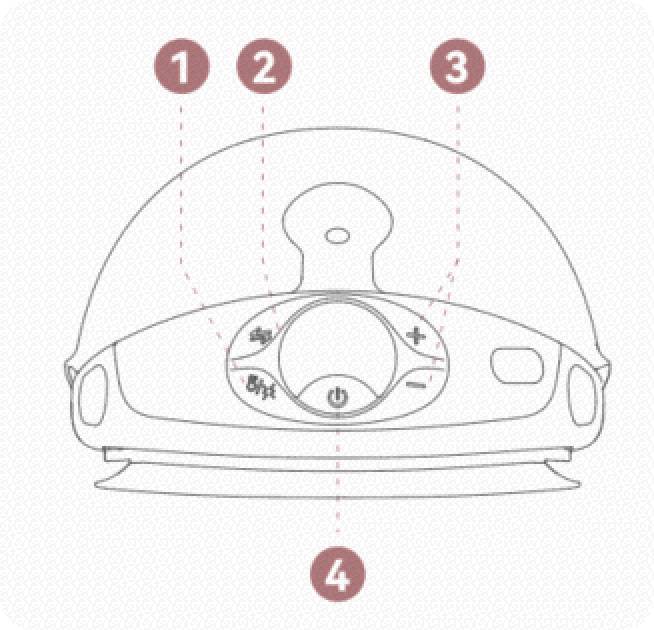

3.1.Control Panel
Description Of Control Panel | |||
NO. |
Buttons and LEDS |
Functions |
Description |
1 |
Warm / Massage |
*Adjust the level within 10 seconds using +/-, or long press the *Warm / Massage will not start if the flange is not installed preoperly |
|
2 |
Mode Selection |
|
|
3 |
Increase / Decrease Level |
*Warm: L1 (37°C / 99°F) - L2 (39°C / 102°F) - L3 (41°C / 106°(F) *Massage: L1 (Gentle) - L2 (Moderate) - L3 (Intense) |
|
4 |
On/ Off; Pause / Continue |
|
|

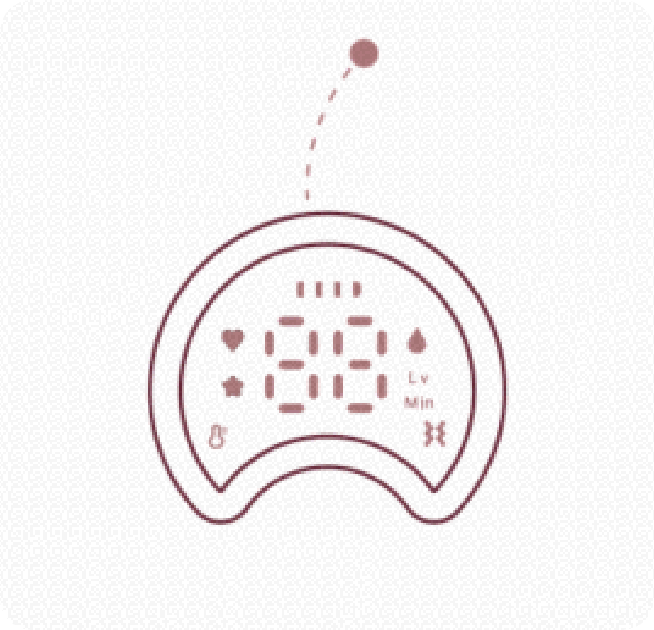

3.2.Display Indicators
Description Of Display Indicators | ||
NO. |
Icon |
Description |
1 |
Battery Display |
|
2 |
Stimulation Mode：In this mode, the breast pump begins with a quick and short sucking pattern to get your milk to start flowing. | |
3 |
Expression Mode：The breast pump begins with a slow sucking pattern for milk expression, sucking more deeply and more slowly | |
4 |
Mixed Mode：In this mode,the breast pump begins with a quick and short sucking pattern followed by a slow and long sucking pattern. | |
5 |
Warm：In this mode, the breast pump gently warms the flange to provide soothing heat to the breast,enhancing comfort during pumping. | |
6 |
Massage：In this mode,the breast pump uses gentle Massage to stimulate the breast ducts, helping promote letdown and support milk flow. | |
7 |
Session Duration |
|
8 |
Suction Level |
|
9 |
Suction Level 1-12 Session Duration / Warm/ Massage Level L1/L2/L3 |
|
10 |
Milk Boost：2min Stimulation + 8min Expression +2min Stimulation + 8min Expression +2min Stimulation + 8min Expression |
|
Description of Battery Level indicator | |
| Low Battery: Blinking | |
| In Charging：Lights up one by one | |
| Fully Charged：Stays on solid | |
After the battery is depleted and the device automatically shutsdown, it cannot operate again and can only display a low battery status.
