Introduction

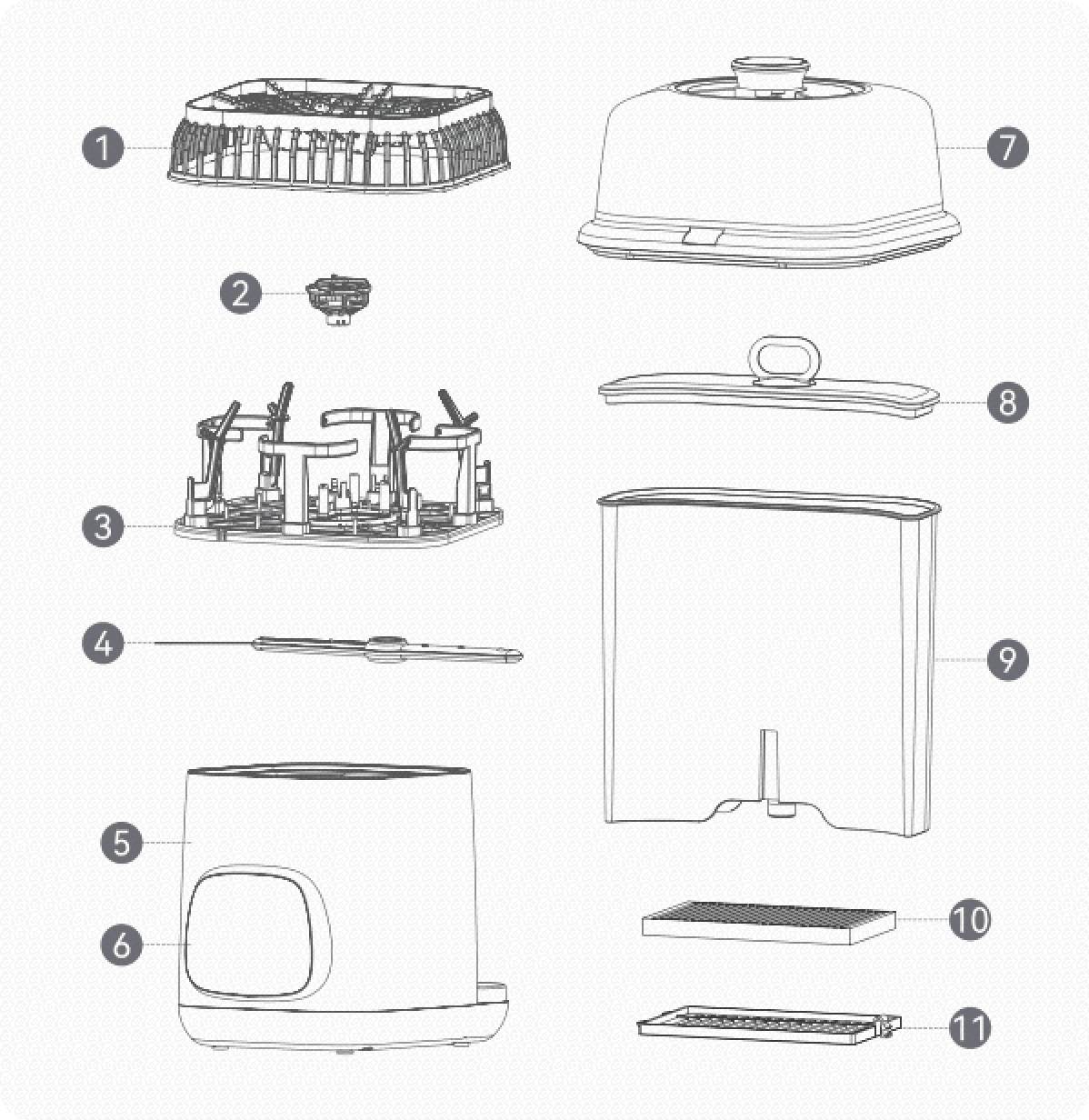

1.Main structural components
Description Of Product Strutural | ||
NO. |
Item |
Description |
1 |
Upper shelf | Used to place small items that need to be cleaned, such as nipples, bottle caps, small toys, flanges, etc. |
2 |
Upper spray arm | Spray pressurized water to clean the inner and outer walls of items, achieving all-round cleaning, enhancing the cleaning effect, and effectively removing stains. |
3 |
Lower shelf | Used to place bottles or cups that need to be cleaned, as well as to hang accessories that need to be cleaned such as nipples and flanges. Allocate space reasonably. |
4 |
Lower spray arm | There is an oblique water outlet under one side of the lower water spray arm. After the water pump injects water into the spray arm from the middle water column, part of the water flow will rush out from this outlet, forming a thrust to drive the lower water spray arm to rotate. |
5 |
Machine body | It includes important components such as a control panel (PCBA circuit board), chips, heating modules, water pumps, and power jacks. |
6 |
Operation panel | set the cleaning mode as needed through the control panel, allowing the cleaning and disinfection machine to perform cleaning, disinfection, drying, and storage operations according to the mode program. |
7 |
Top cover | Prevent water from splashing during the cleaning process, and provide a relatively closed environment for disinfection, drying, and storage procedures to ensure that the internal environment is relatively sterile. |
8 |
Water tank cover | Water required for storing cleaning items. |
9 |
Water tank | |
10 |
Air filtration chip | The filter box with an H13 HEPA filter installed at the bottom of the cleaning machine can filter the air from the bottom air inlet, help the cleaning machine eliminate odors during storage, and keep the air inside the equipment fresh. |
11 |
Air filtration chip cover | |
2.Parts List
The product parts include one drain pipe and one supply cord.
Note: The appearance and color of the product are subject tothe actual object. The picture is for reference only.
Drain pipe: Discharges the cleaned sewage to ensure the interior of the equipment is clean and hygienic.
Equipped with a suction cup, which can be used to fix the position of the drain pipe.
Supply cord: Provides the electricity required for operation to ensure the stable operation of the equipment.
3.Other structures
Description Of Product Strutural | |
|
1)Ventilation holes The machine starts its internal fan to draw in and filter external air from the bottom. Then, the air is heated by the internal PTC ceramic heating elements and enters the inside of the machine and the bracket set pipes through the ventilation holes to dry the inside and outside of the baby bottles and other item |
|
|
2)Water Inlet After starting the functional program, the chip transmits information to start the water pump, drawing water from the water storage tank into the cleaning chamber. | |
|
3)Heating plate The built-in heating plate heats the cleaning water drawn in, facilitating better removal of stains. | |
|
4)Drainage hole/Water suction hole Built-in spaces on both sides: During the execution of the flushing function, cleaning water will be drawn into the space on one side of the interior by the built-in water pump. Then it is pumped into the middle column, enters each spray arm and spray column through the water outlets on the column, and then is sprayed out from their nozzles to clean the items. After flushing is completed, the sewage will be sucked into the space on the other side and flow out through the water outlet. The filter screen can filter out debris. | |

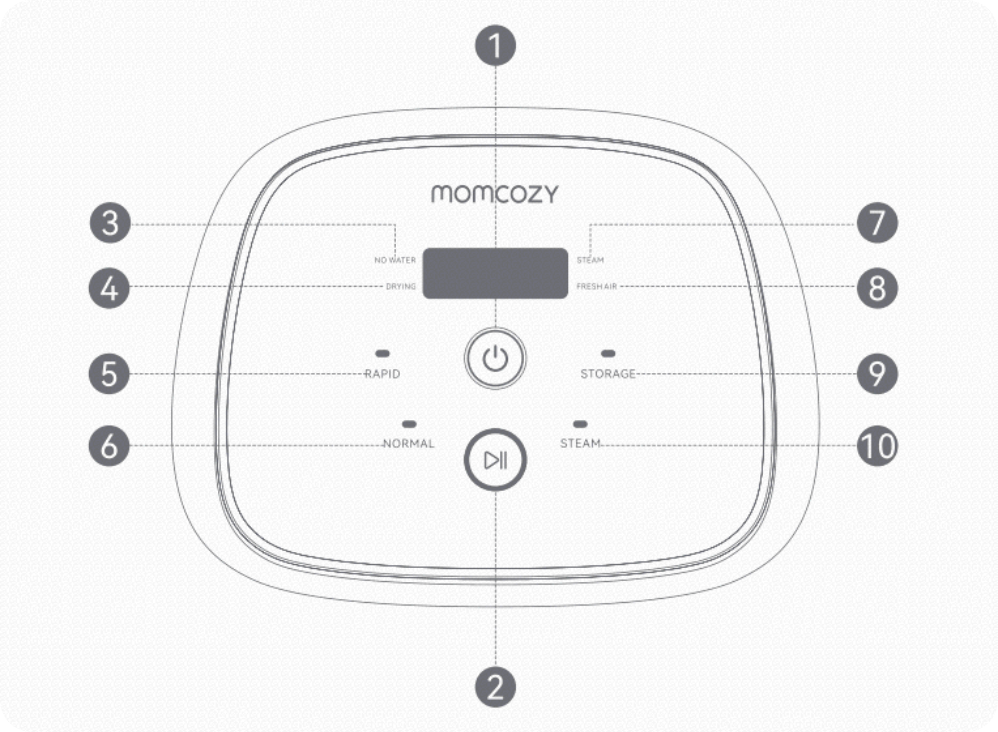

4.Control Panel
Description Of Control Panel | ||
NO. |
Item |
Description |
1 |
Power button | Press and hold for 2 seconds |
2 |
Start/Pause | Function start/stop: short press once |
3 |
Water shortage indicator | |
4 |
Drying | After each individual function is completed, the washing machine will automatically perform the drying function |
5 |
Rapid wash button | Mode selection/Stop: short press once |
6 |
Normal wash button | Mode selection/Stop: short press once |
7 |
Steam | Mode selection/Stop: short press once |
8 |
Fresh air | |
9 |
Storage | Mode selection/Stop: short press once |
10 |
Steam | Mode selection/Stop: short press once |
First Use
For first-time use, watch this video carefully: How to Use Momcozy Advanced Auto Baby Bottle Washer
