This article contains the following sections:
Monitor BM01 Introduction

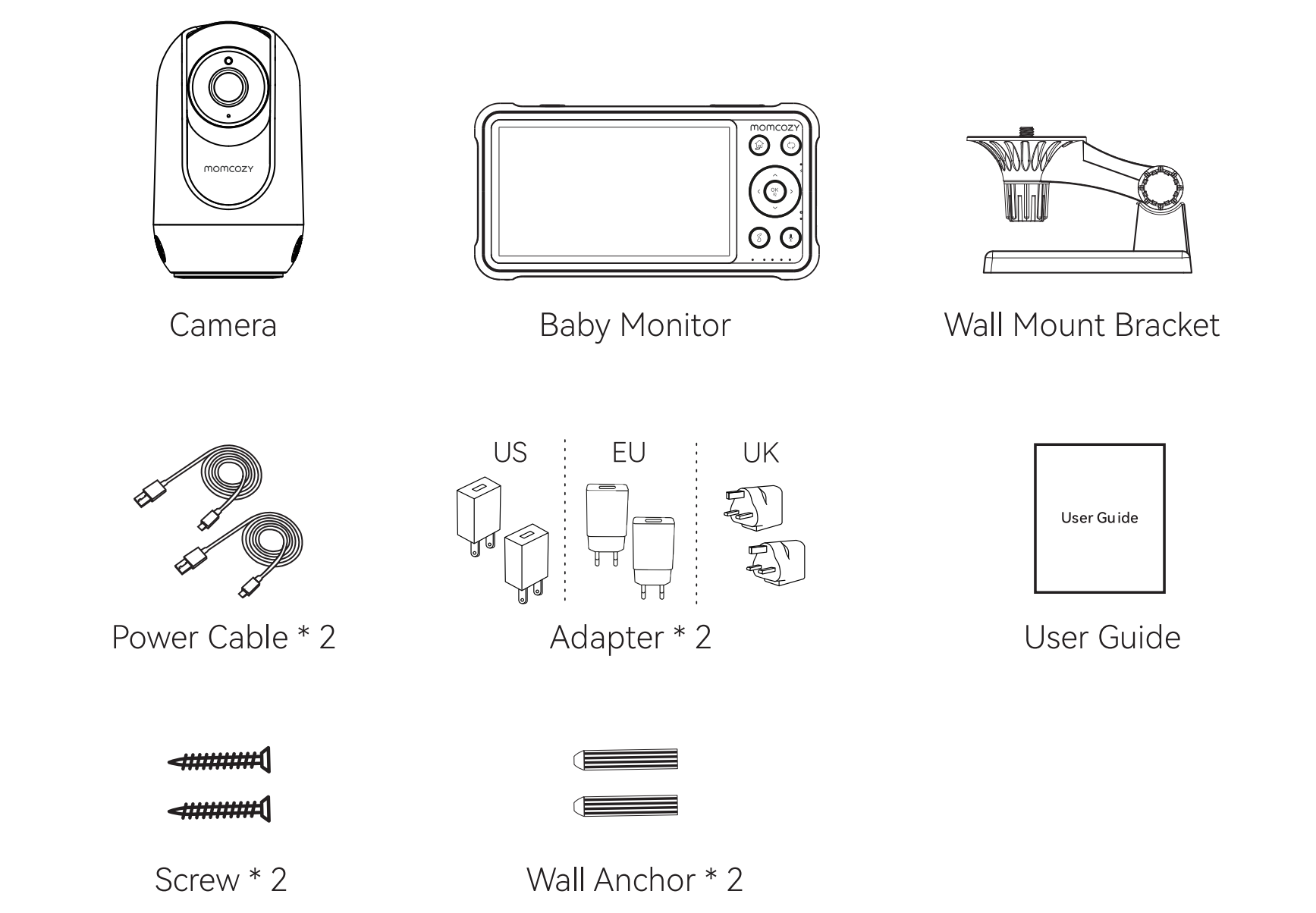

1.Package List
2. Appearance and Functions

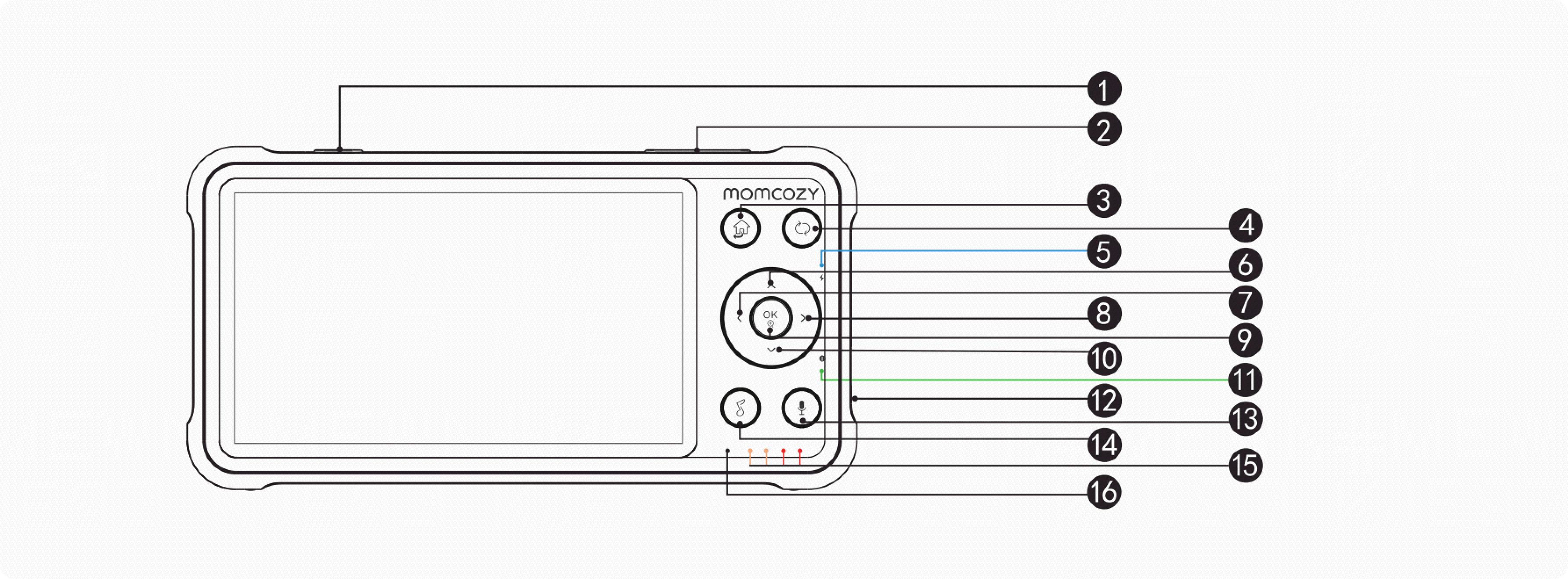

2.1 Monitor
NO. |
Item |
Description |
1 |
Power On/Off & LCD On/Off |
Press and hold for 3 seconds to turn on/off the monitor. Short press: Turn on/off the LCD screen. When the screen is turned on, press and hold for 8 seconds to reset the system |
2 |
Volume adjustment |
Press the left button to reduce the speaker volume, and press the right button to increase the speaker volume.(On the lullaby page, you can adjust the lullaby volume of the camera |
3 |
Menu |
Press ⇧ to enter/exit the menu |
4 |
Camera Switch |
Press ⟲ to switch to another camera if connected with two or more cameras |
5 |
Charging Indicator |
Solid blue during charging, and goes out when fully charged; Blinking red when the monitor is in a low power state |
6 |
Up Button |
Press ⮝ to move the camera upward or to change your selection upward |
7 |
Left Button |
Press ⮜ to move the camera leftward or to change your selection leftward |
8 |
Right Button |
Press ⮞ to move the camera rightward or change your selection rightward |
9 |
Confirm/Zoom Button |
Press ⓞ to zoom in/out to confirm your selection |
10 |
Down Button |
Press ⮟ to move the camera downward or change your selection downward |
11 |
Monitoring Status Indicator |
Green. When the camera is disconnected, it flashes slowly; when the camera enters pairing mode, it flashes quickly; when the camera is turned on, it remains steady |
12 |
Indicator |
a. The louder the sound is received by the monitor, the more indicator is on. b. Signal indicator (temperature alarm/off-connection alarm/feeding alarm) |
13 |
Talk |
Press 🎤 to talk to your baby |
14 |
Lullaby |
Press ♪ to select your desired lullaby song |
15 |
Indicator |
The louder the sound is received by the monitor, the more indicator is on. |
16 |
Microphone |
- |
17 |
Stand |
- |
18 |
Speaker |
- |

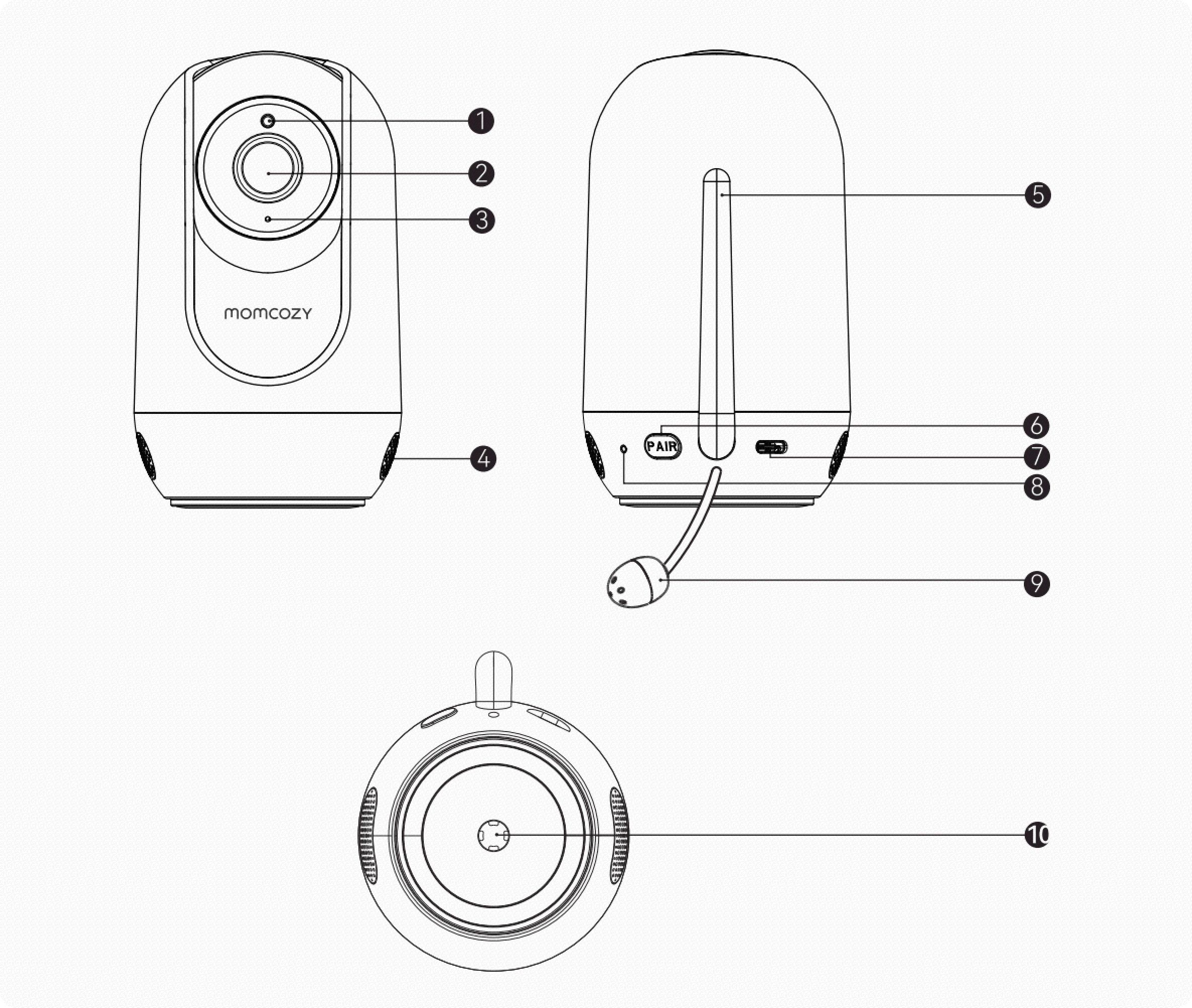

2.2 Camera
Function Description of Camera | ||
| 1 | Night Vision Sensor |
- |
| 2 | Camera Lens |
- |
| 3 | Microphone |
- |
| 4 | Speaker |
- |
| 5 | Antenna |
- |
| 6 | Pair Button |
Long press the button for 1 second, and the camera emits a "beep" sound, indicating the start of pairing (please place the devices at an appropriate distance during pairing) |
| 7 | Charging Port |
- |
| 8 | Signal Indicator Light |
a. Slow flashing blue light indicates: Signal searching. b. Fast flashing blue light indicates: Signal pairing. c. Steady blue light indicates: Pairing successful (light goes off after 3 minutes of successful pairing) |
| 9 | Temperature Sensor |
- |
| 10 | Threaded Socket |
- |
