Monitor BM03 Introduction

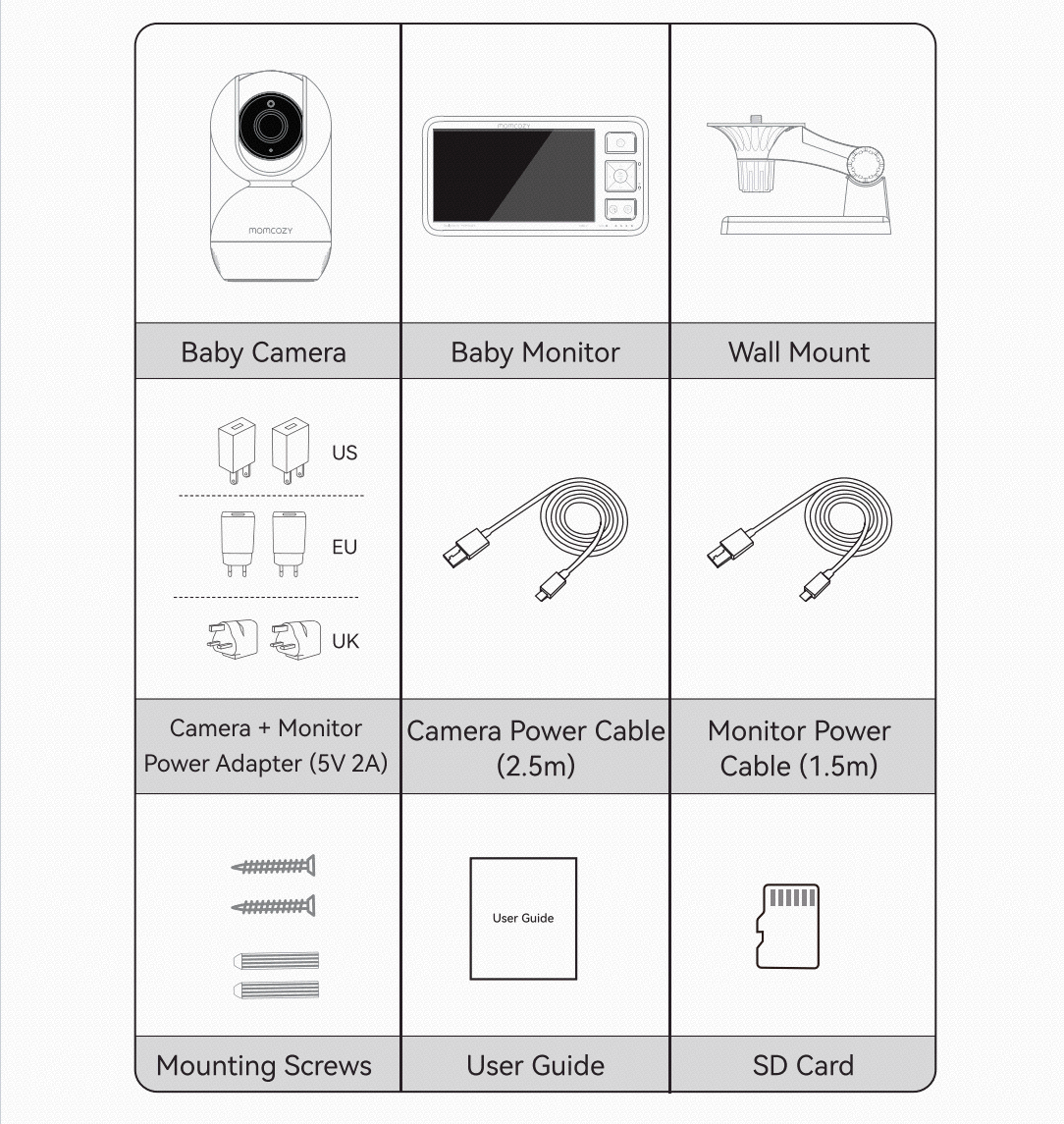

1.Package List
2. Appearance and Functions

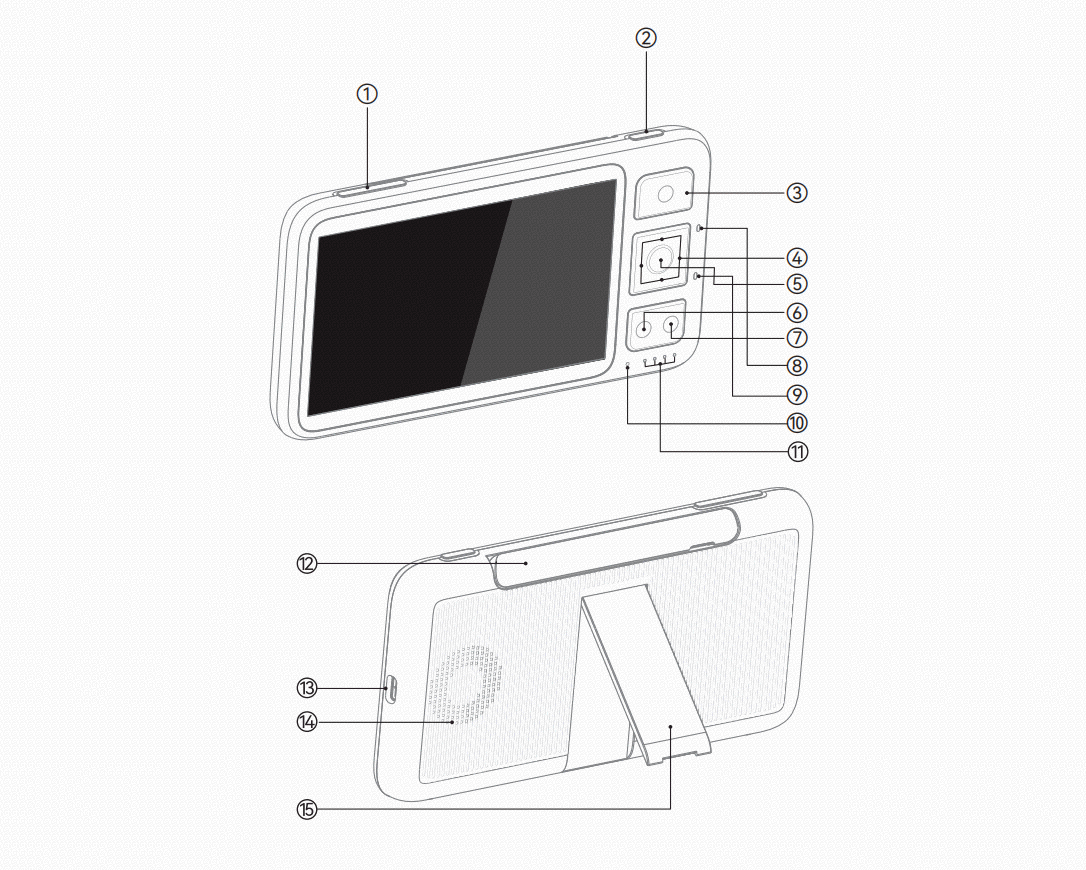

2.1 Monitor
| Description of Monitor | ||
1 |
Volume Button | Press + / – to adjust the monitor volume |
2 |
Power Button | Long press the button for 3 seconds to power on/off. Short press to turn on/off the screen |
3 |
Menu Button | Short press the Menu button to enter/exit the main menu |
4 |
Navigation Button | In the video screen, press up/down/left/right to control camera rotation. In the menu interface, it's used for menu selection |
5 |
OK/ZOOM Button | In the interface, short press the button to control 1X, 2X, 4X zoom. In the menu interface, short press the button to confirm menu selections |
6 |
Back/Talk Button | In the menu interface, short press the Back/Talk button to return to the previous interface. In any interface, long press the Back/Talk button to enable voice intercom |
7 |
Video/Photo Button | When the camera is inserted with a memory card, short press to capture a photo; long press for 3 seconds to enter/exit video recording |
8 |
Charging/Warning Indicator |
Steady white light indicates: Charging. White light off: Fully charged/Power disconnected. Steady red light indicates: Low battery. Flashing red light indicates: Temperature/sound warnings. |
9 |
Signal Connection Indicator |
Slow flashing blue light indicates: Waiting for pairing. Steady blue light indicates: Pairing successful (light goes off after 3 minutes of successful pairing). |
10 |
Microphone | / |
11 |
Sound Status Indicator | The indicator light flashes to represent the sound level at the camera end; the more lights, the louder the sound |
12 |
Monitor Antenna | It can be opened to enhance the signal when the signal is weak |
13 |
Charging Port | / |
14 |
Speaker | / |
15 |
Monitor Support Stand | / |

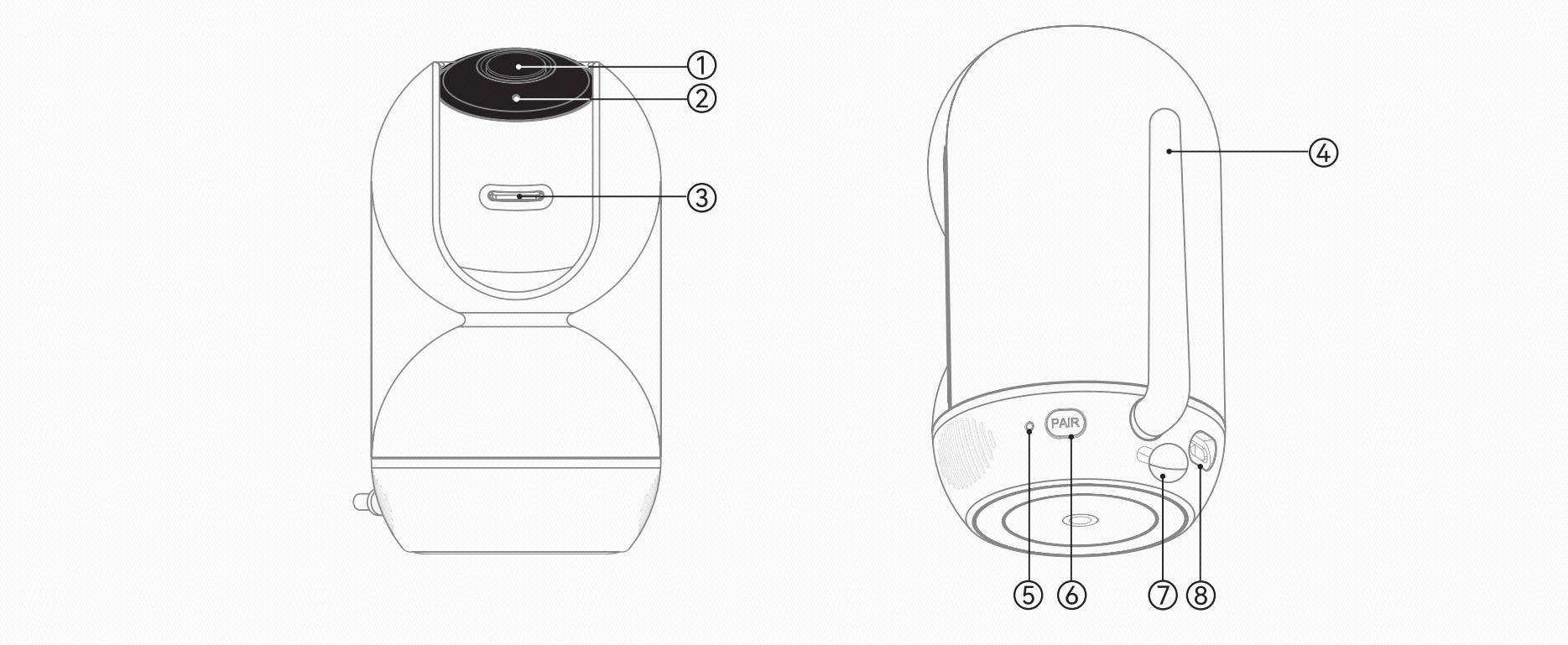

2.2 Camera
| Description of Camera | ||
| 1 | Camera Lens | / |
| 2 | Microphone | / |
| 3 | SD Slot | Please do not remove the SD card to avoid affecting the recall/storage function |
| 4 | Camera Antenna | / |
| 5 | Signal Indicator Light |
Slow flashing blue light indicates: Signal searching. Fast flashing blue light indicates: Signal pairing. Steady blue light indicates: Pairing successful (light goes off after 3 minutes of successful pairing) |
| 6 | Camera Pairing Button | Long press the button for 1 second, and the camera emits a "beep" sound, indicating the start of pairing (please place the devices at an appropriate distance during pairing) |
| 7 | Temperature Sensor | / |
| 8 | Charging Port | / |
