Monitor BM04 Introduction

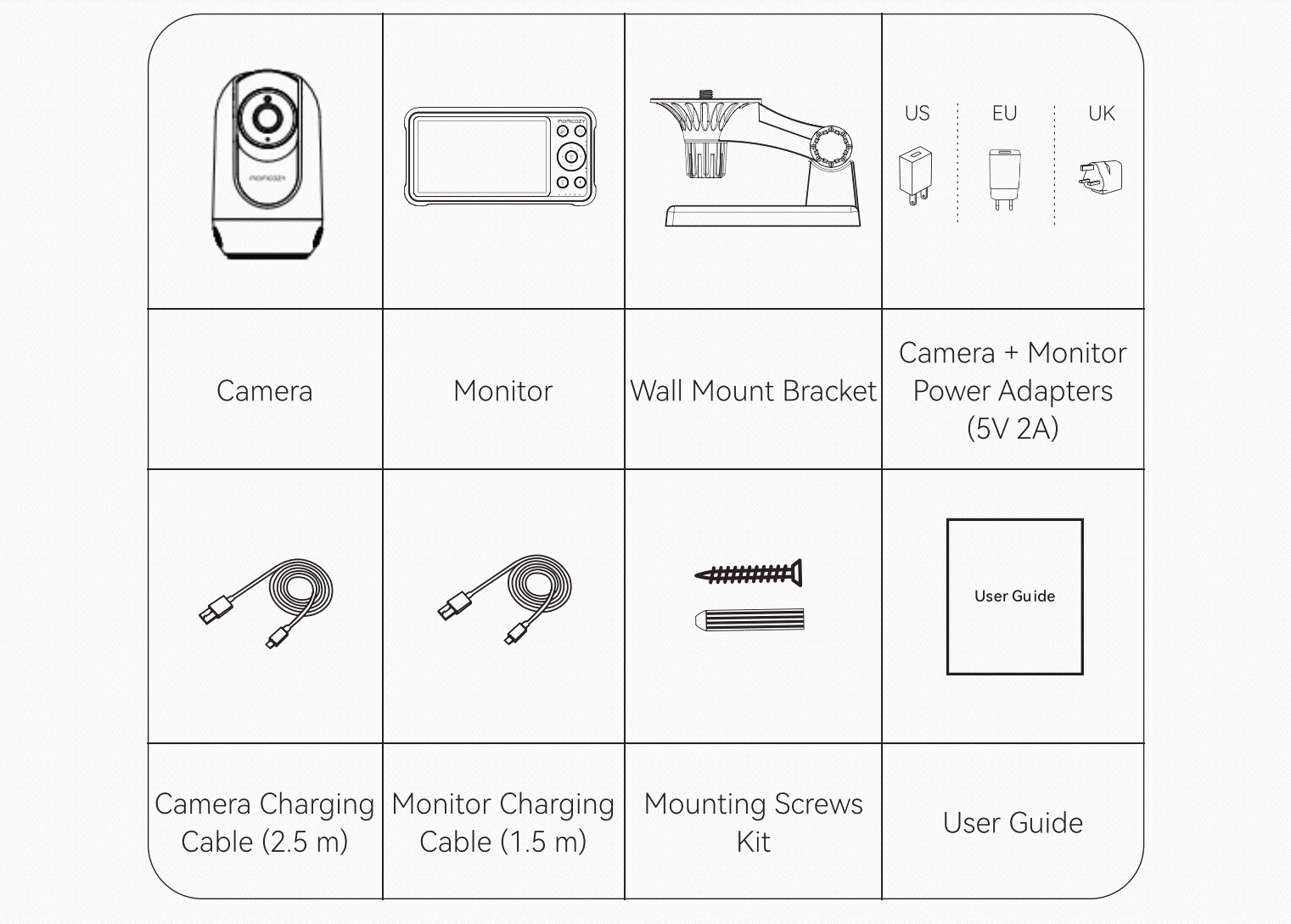

1.Package List
2. Appearance and Functions

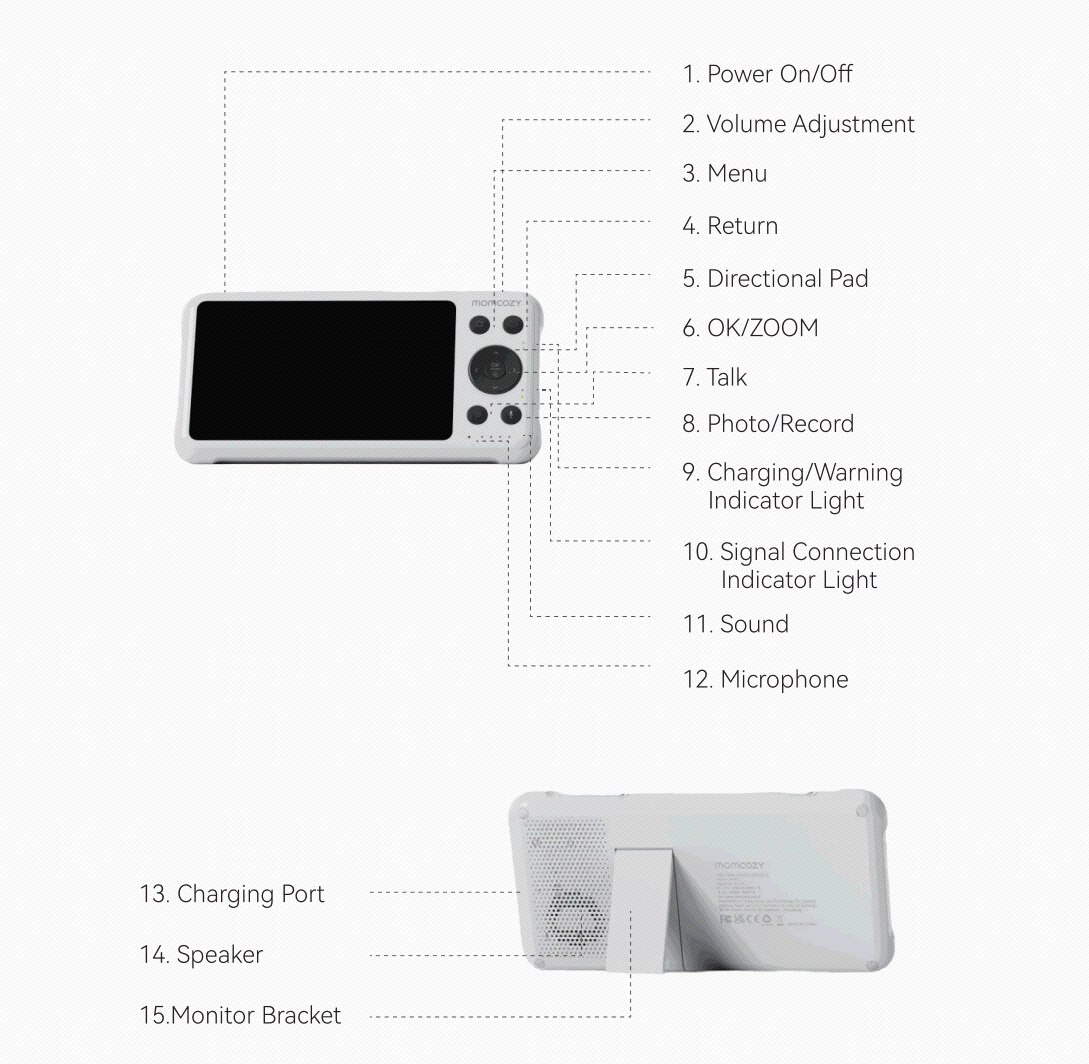

2.1 Monitor
| Description of Monitor | ||
| 1 | Power On/Off | Press and hold 3 seconds to turn on/off |
| 2 | Volume Adjustment | Press [+]/[-] to adjust the volume of the monitor |
| 3 | Menu | Short press the [Home] button to enter/exit the main menu |
| 4 | Return | Press to return to the previous step |
| 5 | Directional Pad |
Press the pad's up, down, left, and right buttons to control the camera angle on the video screen. Press to select a menu on the [Menu] page |
| 6 | OK/ZOOM |
Short press to toggle between 1x, 2x, and 4x zoom on the video screen. Short press to confirm a menu selection on the [Menu] page. |
| 7 | Talk | Press and hold to talk to your baby |
| 8 | Photo/Record | Short press to capture a screenshot when a memory card is inserted into the camera. Press and hold for 3 seconds to start and stop a video recording |
| 9 | Charging/Warning Indicator Light |
Steady blinking white light: Charging Solid white light: Fully charged Solid red light: Low battery Blinking red light: Temperature/Sound warning |
| 10 | Signal Connection Indicator Light |
Slowly blinking blue light: Pairing Solid blue light: Paired (Light disappears 3 minutes after successful pairing) |
| 11 | Sound | A signal light illuminates and dims to indicate the sound level received by the camera. The louder the sound received by the camera, the greater the number of illuminated indicators that display on the monitor. |
| 12 | Microphone | / |
| 13 | Charging Port | / |
| 14 | Speaker | / |
| 15 | Monitor Bracket | / |

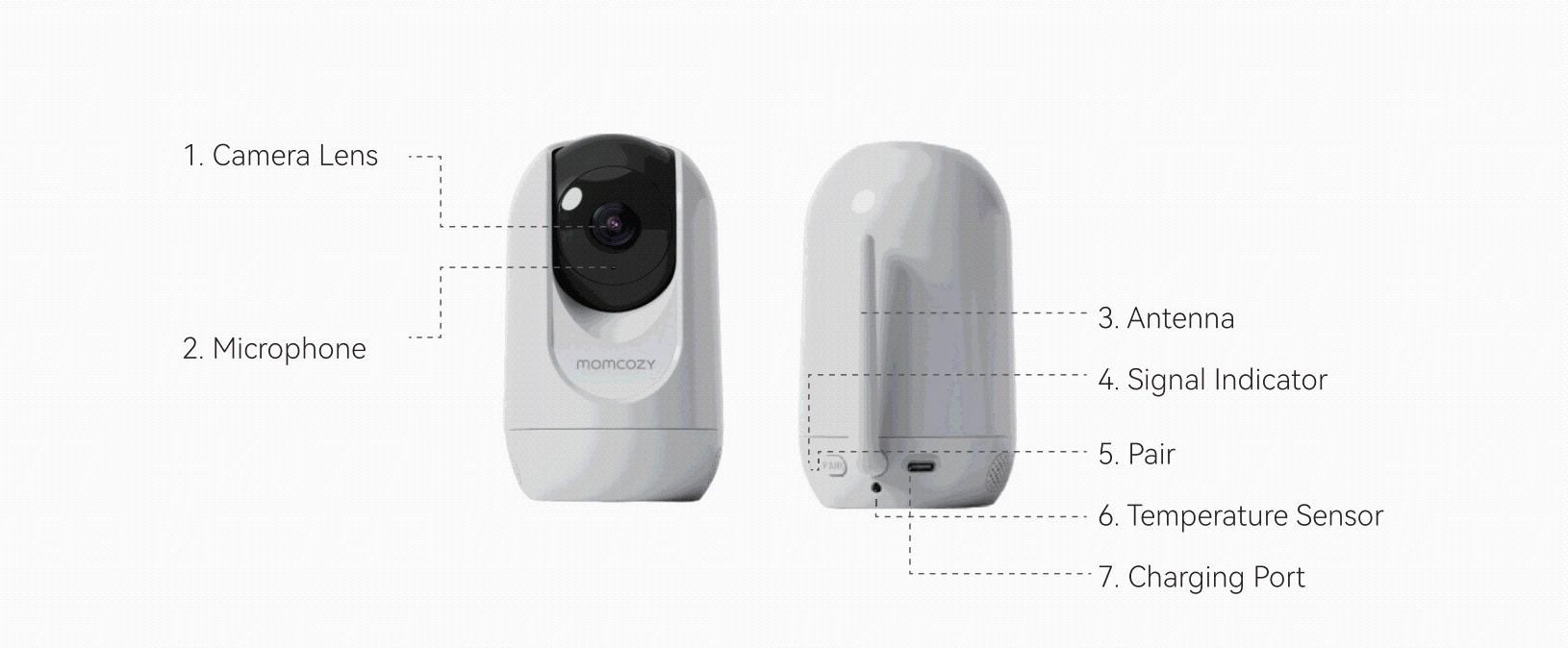

2.2 Camera
| Description of Camera | ||
| 1 | Camera Lens | / |
| 2 | Microphone | / |
| 3 | Antenna | / |
| 4 | Signal Indicator |
Blue light flashing slowly: This indicates that signal searching is underway. If either the monitor or the app fails to pair with the other, the indicator light will continue to flash slowly. Rapidly blinking blue light: Pairing Solid blue light: Paired (Light disappears 3 minutes after successful pairing) |
| 5 | Pair | Press once: A "beep" sound can be heard from the camera, indicating it's ready to pair with the monitor (During pairing, please place the devices close to each other) |
| 6 | Temperature Sensor | / |
| 7 | Charging Port | / |
