1. Volume Adjustment
Use Shortcut Button:Press Button → Left/Right button to quickly adjust the volume.
💡 To adjust system sound, navigate to Monitor →
→Alarm volume.
2. Selecting a Camera & Scanning Cameras
Note: This function requires more than two cameras to be turned on. Multiple cameras are powered on and within the monitor connection range.
Method 1

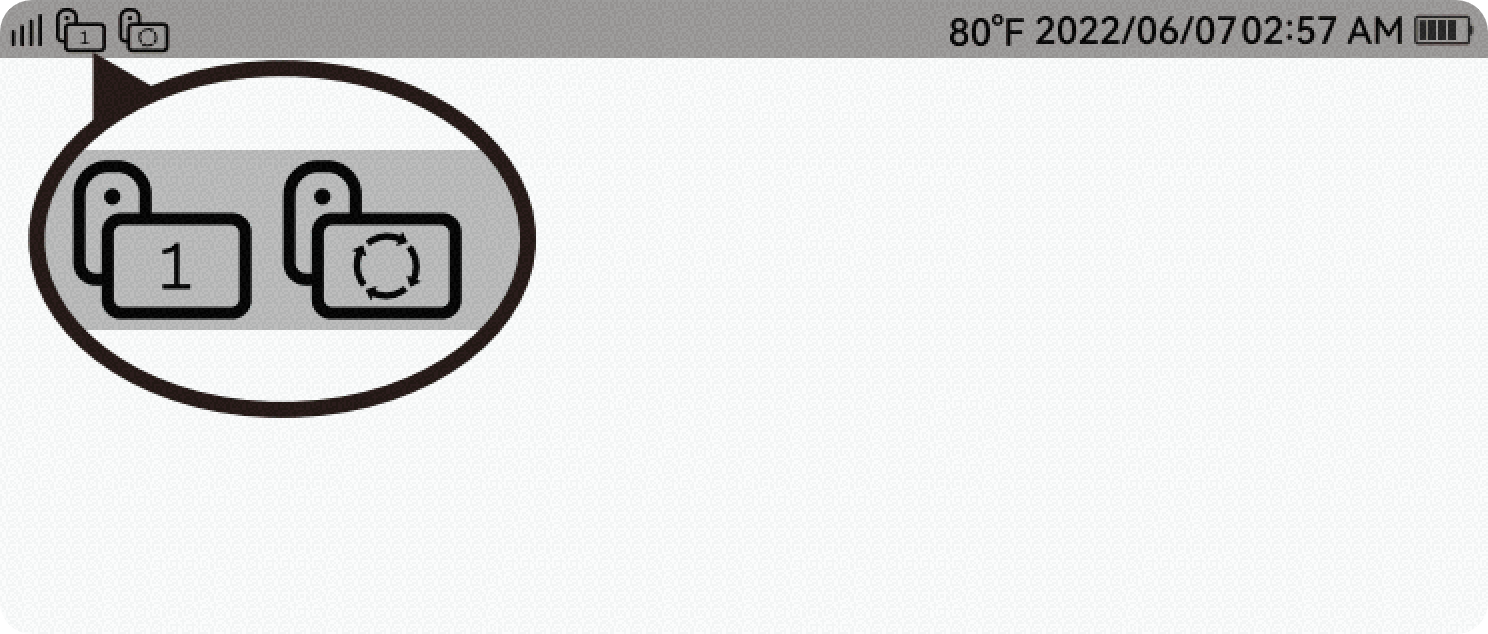

①Check the monitor icons, clickin the motor to switch to the next camera view.
②After switching all camera views, click thebutton again. Then the camera view transits from one to other connected cameras every 10 seconds, displaying a loop icon at the top left of the screen.
③Click again to stop scanning. Then the camera will switch to single camera view.

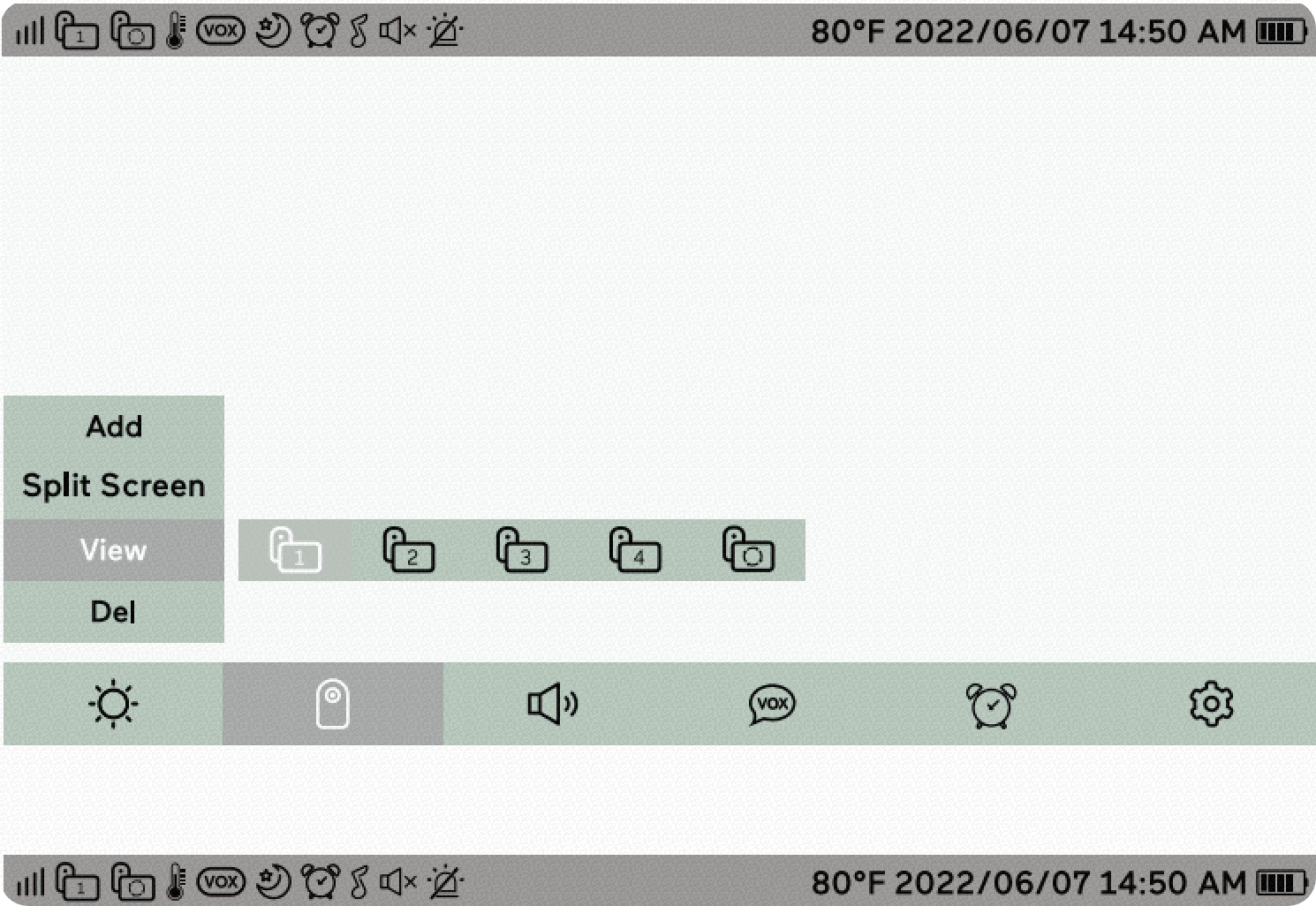

Method 2
①Press in the monitor to enter menu page.
②Select → View →
.
③Select the camera you want to switch and press button.
④If you need to cycle multiple camera views. Select →
button.
Each monitor can connect up to 4 cameras.
3. Digital Zoom
Press button to zoom in the screen to 2X and 4X respectively in camera viewing mode. Press
button for the third time to adjust the zoom setting back to default.
4. Talk Back
Press and hold Button to talk to your baby, release it to exit the talking mode.
- When you are in the monitoring mode, press and hold the button
to enter the intercom mode, and the icon
will be displayed on the monitor. When you enter the menu, the intercom function can still be used.
- When it's mute or the speaker volume is too low, you may not be able to hear the baby.
-
When you're pressing the

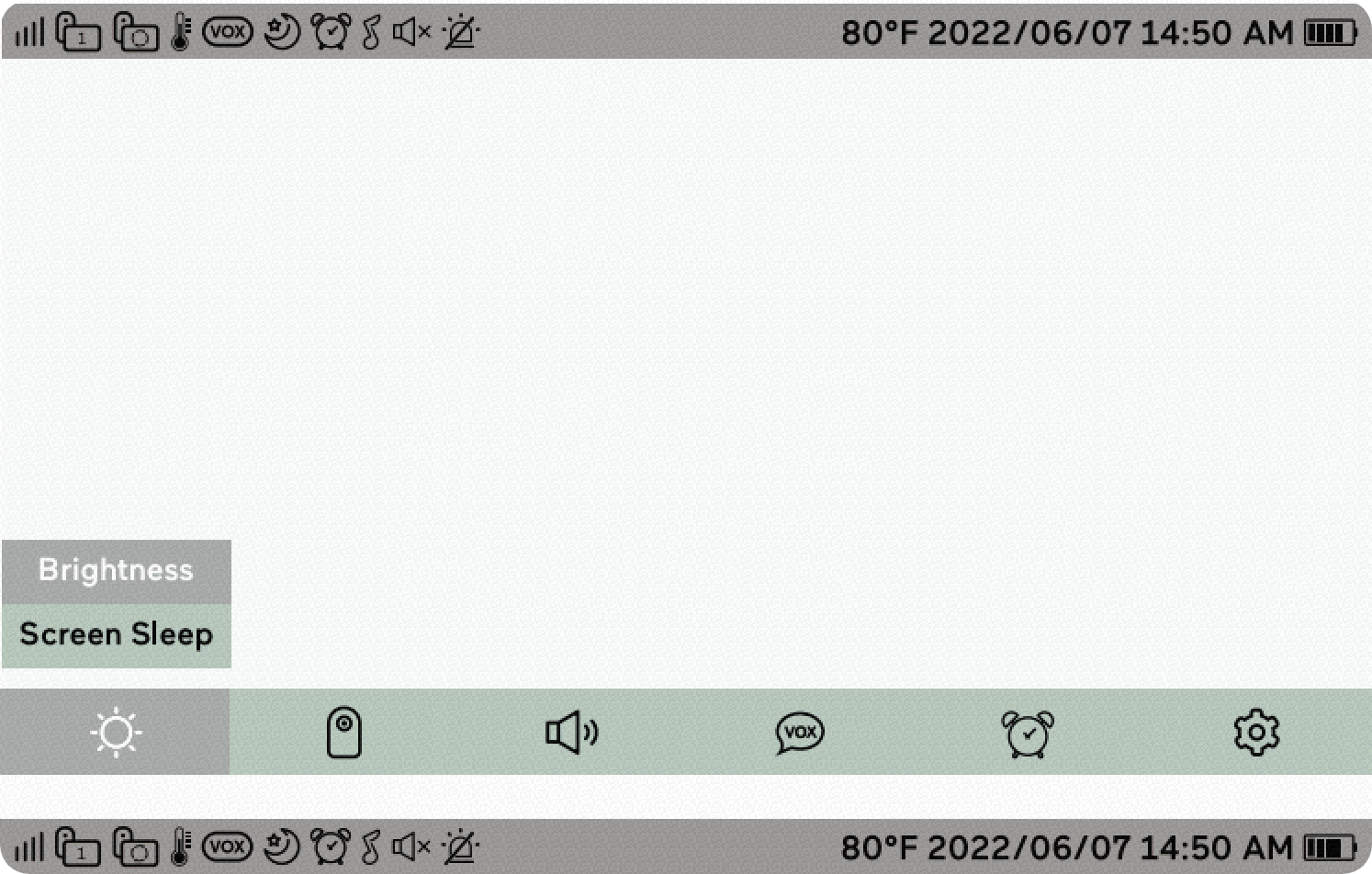

5. Brightness
Explanation: This function is used to adjust the screen brightness of the monitor
①Press to enter menu page
②Choose →
button
③Select the Brightness setting to change the monitor screen brightness

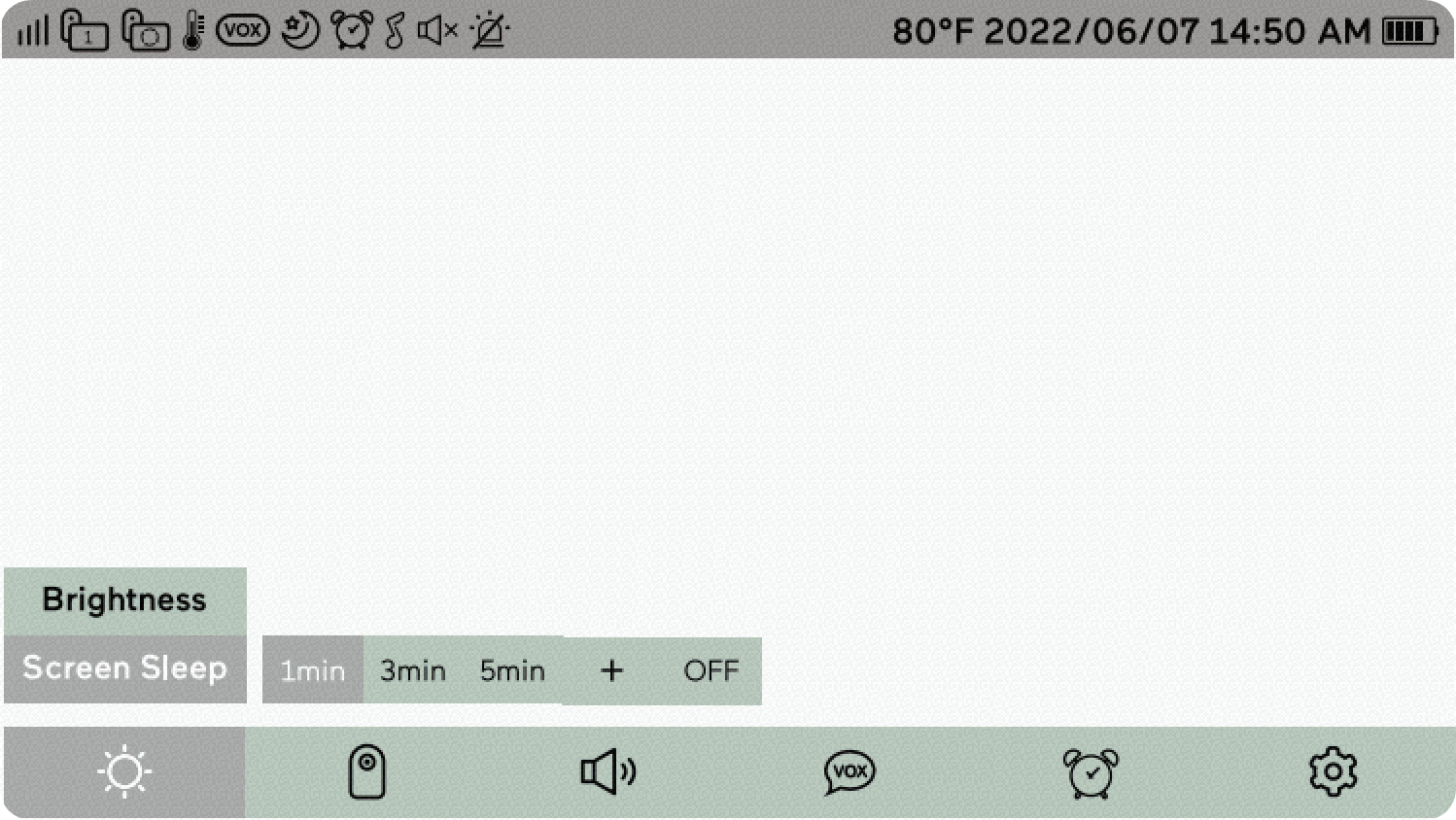

6. Screen Sleep
Explanation: This function is to set the monitor screen to sleep without powering off the monitor.
①Press to enter menu page.
②Choose → OK button.
③Select the Screen Sleep and select the time you want.
Tips:
- Click "+" to enter the page for customizing the resting time. The resting time ranges from 1 to 60 minutes.
- The screen will automatically light up if there is a VOX or a temperature alert.
- When VOX is turned off, the screen will not automatically wake up and light up.
-
When the Screen Sleep is set to"OFF", the monitor screen will not be off.

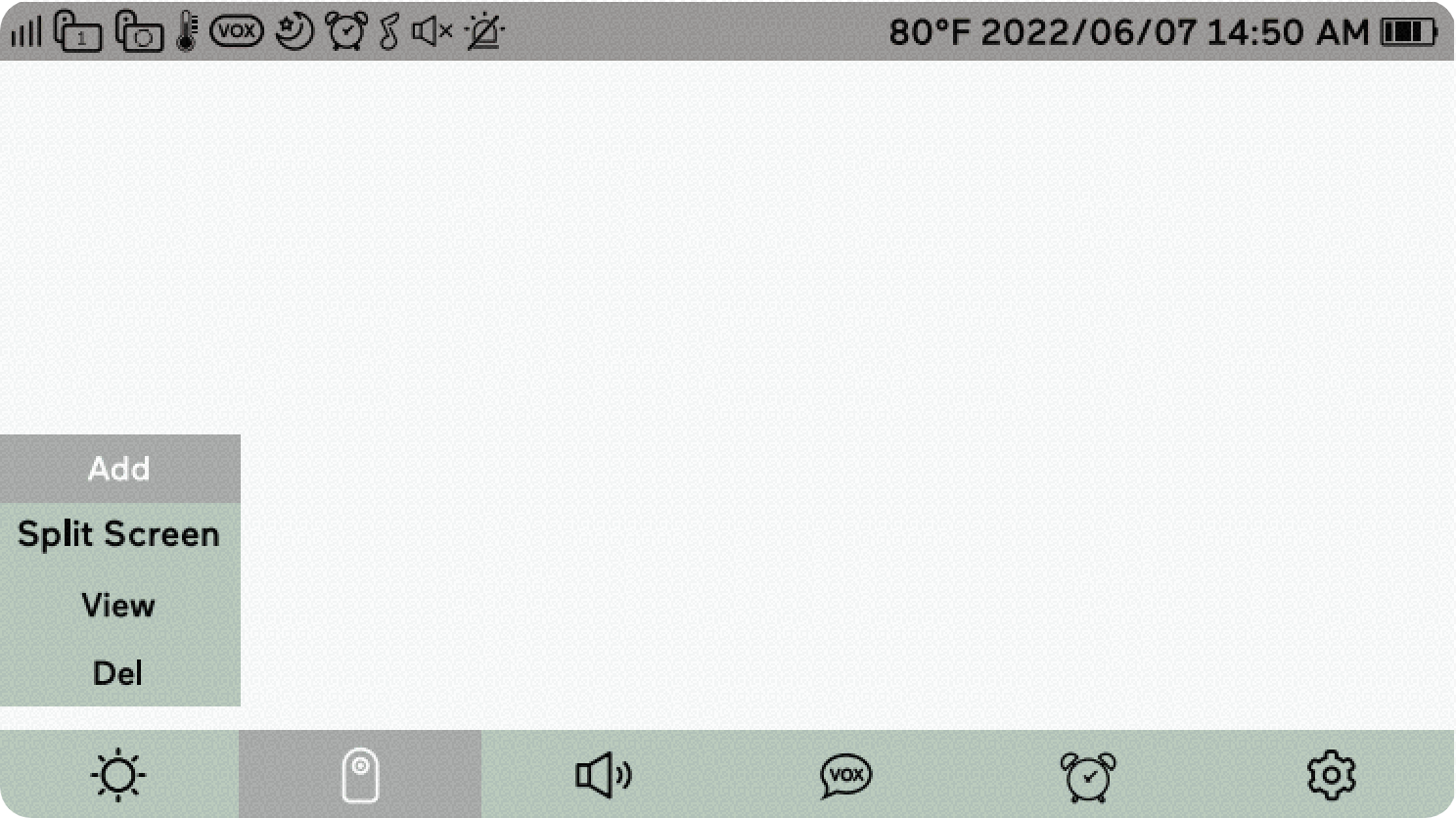

7. Add a New Camera
①Press to enter menu page
②Choose and click
③Select through Add→ →
button
④Press PAIR button on the rear of the camera
⑤Then the monitor shows the camera is paired successfully

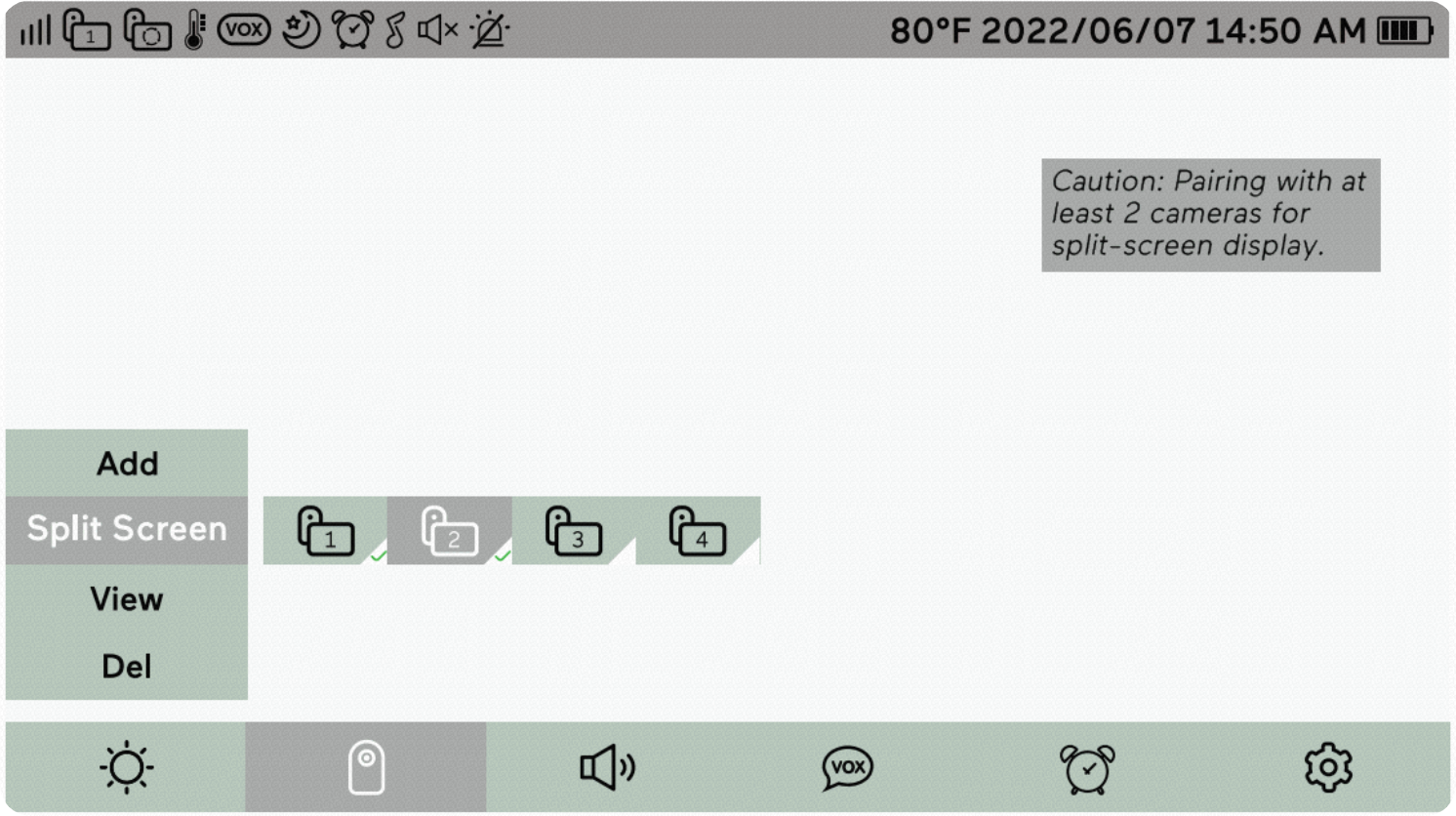

8. Split Screen

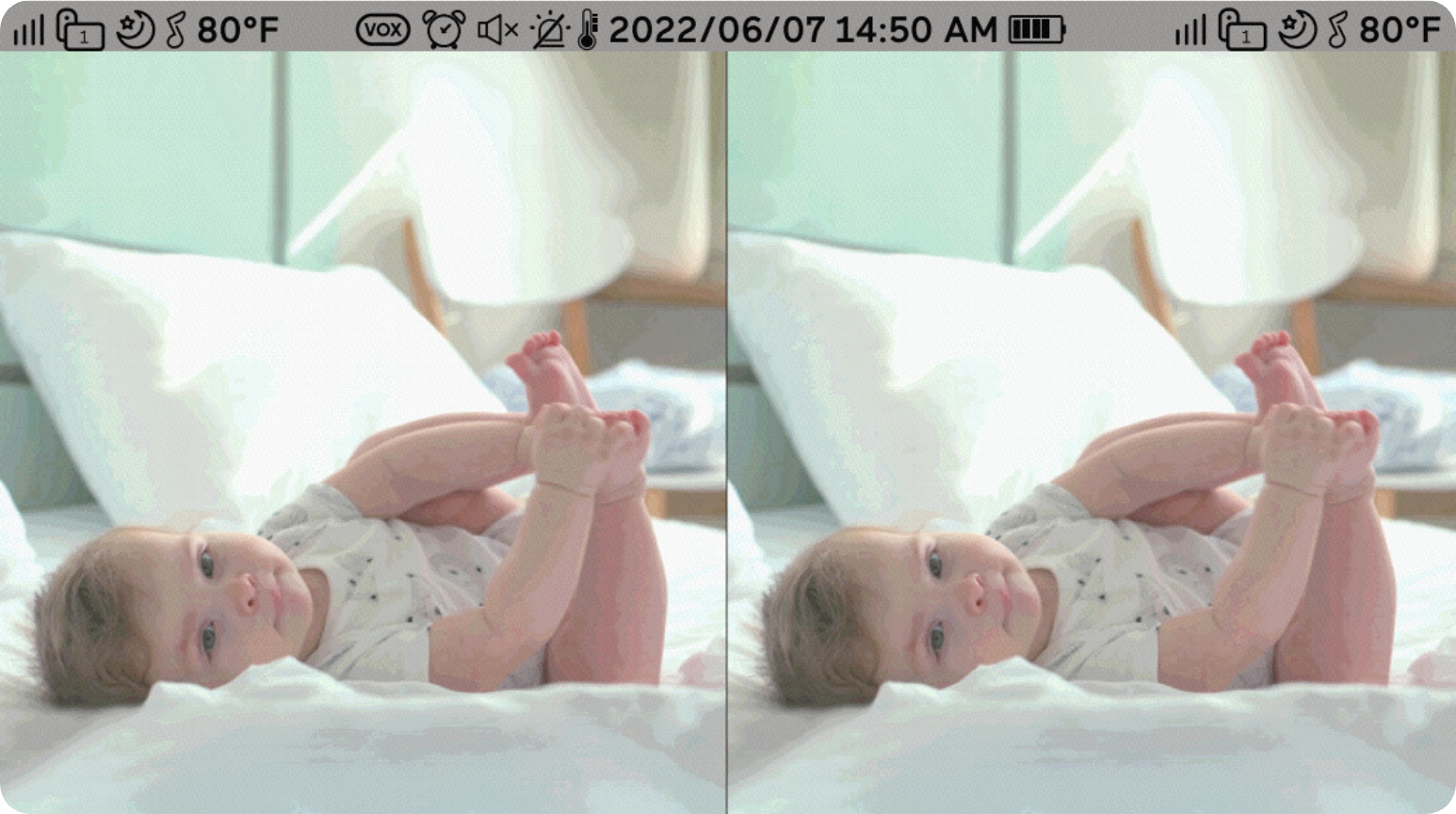

Explanation: This function is to display two camera views on a single screen.
①Press to enter menu page.
②Select through → Split Screen → button.
③Select another camera that needs a split screen and press . Then the monitor will give you a split screen view.
Tips: Select the camera on the split screen and press . If the camera is not selected, the monitor will exit the split screen mode.

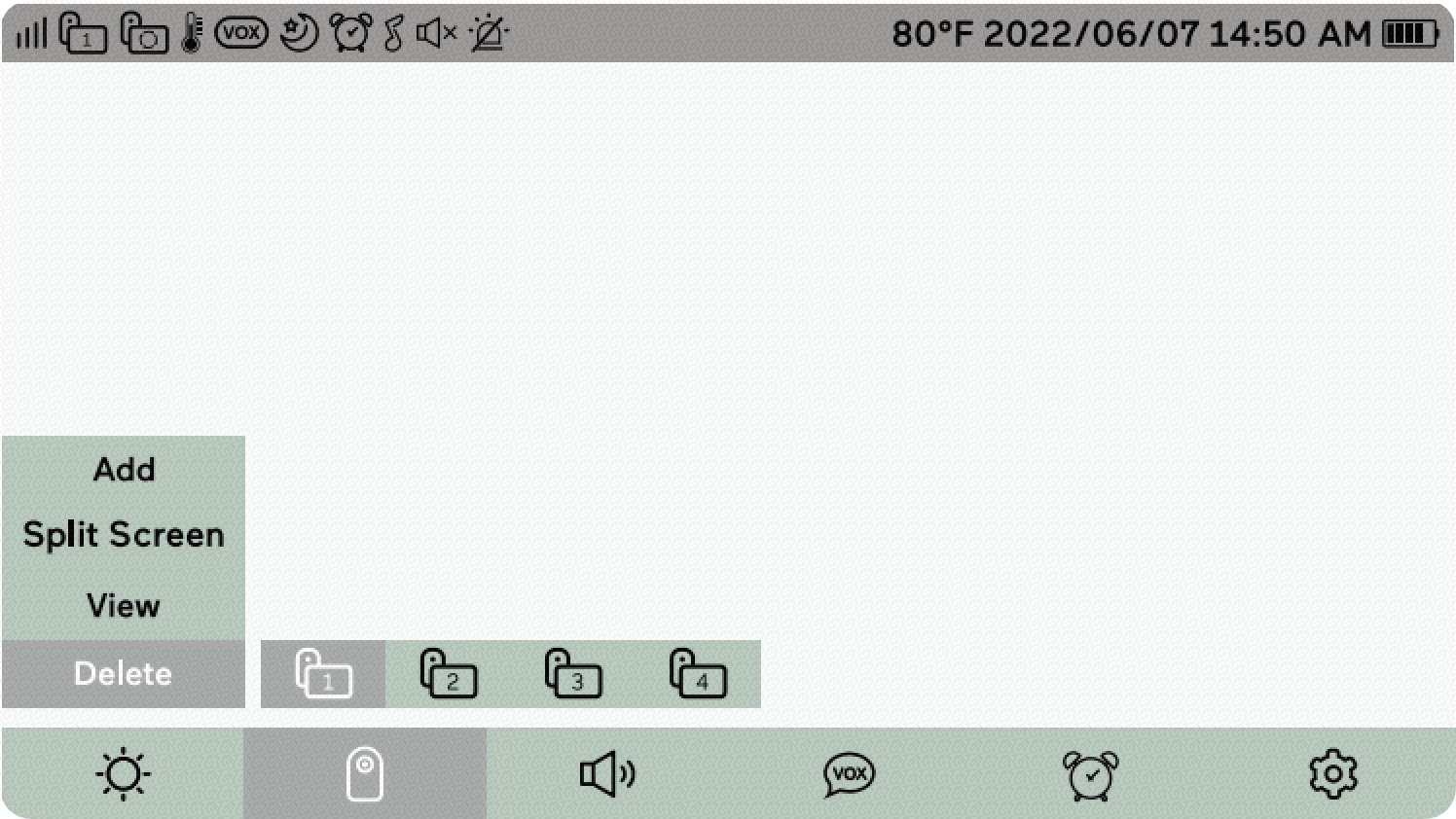

9. Deleting A Camera
①Press to enter menu page
②Choose →Delete→ Select the camera → click
→ Notification: Camera Disconnected
Tips: The monitor is paired with one camera by default, you should keep at least one camera connected.

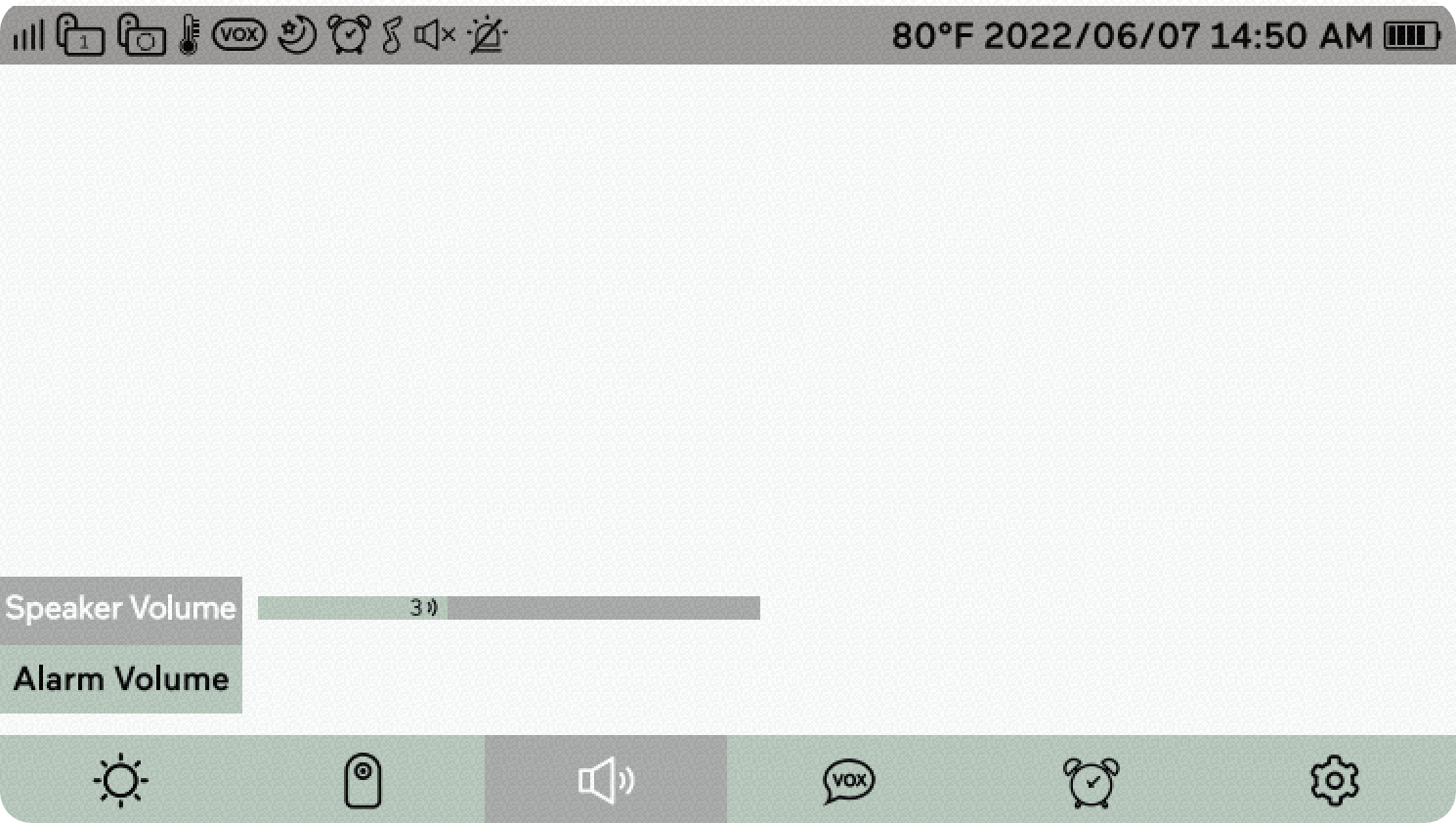

10. Speaker Volume
Explanation: This function is used to adjust the speaker volume of the monitor.
①Press to enter menu page
②Choose button →
Speaker Volume→ click < and > button to decrease/increase the volume

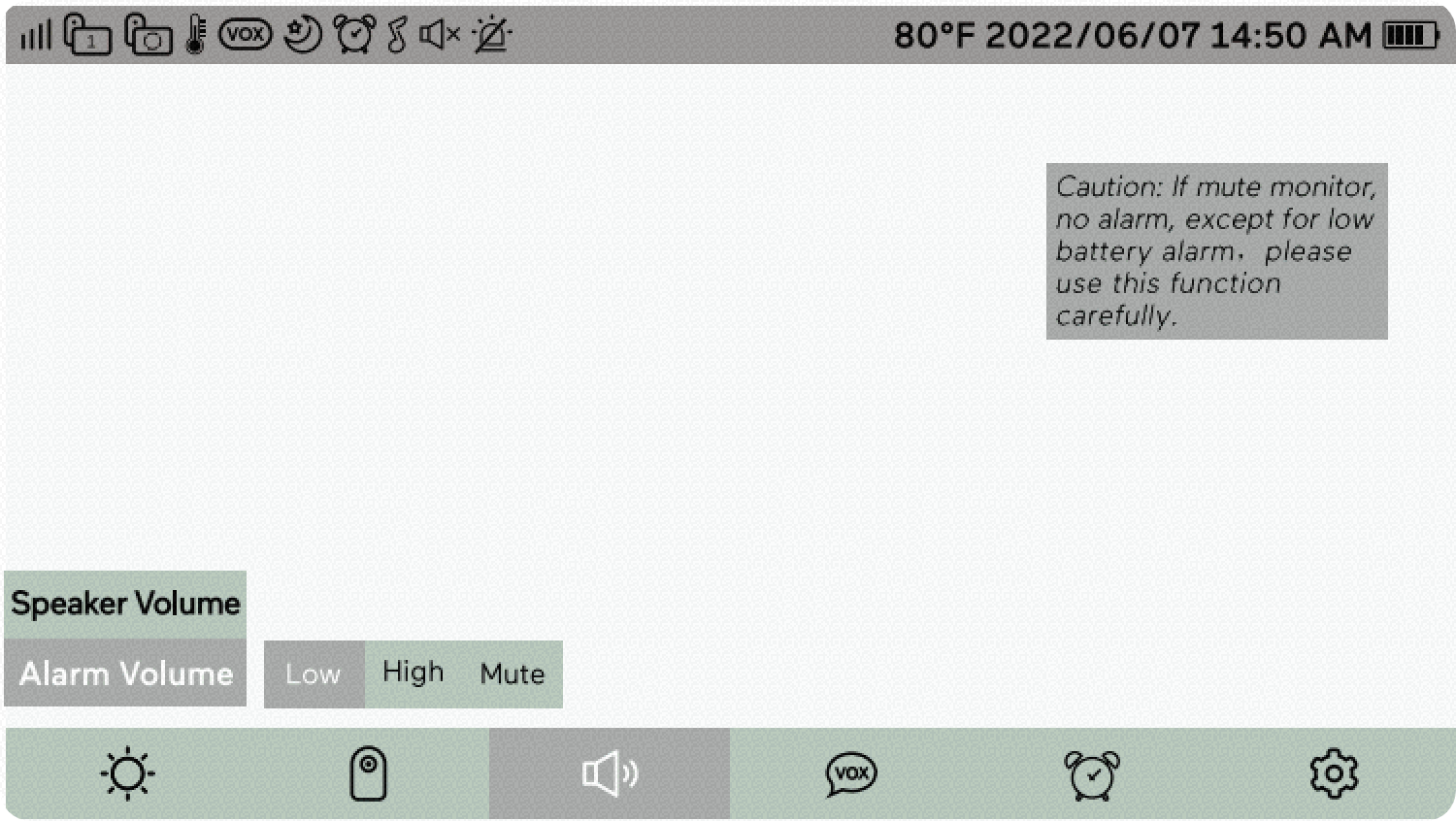

11. Alarm Volume
Explanation: This function is to adjust the monitor system sound.
①Press to enter menu page
②Choose button →
Alarm Volume → Select the preferred alarm sound level →

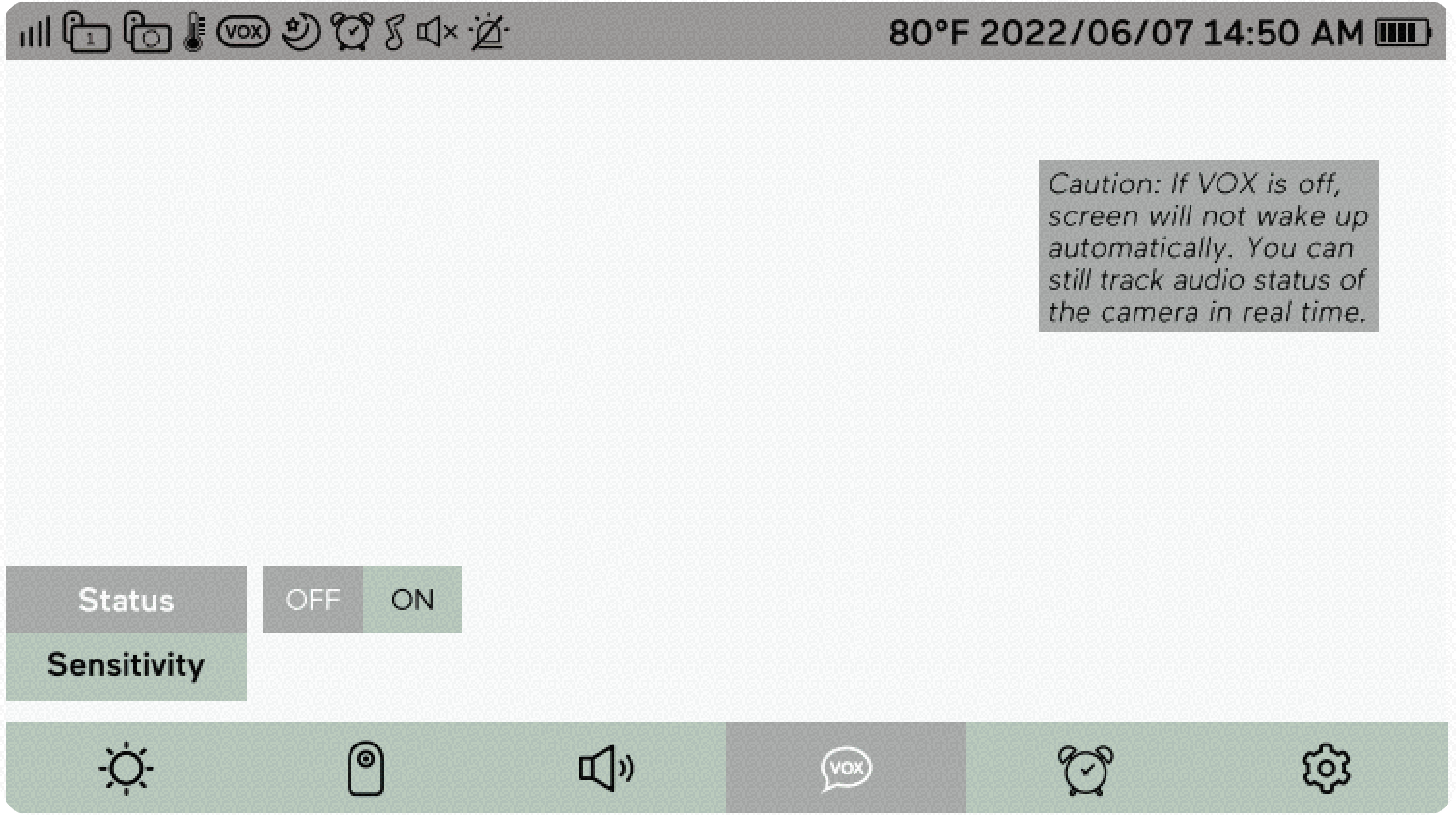

12. VOX
Explanation: This function is used to wake up the monitor screen and light up. There are three wake-up levels (low/medium/high). When the sound detected by the camera reaches 75dB/65dB/60dB or more, the monitor will wake up and the LED indicator will flash.
Caution: The screen will not wake up automatically if VOX is turned off.
①Press to enter menu page
②Choose Status to turn on the VOX function

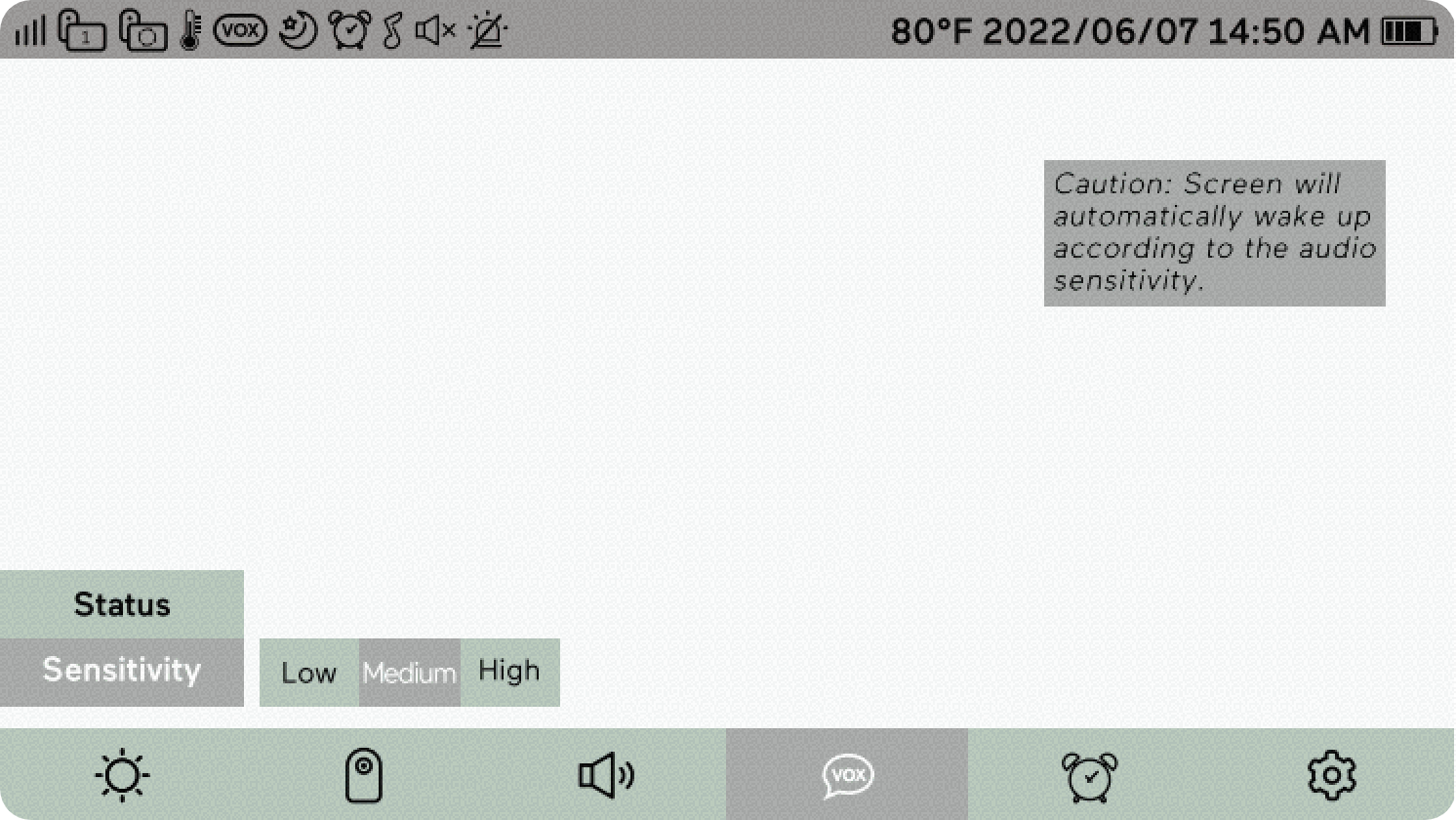

③Select the option you want in Sensitivity. Then press the button

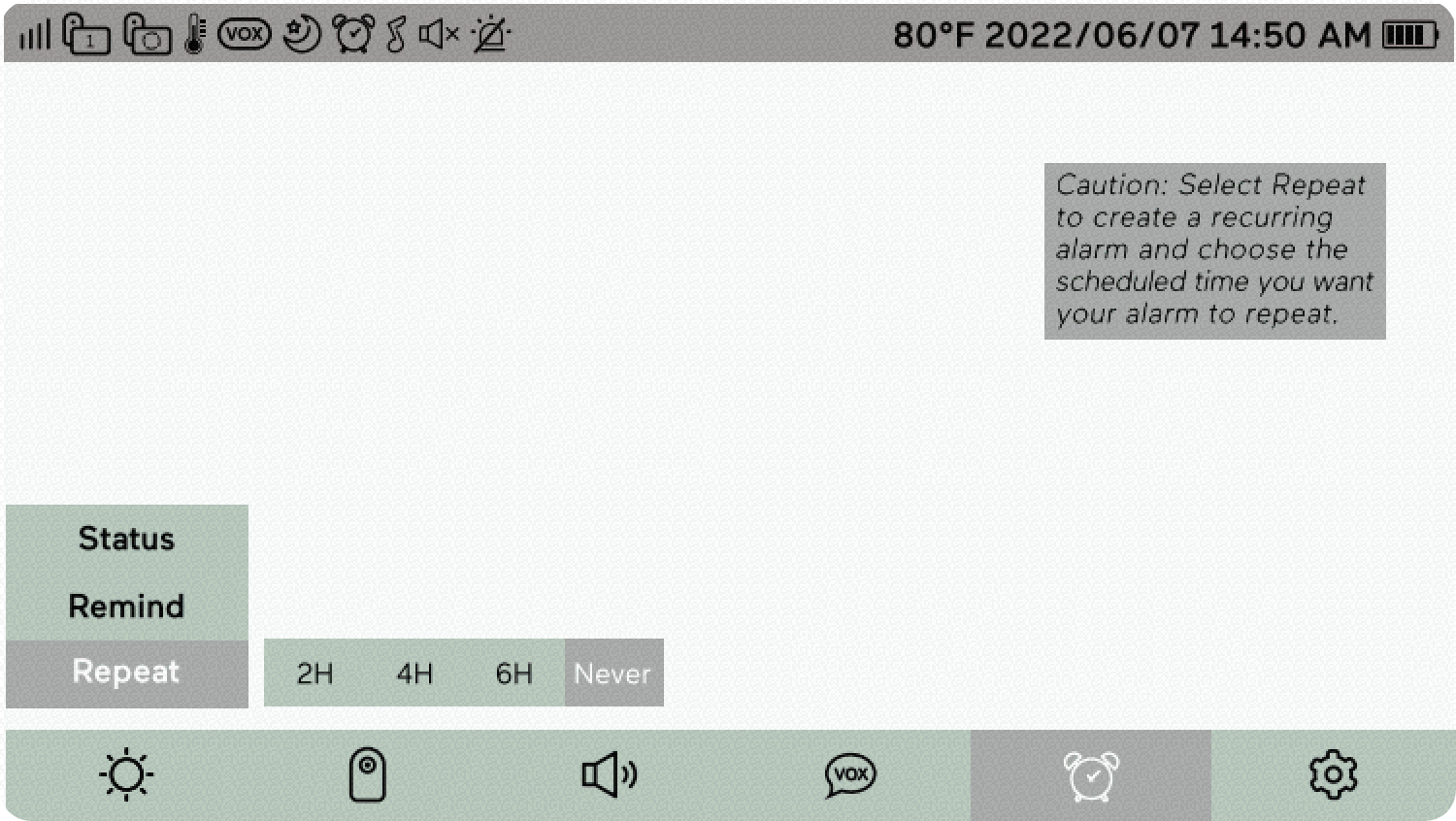

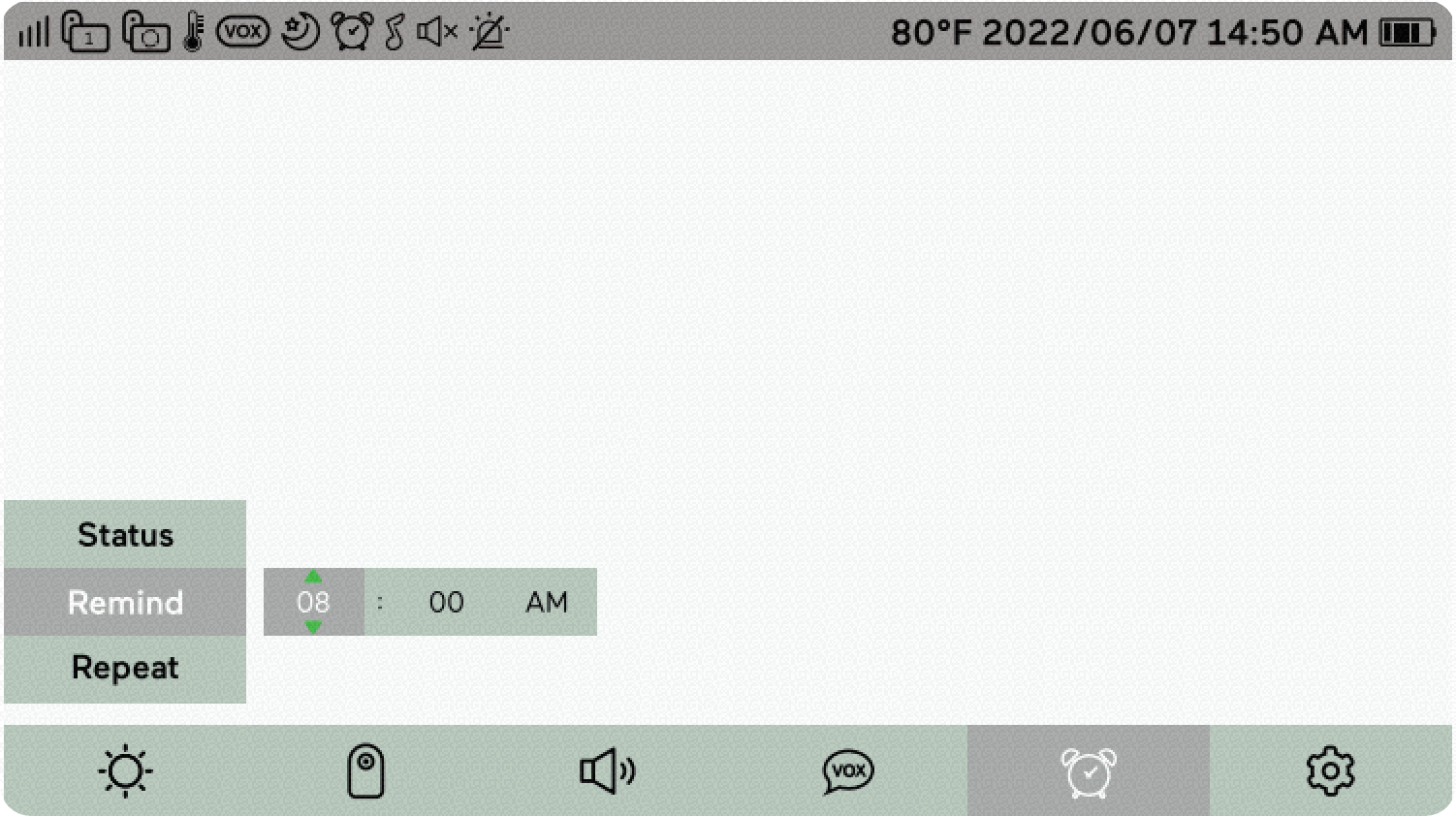

13. Alarm Clock
Explanation: This function is to remind you of feeding your baby.
①Press to enter menu page
②Choose and click
- Select Remind and set the time you want. The ^and v buttons can adjust the value.
- Select Repeat to create a recurring alarm and choose the scheduled time you want your alarm to repeat.
Tips: OFF means you turn off the function; 2 hours mean it reminds you every 2 hours and so on for the other options.

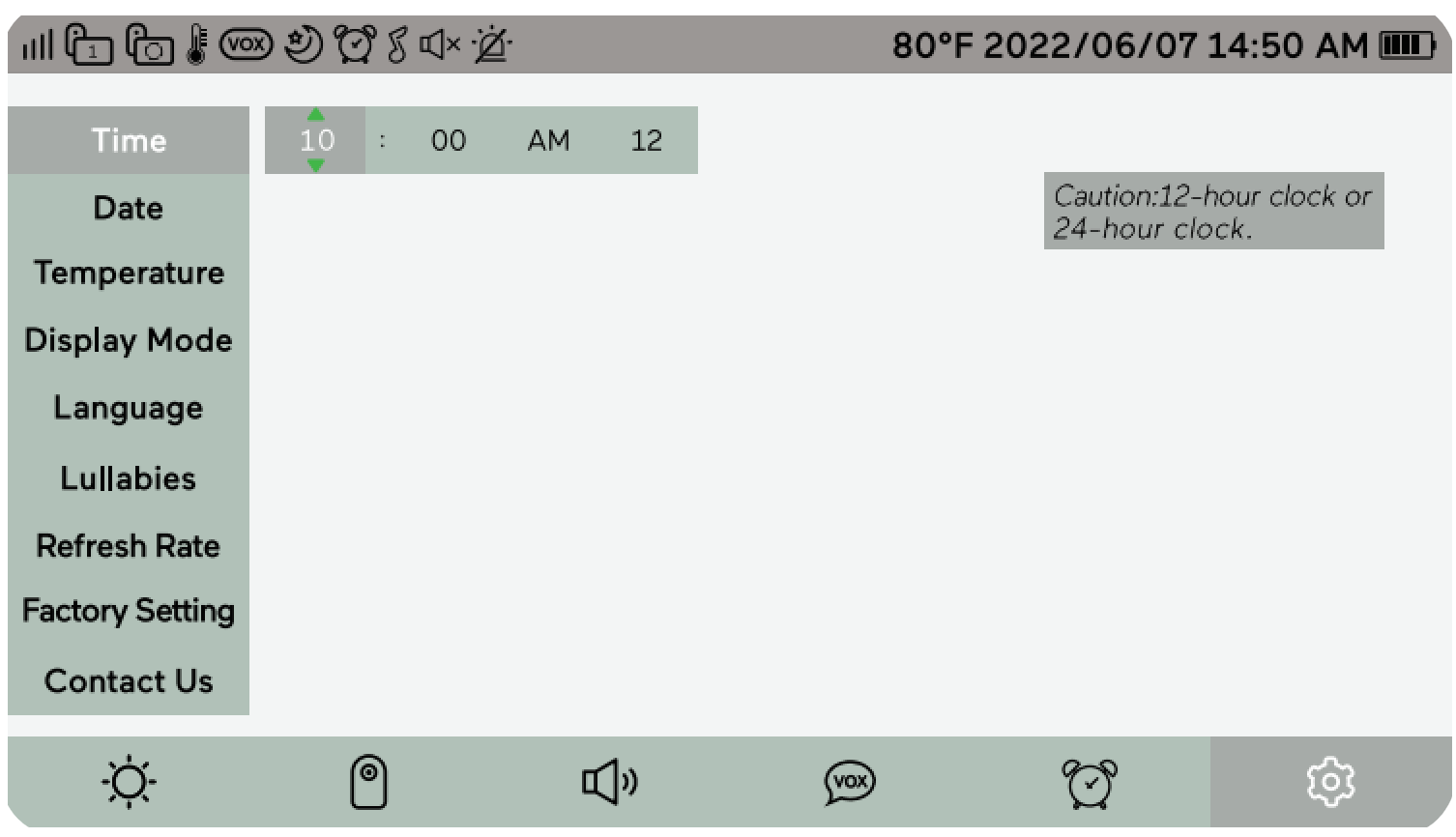

14. Time
①Press to enter menu page
②Choose →Time→
button
③Press ^and v to adjust the value, and press to save the Settings.

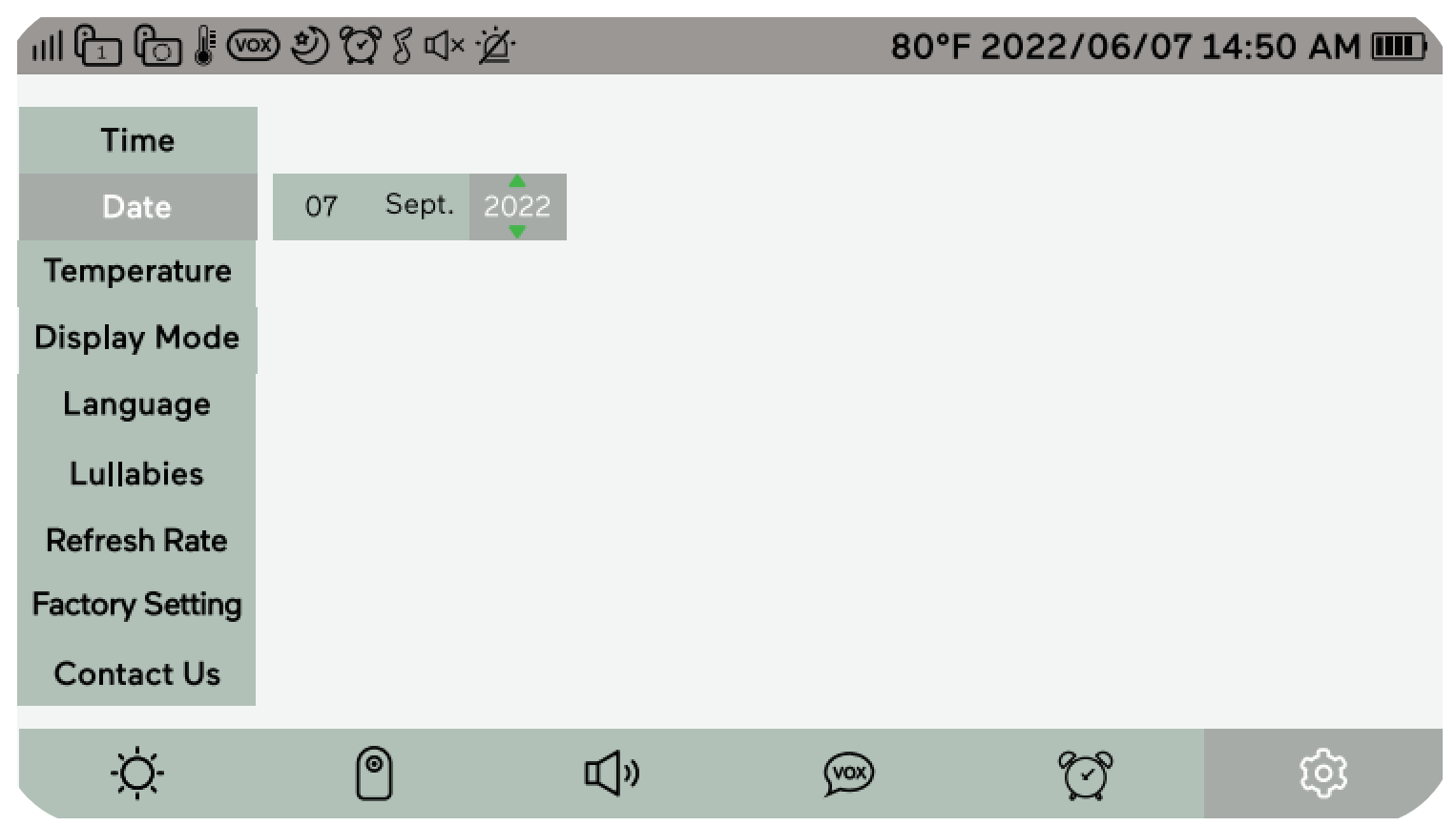

15. Date
①Press to enter menu page
②Choose →Date→
button
③Press ^and v to adjust the value, and press to save the Settings

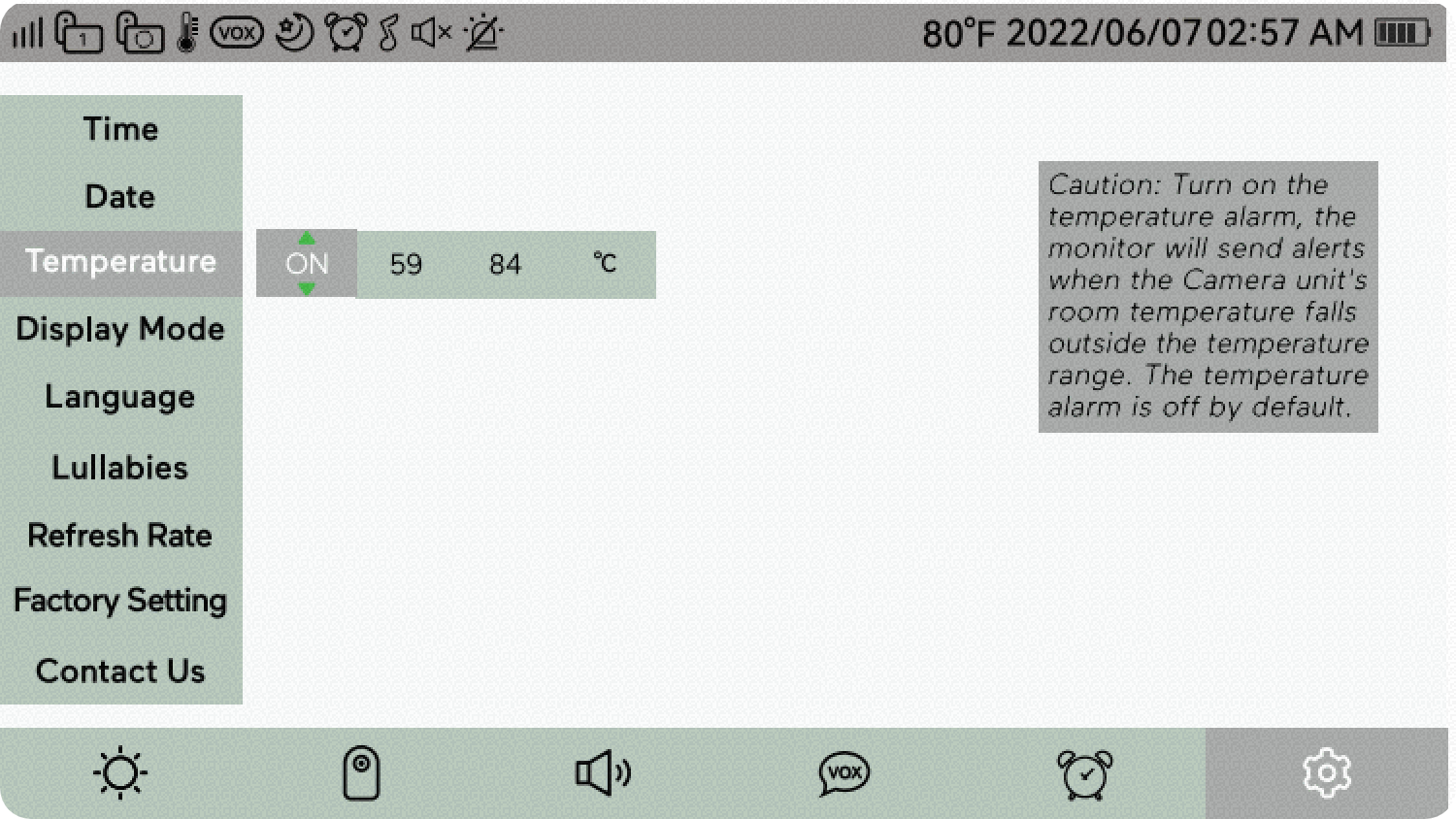

16. Temperature
Explanation: you can set the maximum/minimum temperature and turn on the temperature alert, so that the baby monitor beeps whenever the room temperature falls outside the desired temperature range. You can also choose to display the temperature in Fahrenheit(F)or Celsius(℃)on your monitor.
①Press to enter menu page
②Choose → Temperature →
button → choose the desired value →
button
Tips: A temperature alarm can be temporarily turned off by pressing any button on the monitor

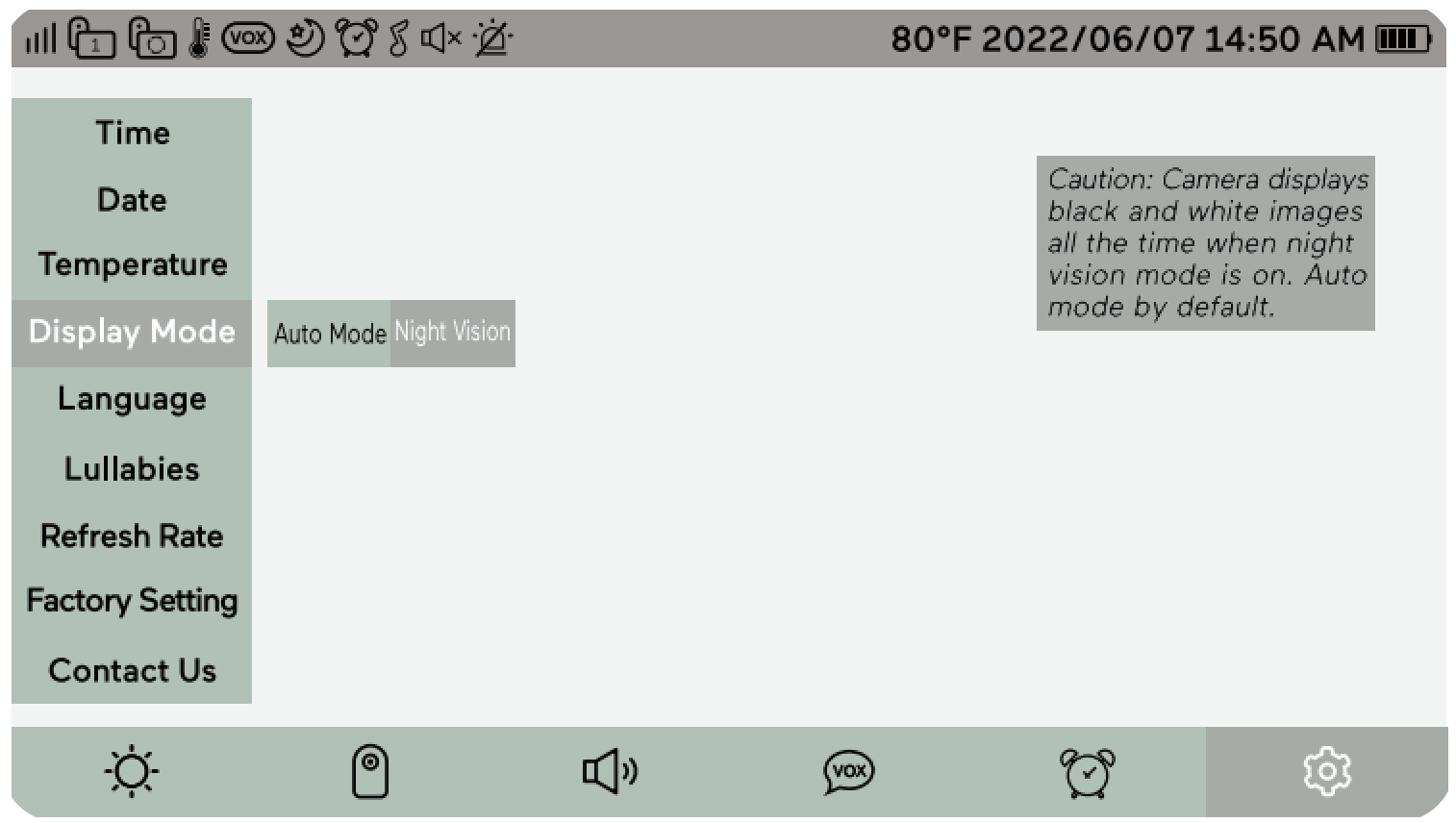

17. Display Mode
Explanation: In Auto Mode, the camera displays color images during the day, during night time the camera displays black and white images.
①Press to enter menu page
②Choose →Display Mode →
button
③Select the mode you want

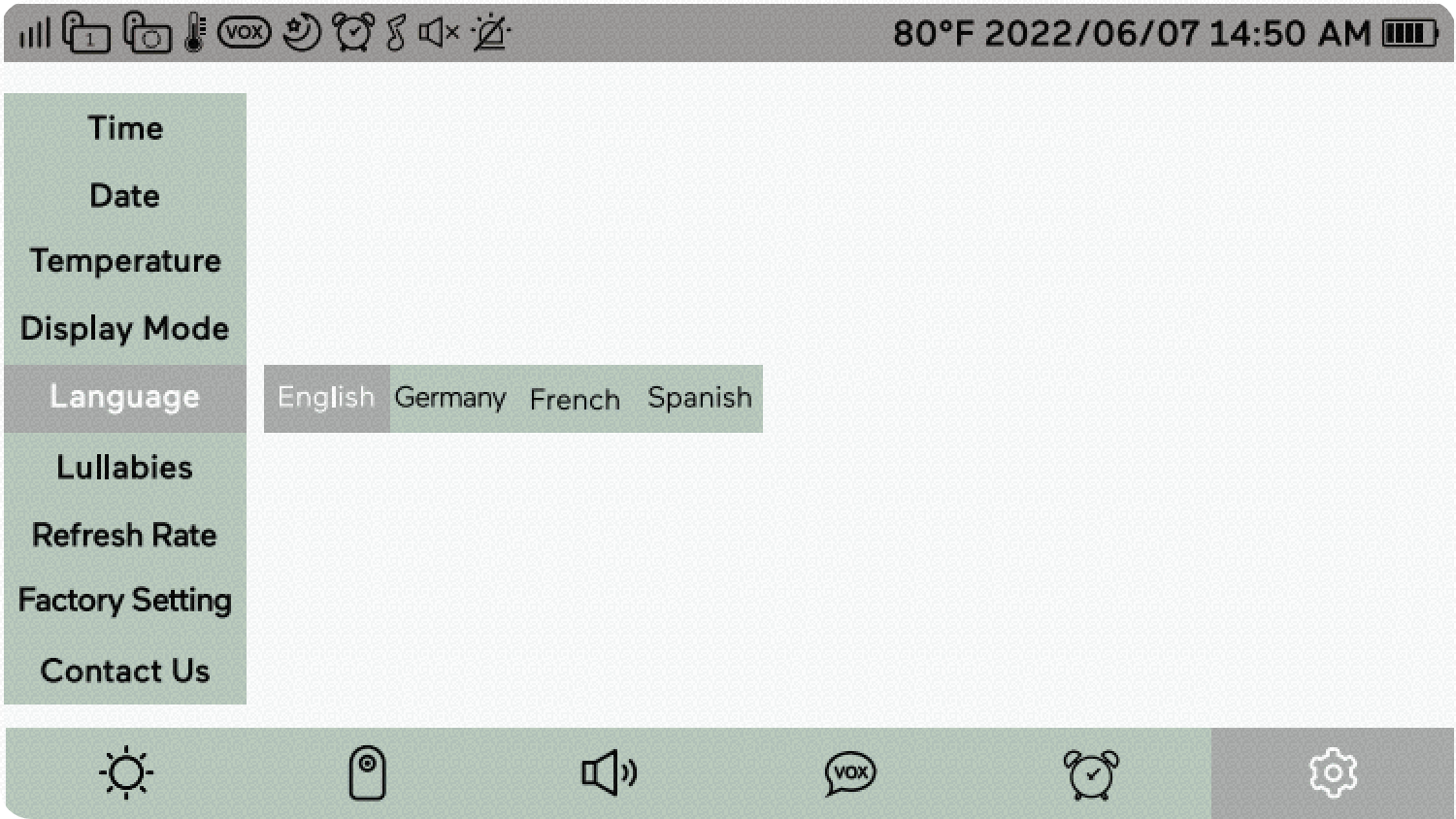

18. Language
There are four languages available in your device,you can choose your languages here.
①Press to enter menu page
②Choose → Language
③Select the desired language and click button

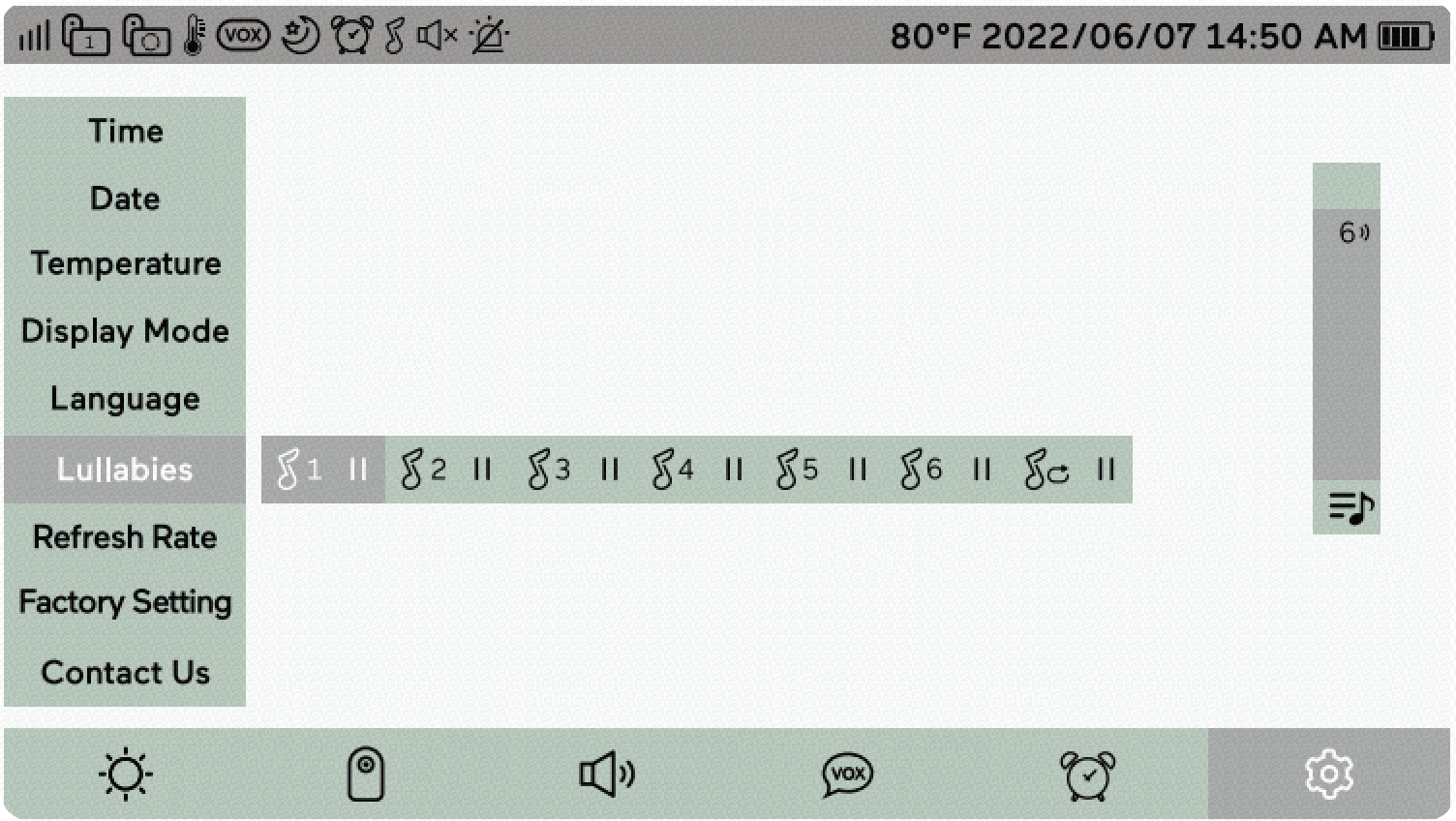

19. Lullabies
Explanation: This function is to comfort baby with soothing lullabies
Method 1:
Use Shortcut Button:Press to enter the lullaby page. Press < & > buttons to select the lullaby song, press ^and v buttons to adjust the volume of the lullaby, and press OK to turn on or off the lullaby.
Method 2:
①Press to enter menu page
②Choose →Lullabies→
③Select your desired lullaby and press to turn it on/off. Press ^and v button to increase or decrease the lullaby sound. Select
to play the lullaby on a loop

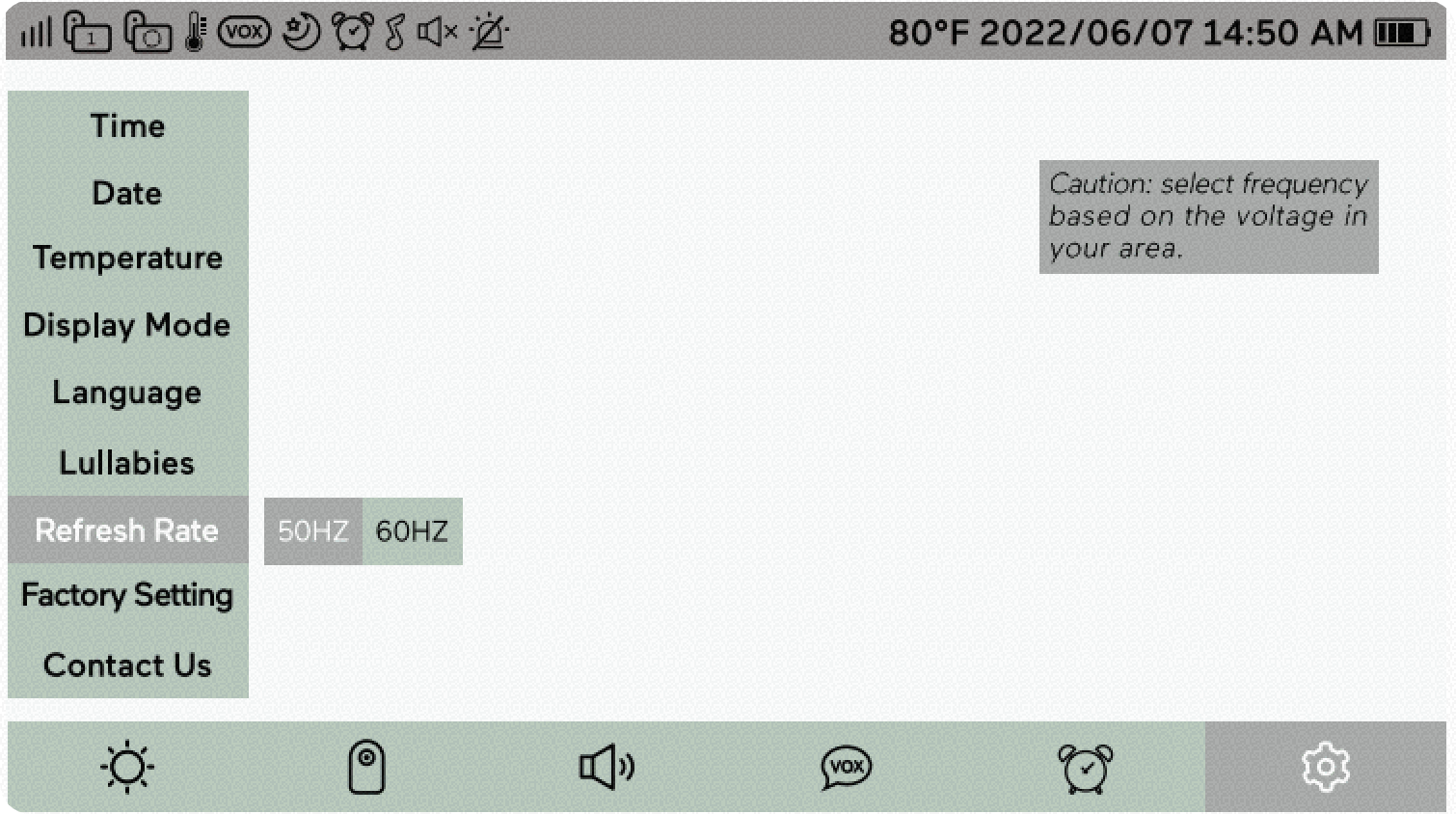

20.Refresh Rate
Explanation: You can change the image refresh frequency of the camera to ensure that the camera works normally.
①Press to enter menu page
②Choose → Refresh Rate →
→ Set the refresh frequency based on use in your area

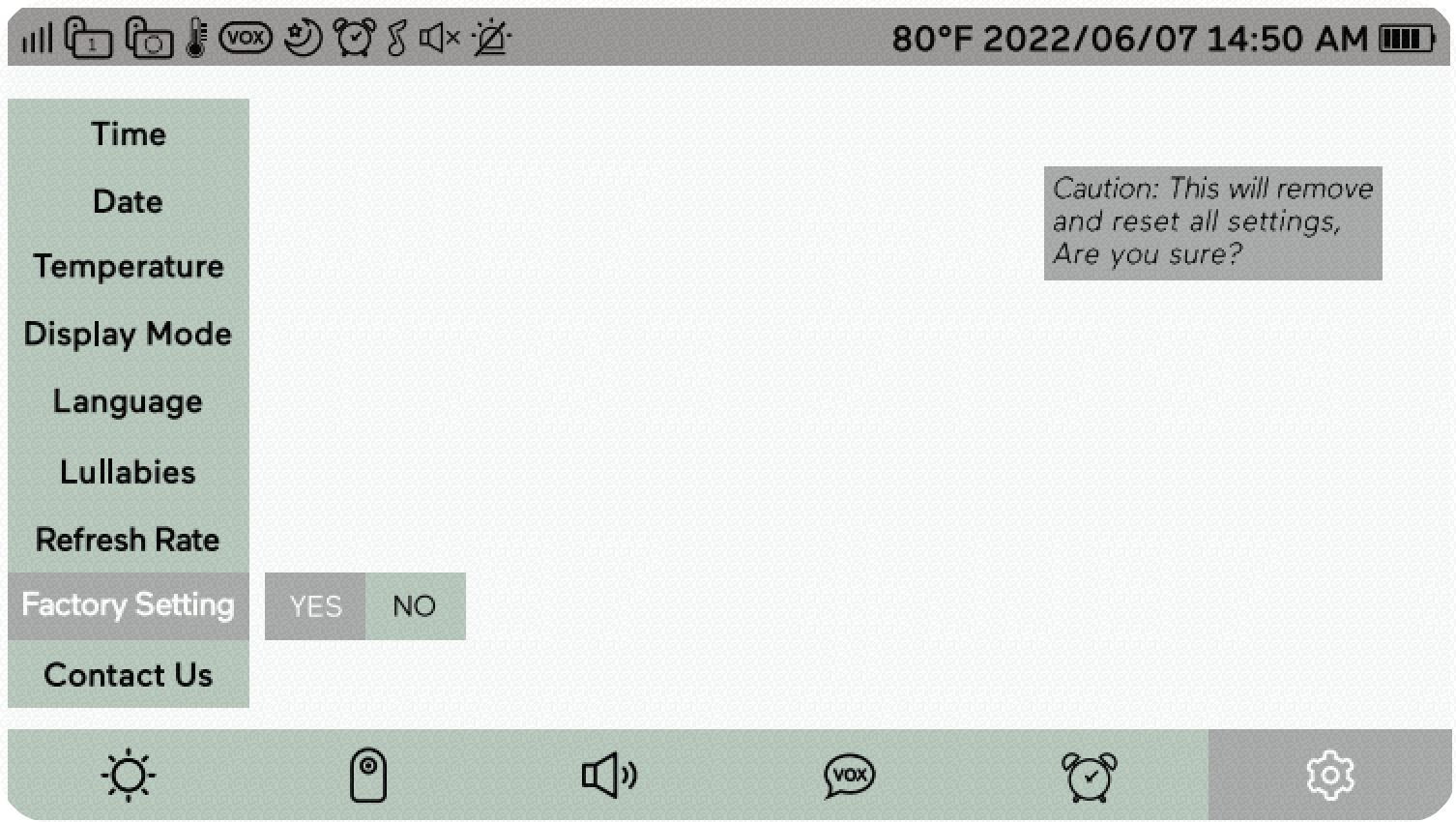

21. Factory Settings
Explanation: System will be restored to default Settings
①Press to enter menu page
②Choose → Factory Setting →
button
③Choose YES→ button to start restoring factory settings
Tips: If the monitor is unresponsive or if there are problems with the display, press the power button for 8 seconds to reset the monitor

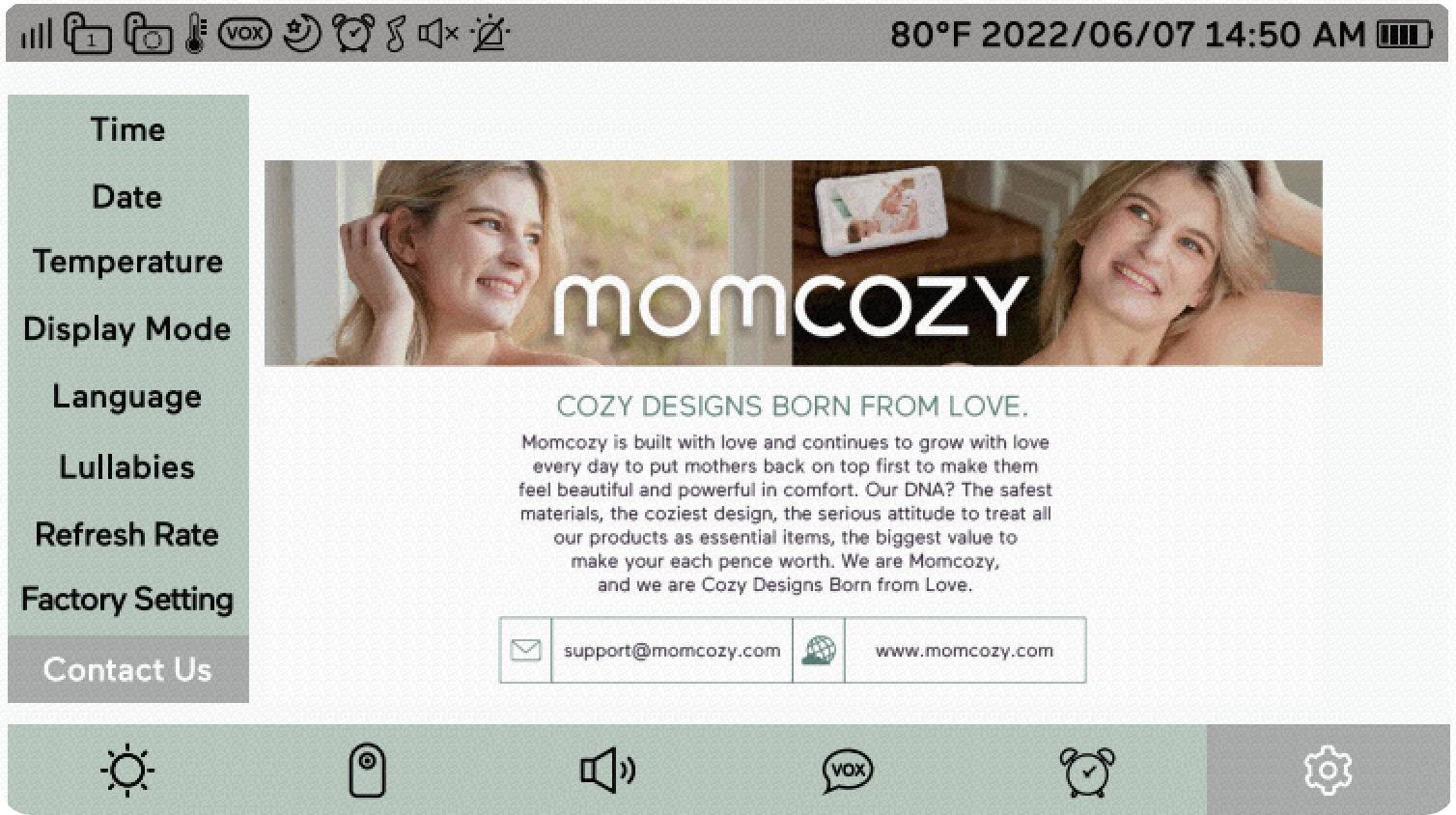

22. Contact Us
①Press to enter menu page
②Choose → Contact US →
button
