S12 pro Quick Introduction
1.Product List
What's in the Box: S12 Pro Quick | ||
NO. |
Name of the item |
Quantity |
1 |
Pump Motor |
2 |
2 |
Milk Collector |
2 |
3 |
Silicone Flange (24 mm) |
2 |
4 |
Silicone Diaphragm |
2 |
5 |
Duckbill Valve |
4 |
6 |
Linker |
2 |
7 |
USB Cable |
2 |
8 |
Flange Size Ruler |
1 |
9 |
Quick Start Guide |
1 |
10 |
User Manual |
1 |

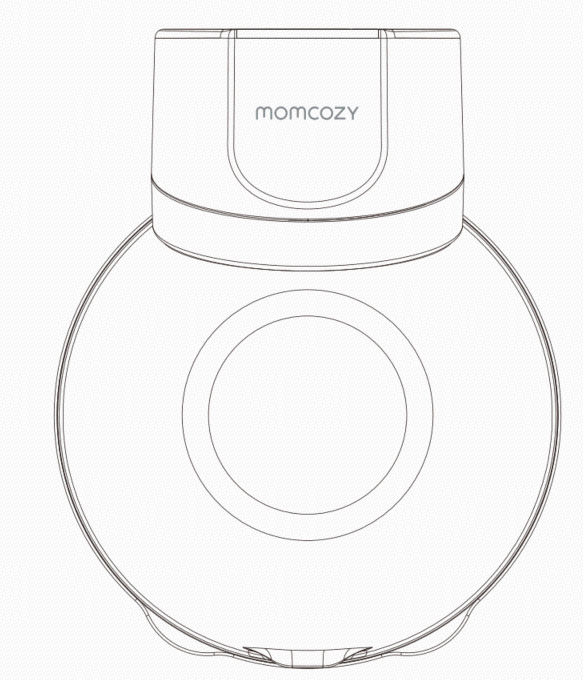

2.Unit Description
The product is mainly composed of main unit and milk collection set.

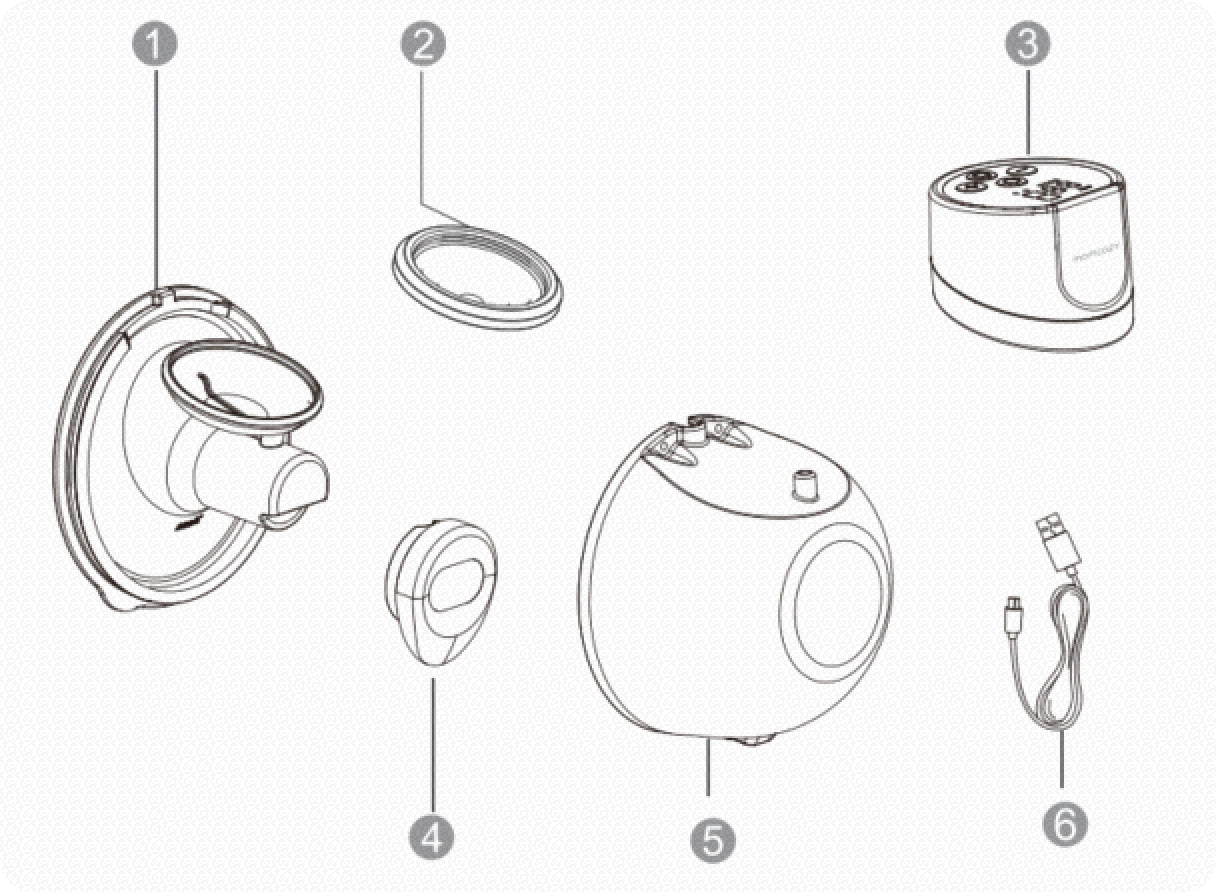

Description Of Breast Pump Unit | ||
NO. |
Item |
Description |
1 |
Flange |
All of these components make up the milk collection set |
2 |
Diaphragm |
|
3 |
Main unit |
Pump motor |
4 |
Silicone valve |
All of these components make up the milk collection set |
5 |
Milk collector (210ml) |
|
6 |
USB Type-C cable |
Input end is USB 2.0 interface, the output end is Type-C interface |
3.Appearance and Functionality

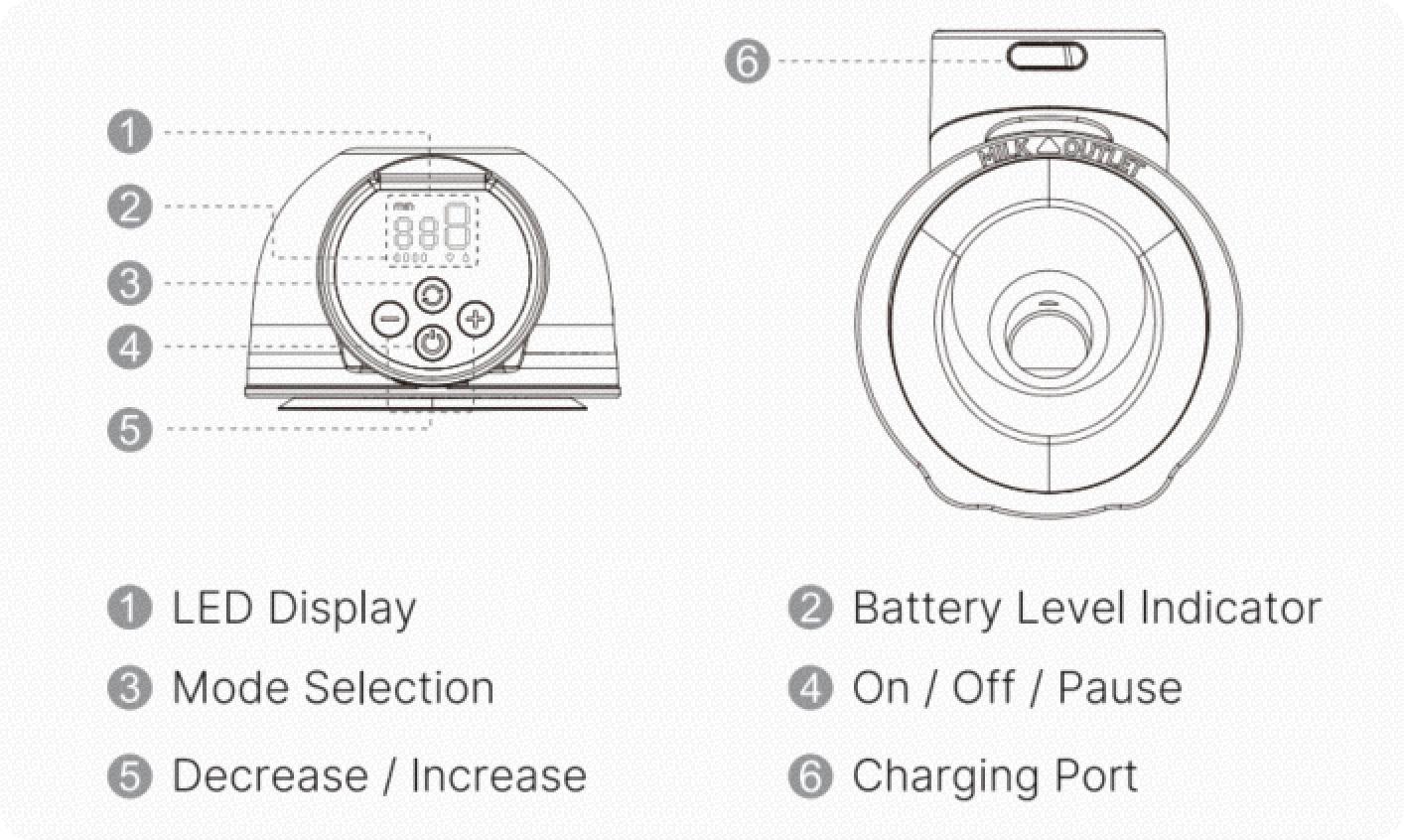

3.1Control Panel
Description Of Control Panel | |
Buttons and LEDS |
Functions |
|
Long press and hold to turn on / off; Short press to pause, then press any button to continue your pumping session. |
|
| Mode selection | |
| Decrease suction strength | |
| Increase suction strength | |
| Stimulation Mode: In this mode, the breast pump begins with a quick and short sucking pattern to get your milk to start flowing. | |
| Expression Mode: The breast pump begins with a slow sucking pattern for milk expression, sucking more deeply and more slowly. | |
| Mixed Mode: In this mode, the breast pump begins with a quick and short sucking pattern and then with a slow and long sucking pattern. | |
| Suction Level Display：There are 9 suction levels to choose from. | |
| Running Time Display | |
| Battery Display | |
Description of Battery Level indicator | ||
Battery display |
Battery state |
Descriptions |
| Low Battery | The first battery indicator bar flashes. | |
| In Charging | When the pump is charged, the battery indicator lights up one by one, displaying an increasing battery percentage from 25%, 50%,75%, to 100%, then switches off and repeats this process until the pump is fully charged. | |
| Fully Charged | Solid White | |
