Workflow:
Installing SD card > Charging&Powering Monitor ＞ Powering the Camera ＞Adding Camera to Monitor ＞Camera Installation ＞Monitor Menu Settings

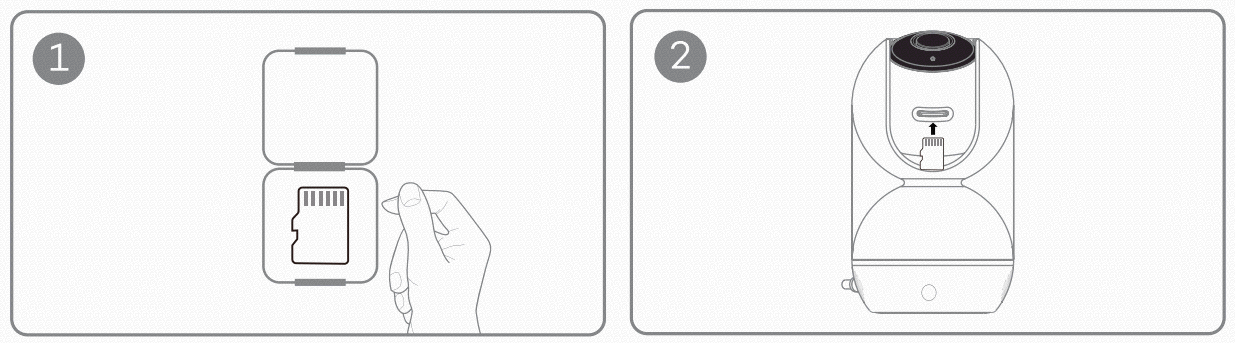

1. Installing SD card
-
①Remove the SD card
②Install the SD card into the SD card slot of the baby camera
2. Charging the Monitor
Please ensure the monitor is fully charged before use.

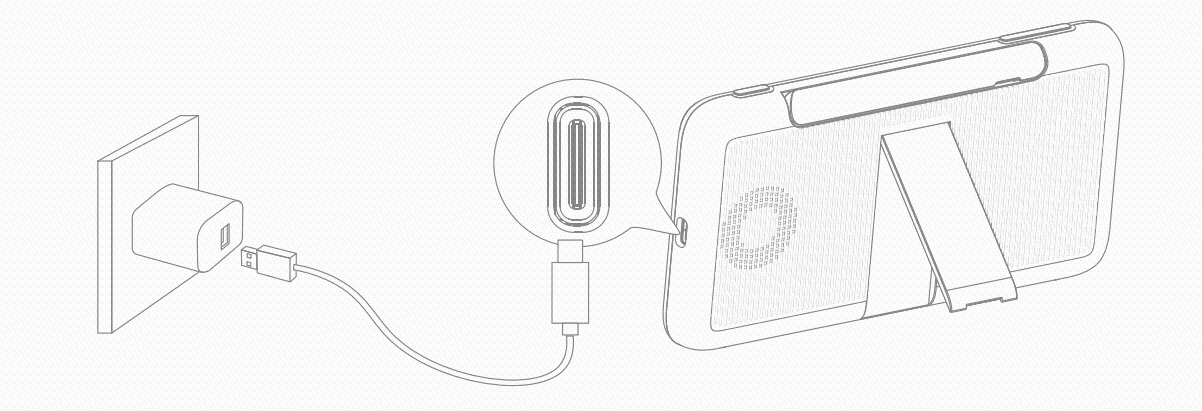

Charging Method:
①Connect one end of the Type-C (1.5m) cable to the Baby Monitor and the other end to the power adapter (5V 2A).
② Plug the adapter into a power outlet.

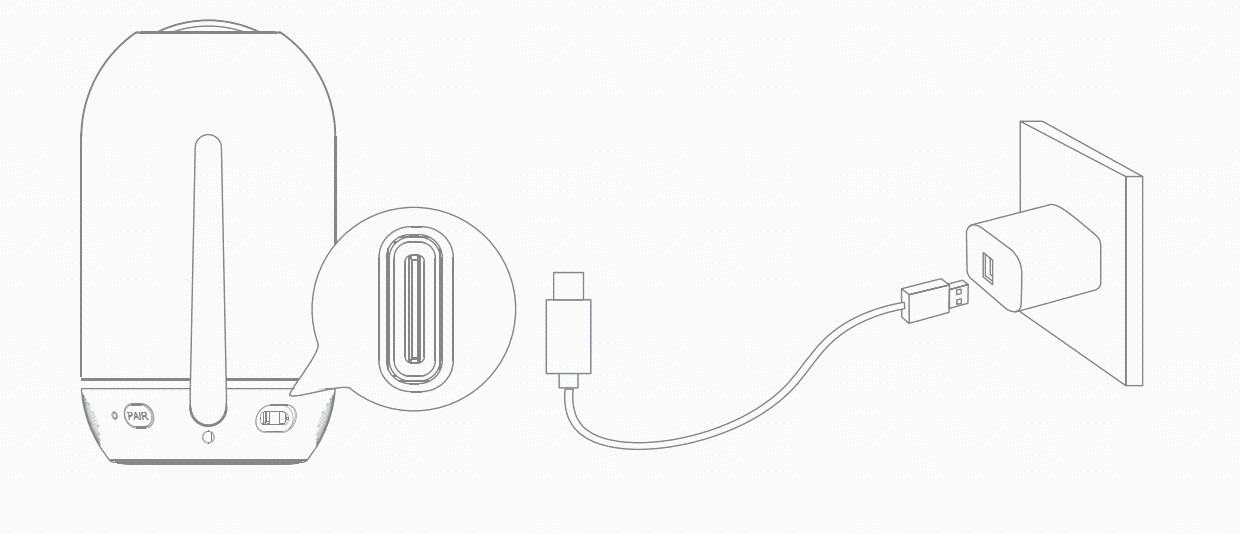

3. Powering the Camera
Tip: After fully charging the Monitor and providing power to the Camera, you can use the camera and monitor.
4. Adding Camera to Monitor
Upon the initial use of the baby monitor, the devices on both ends will automatically pair and connect. If you need to add an additional camera or perform a factory reset, please follow these:

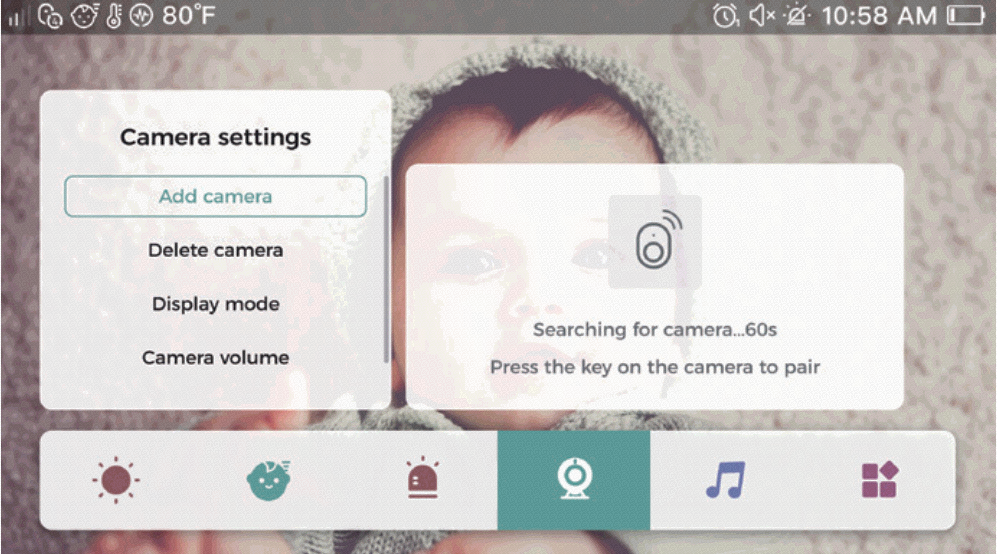

① Press the Menu button to open the menu interface, select [Camera Settings] → [Add Camera]→ Press [OK] to add the Camera.
② Hold the pairing button on the back of the Camera for 1 second until you hear a "beep" prompt.
- When you have multiple cameras connected, long press the [OK] button for 2 seconds to quickly switch between screens. Alternatively, in the [Camera Settings] - [Display mode] interface, set the camera to loop play or split-screen play mode.
- If you need to manually record a specific camera screen, select the button in the bottom right of the monitor to take photos and record videos. Short press for a photo, long press for 3 seconds to start recording, and long press again (for 3 seconds) to stop recording.
Note:
- Please ensure that the version of the Baby Monitor matches the version of the Baby Camera when connecting.
- When the volume of the monitor is too high, the monitor will start to distort loudly when it gets too close to the camera. This is normal and can be avoided by moving the monitor away from the camera.
5. Camera Installation

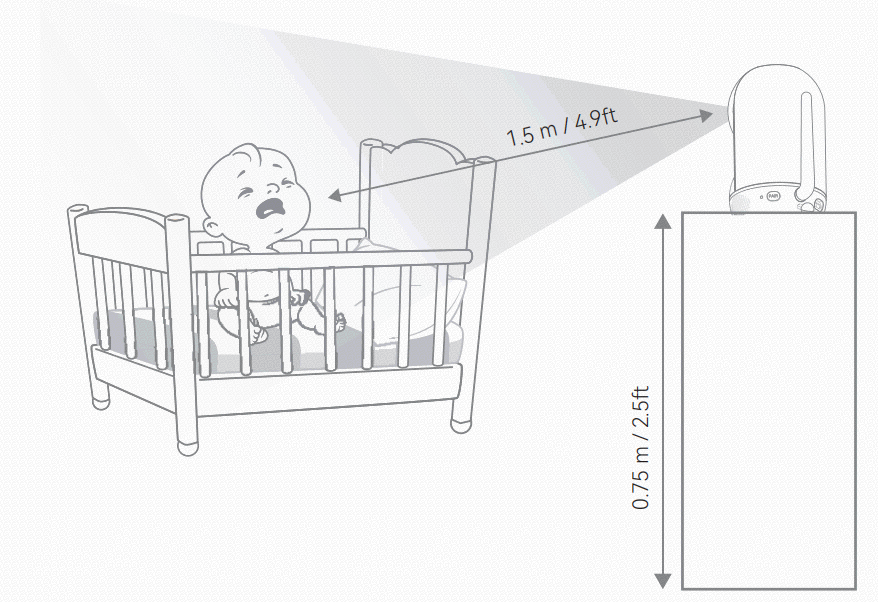

Camera Placement Distance:
①It is recommended to place the camera at a height of2.5ft (0.75m) from the ground.
②The recommended distance between the camera and the baby is at least4.9ft (1.5 meters). Note: When installing and using, ensure that the power cord of the camera is placed where the baby cannot see it.
6. Installing the Camera (Corner Mount):
①Choose for the installation location.
②Place the support stand on the upper wall at the installation location and mark the screw holes with a pencil.
③ Drill 6.0 mm holes in the wall, then insert the expansion plugs into the holes.
④Pass the screws through the installation holes of the support stand, then screw them into the expansion plugs.
⑤Align the camera and place it on the support stand, then tighten the screws securely.
⑥After installation, use the monitor to control and adjust the camera's up/down and left/right angles to find the appropriate angle for monitoring.7. Note: Ensure that the camera is correctly installed and securely fixed.
7. Monitor Menu Settings
①Long press the [Power Button] for 3 seconds to power on.
②Press the Menu button to open the main menu.
