V3 Introduction
1.Product List

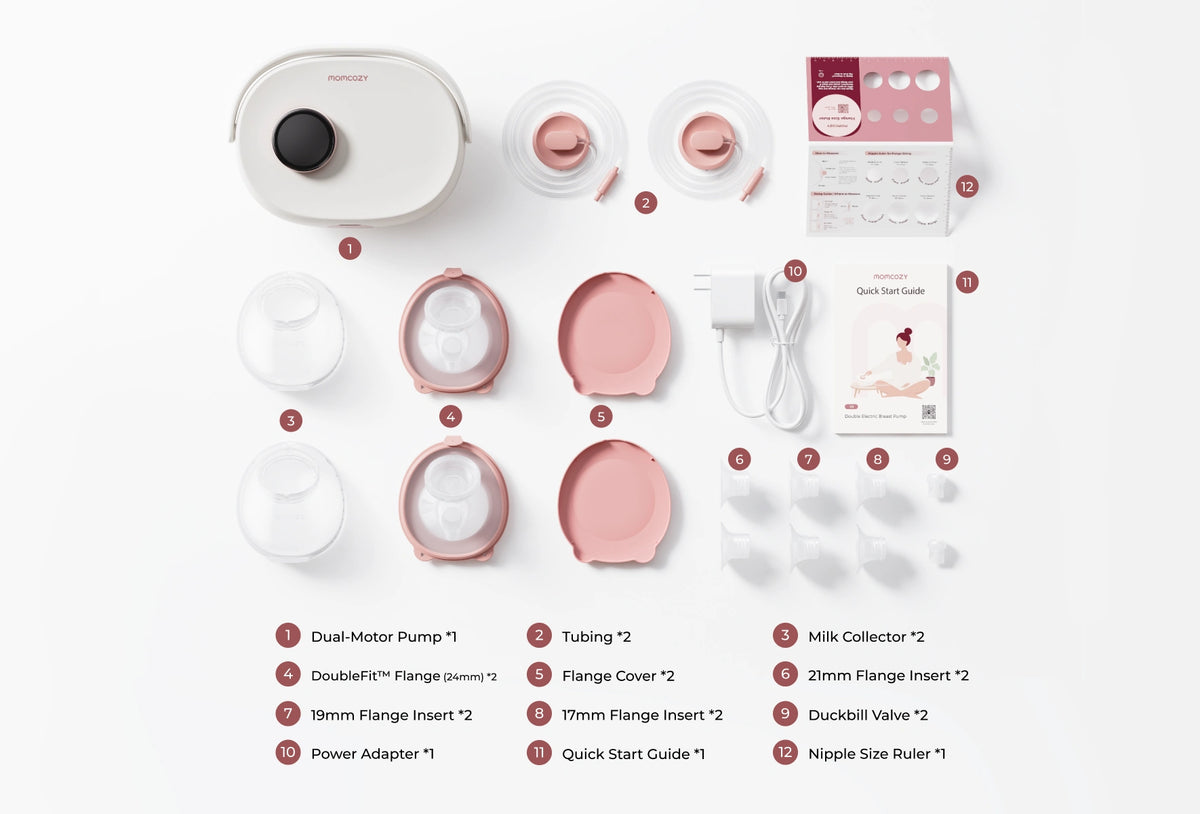

What's in the Box: V3 | ||
NO. |
Name of the item |
Quantity |
1 |
Dual-Motor Pump |
1 |
2 |
Tubing |
2 |
3 |
Milk Collector |
2 |
4 |
DoubleFitTM Flange (24mm) |
2 |
5 |
Flange Cover |
2 |
6 |
21mm Flange Insert |
2 |
7 |
19mm Flange Insert |
2 |
8 |
17mm Flange Insert |
2 |
9 |
Duckbill Valve |
2 |
10 |
Power Adapter |
1 |
11 |
Quick Start Guide |
1 |
12 |
Nipple Size Ruler |
1 |
2.Unit Description
The product is mainly composed of main unit and milk collection set.
Description Of V3 Breast Pump | ||
NO. |
Item |
Description |
1 |
Flange Cover |
Dust protection for unused flange |
2 |
24 mm DoubleFitTMFlange |
Creates an airtight seal against breast skin; can be fitted with smaller flange inserts. |
3 |
Milk Collector (230 mL) |
Holds expressed breast milk. |
4 |
Duckbill Valve |
Maintains stable vacuum and prevents backflow. |
5 |
Main Pump Motor Unit |
Houses two independent motors generating adjustable vacuum; features color display and knob control. |
6 |
Tubing |
Connects the main pump motor unit to each milk collector to transmit vacuum. |
7 |
30W Power Adapter |
Supplies power to the main pump unit. Input: 100–240Vac 50/60Hz; Output: DC 15V⎓2A. |
Additional Included Accessories：
- 17mm, 19mm, 21mm flange inserts
- Nipple Size Ruler
- Quick Start Guide
- User Manual / Safety and Warranty Guide
3.Appearance and Functionality
3.1Control Panel Button & Display Functions
Description Of Control Panel | ||
| NO. | Control Element |
Core Function |
1 |
Color Display Screen |
Shows current pumping mode, suction level (left/right), suction curve, session duration, speed level, and Bluetooth connection status. Auto-adjusts brightness via ambient light sensor. |
2 |
Knob |
Press and hold to power on/off; Short press to confirm/start/pause; Rotate to adjust suction level/switch modes or programs. |
3 |
Stimulation Button |
Short press to switch to Stimulation Mode. Fast, gentle suction to trigger let-down. |
4 |
Expression Button |
Short press to switch to Expression Mode. Slow, deep suction for efficient milk expression. |
5 |
Speed Button |
Short press to enter speed adjustment. There are 5 speed levels, and both sides are adjusted simultaneously. |
6 |
Start / Pause Button |
Press to start or pause the pumping session. |
7 |
Left (L) Button |
Adjusts left-side suction level (Stimulation: 5 levels; Expression: 15 levels). |
8 |
Right (R) Button |
Adjusts right-side suction level (Stimulation: 5 levels; Expression: 15 levels). |
Note: The pump automatically pauses after 30 minutes of operation. To perform a factory reset, press and hold the Start/Pause + Speed buttons simultaneously for 5 seconds.
