Introduction
1.Product List
What's in the Box: D8 | ||
NO. |
Name of the item |
Quantity |
1 |
Baby Bottle Washer |
1 |
2 |
Power Cable |
1 |
3 |
Drain Hose |
1 |
4 |
User Manual |
1 |
5 |
Nipple racks |
4 |
6 |
Breast Pump Spray Racks |
4 |
7 |
Descaling Tablets |
4 |
8 |
Detergent tablets |
60 |

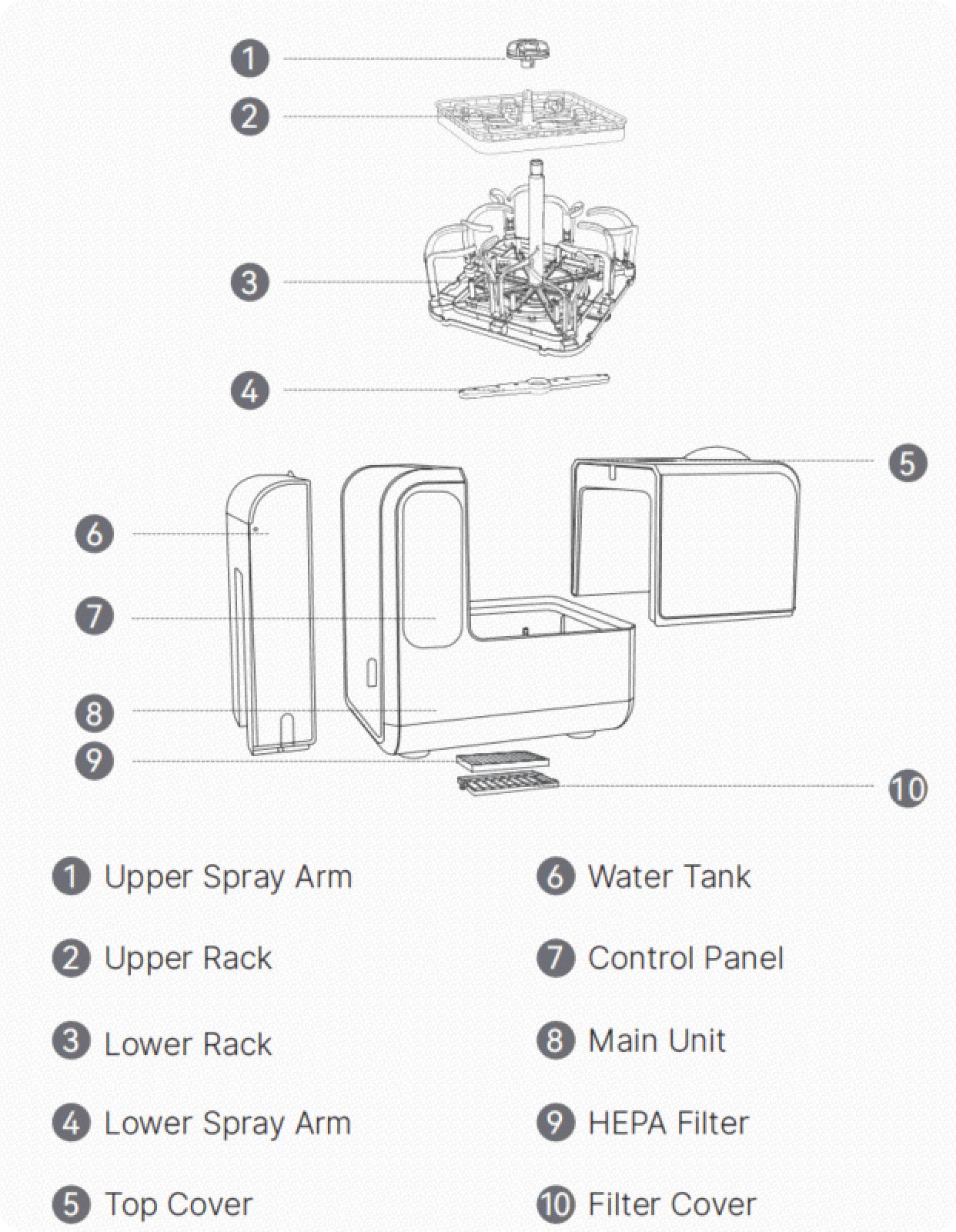

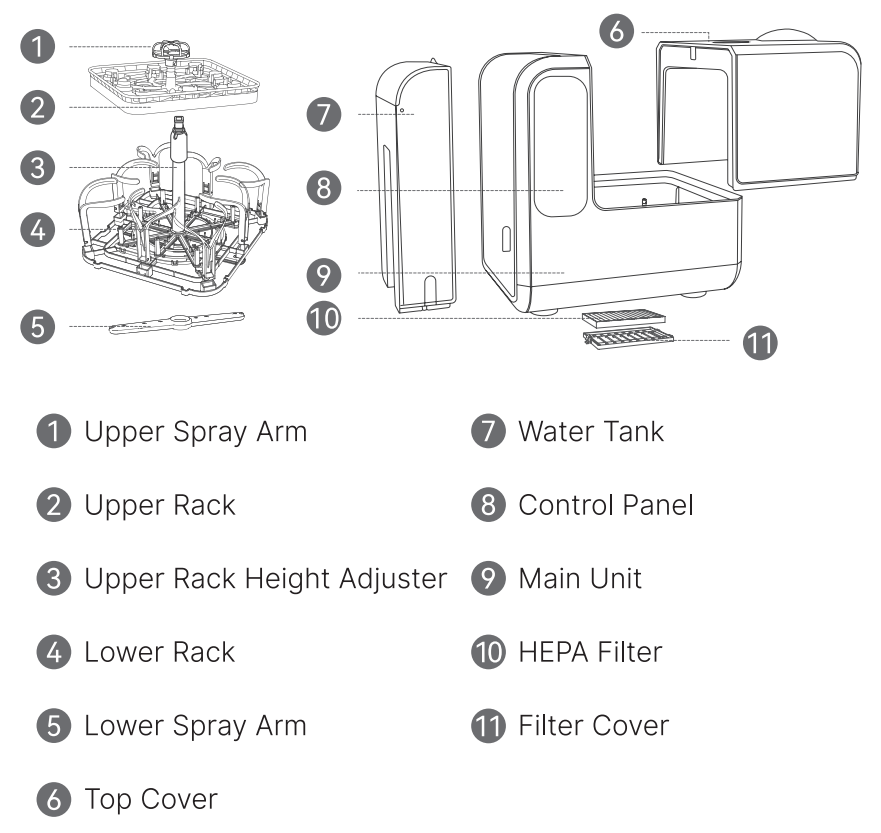

2.Main structural components
Description Of Product Strutural | ||
NO. |
Item |
Description |
1 |
Upper Spray Arm | Spray pressurized water to clean the inner and outer walls of items, achieving all-round cleaning, enhancing the cleaning effect, and effectively removing stains. |
2 |
Upper Rack | Used to place small items that need to be cleaned, such as nipples, bottle caps, small toys, flanges, etc. |
3 |
Lower Rack | Used to place bottles or cups that need to be cleaned, as well as to hang accessories that need to be cleaned such as nipples and flanges. Allocate space reasonably. |
4 |
Lower Spray Arm | There is an oblique water outlet under one side of the lower water spray arm. After the water pump injects water into the spray arm from the middle water column, part of the water flow will rush out from this outlet, forming a thrust to drive the lower water spray arm to rotate. |
5 |
Top Cover | Prevent water from splashing during the cleaning process, and provide a relatively closed environment for disinfection, drying, and storage procedures to ensure that the internal environment is relatively sterile. |
6 |
Water Tank | Water required for storing cleaning items. |
7 |
Control Panel | set the cleaning mode as needed through the control panel, allowing the cleaning and disinfection machine to perform operations according to the mode program. |
8 |
Main Unit | It includes important components such as a control panel, chips, heating modules, water pumps, and power jacks. |
9 |
HEPA Filter | The filter box with an H13 HEPA filter installed at the bottom of the cleaning machine can filter the air from the bottom air inlet, help the cleaning machine eliminate odors during storage, and keep the air inside the equipment fresh. |
10 |
Filter Cover | |

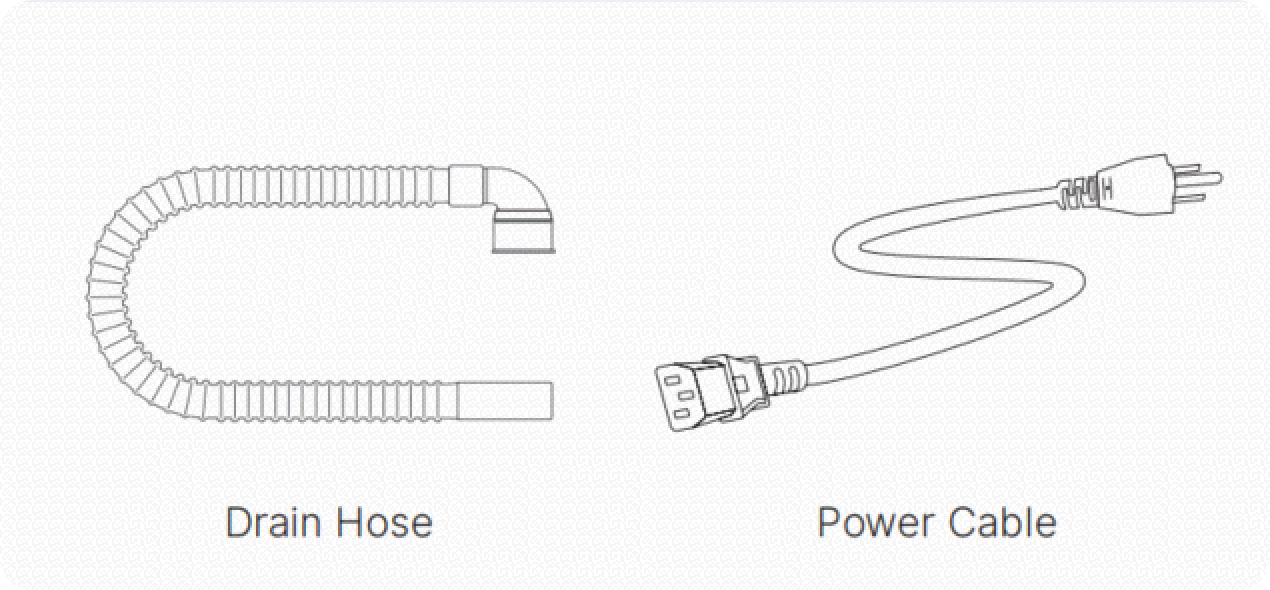

3.Parts List
The product parts include one drain hose and one power cable.
Drain hose: Discharges the cleaned sewage to ensure the interior of the equipment is clean and hygienic.Equipped with a suction cup, which can be used to fix the position of the drain pipe.
Power cable: Provides the electricity required for operation to ensure the stable operation of the equipment.
4.Appearance and Functionality

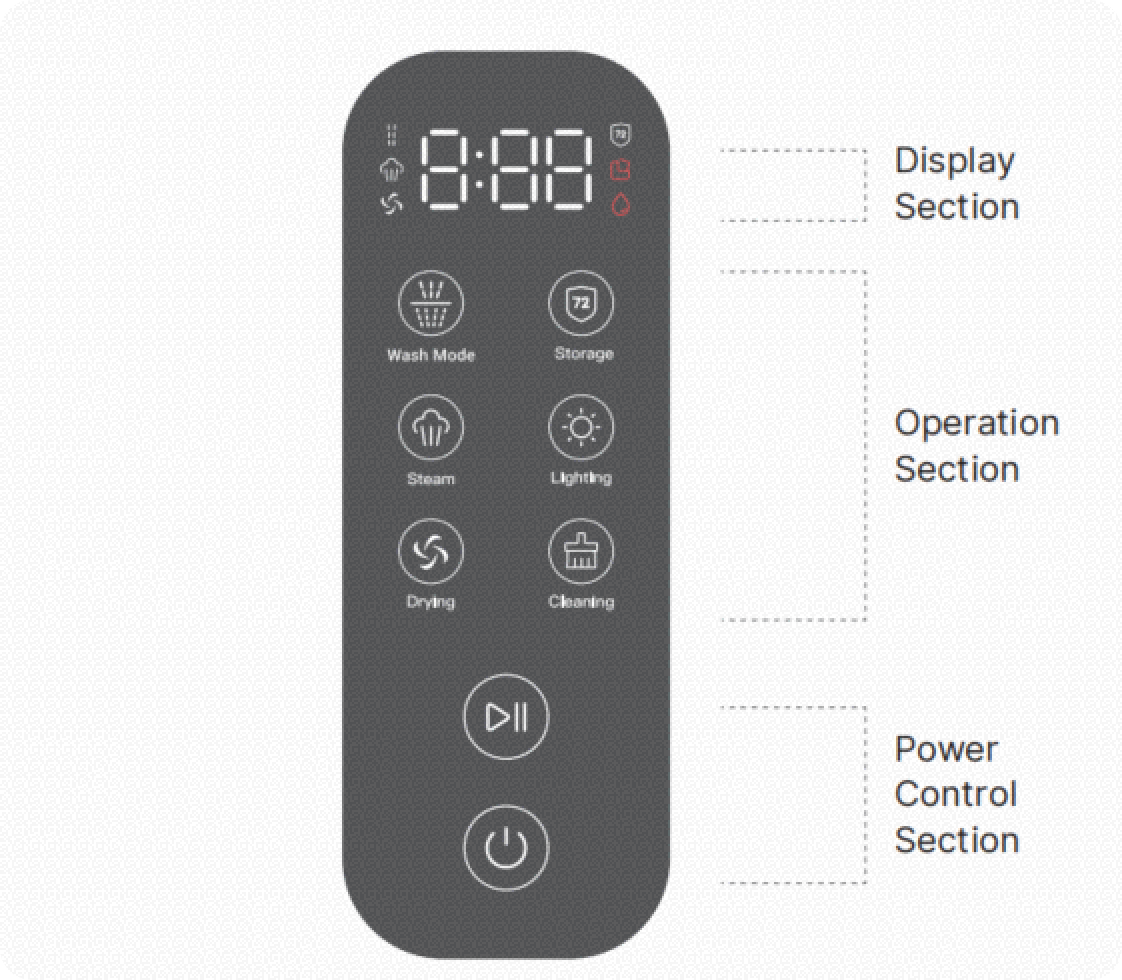

4.1.Control Panel
Description Of Control Panel | ||
Area |
Icons |
Display |
|
Power
|
Power Button: Press and hold to turn on/off the device. | |
| Start/Pause Button: Press to start or pause the current operation. | ||
Operation |
Wash Button: Press to cycle through the options: "Rapid Wash" →"Normal Wash"→ "Deselect". | |
| Steam Sterilization Button: Press to toggle Steam Sterilization mode on/off. | ||
| Drying Button: Press to toggle Drying modeon/off. | ||
| 72-Hour Fresh Air Storage Button: Press to toggle Storage mode on/off. | ||
| Light Button: Press to turn the night light on/off. | ||
| Self-Cleaning Button: Press totoggle Self-Cleaning mode on/off. | ||
Display |
Rapid Wash Indicator: Lights steady when selected, flashes during operation. | |
| Normal Wash Indicator: Lights steady when selected, flashes during operation. | ||
| Steam Sterilization Indicator: Lights steady when selected, flashes during operation. | ||
| Drying Indicator: Lights steady when selected, flashes during operation. | ||
| 72-Hour Fresh Air Storage Indicator:Lights steady when selected, flashes during operation. | ||
| Top Cover Alert: Red light turns on if the top cover is not closed properly or there is an anomaly, and the machine stops working. | ||
| Water Shortage Alert: Red light turns on if water tank level is low; appliance and the machine stops working. | ||
Note: The washer defaults to Normal Wash + Steam Sterilization + Drying + Storage mode upon power-on.
First Use
For first-time use, watch this video carefully: How to use Momcozy DeepClean Baby Bottle Washer|D8
