1.Installation
Assemble the cleaning rack from bottom to top according to the pictures (Ensure the rack is fully assembled before starting the cleaning cycle.)
|

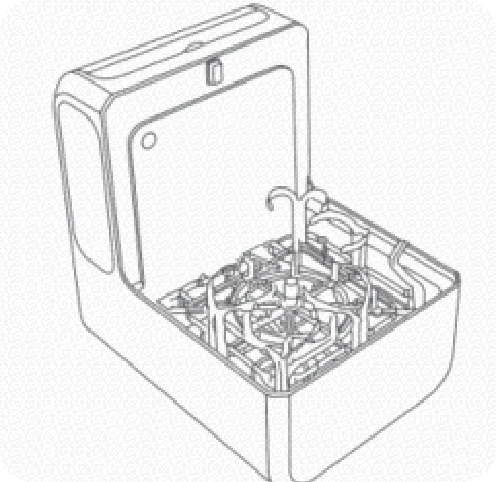

1)Install the lower spray arm,making sure the "UP" text faces upward. |

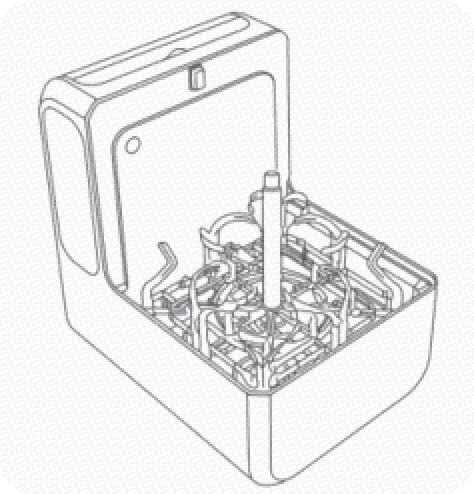

2)Install the lower rack. |
|
3)Install the bottle holders or nipple holders (8 bottle holders included by default). To replace with nipple holders, press the bottle holder clips to remove them from the lower rack,then install the nipple holders as needed. |
4)Install the connecting shaft onto the lower rack. |
|

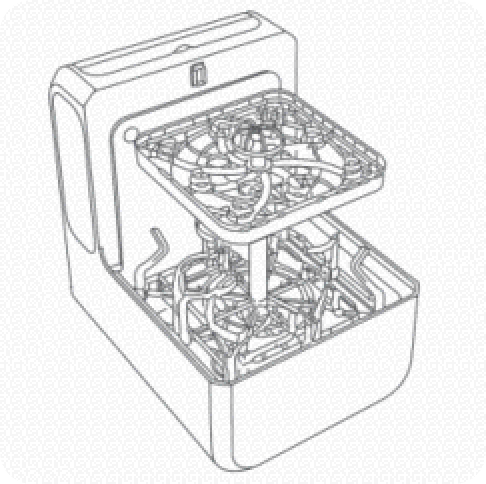

5)Install the upper rack onto the connecting shaft. |

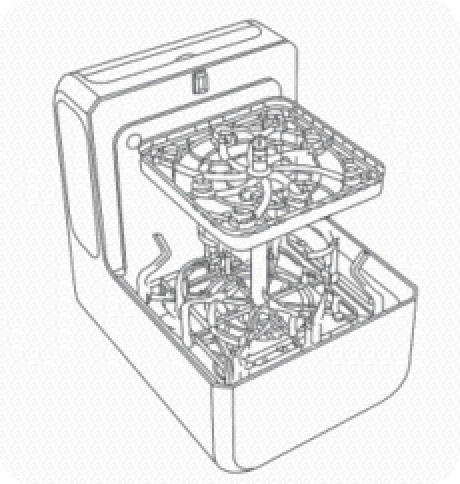

6)Rotate and secure the upper spray arm assembly onto the upper rack. |

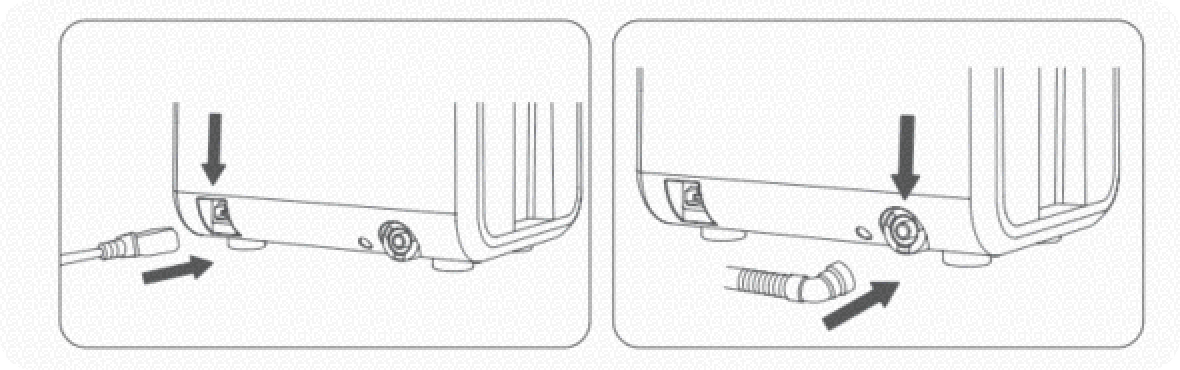

- Take the drain hose and firmly connect its adapter end to the drain port on the back of the bottle washer.
- Plug the power cord into the socket on the product.
2.Connection

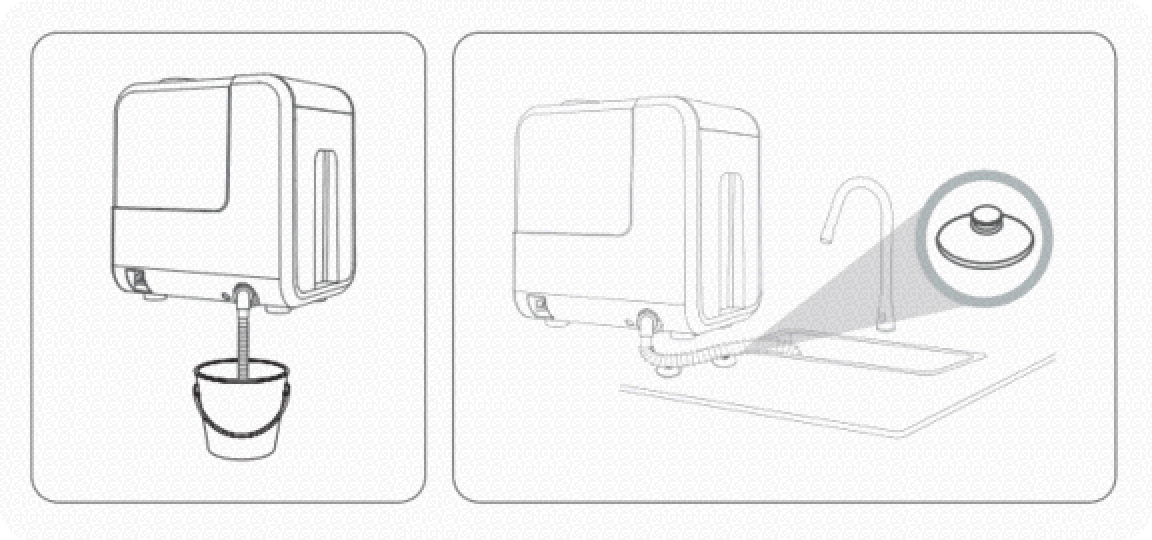

Place the other end of the drain hose into a suitable drainage container or sink.
3.Filling the Water Tank

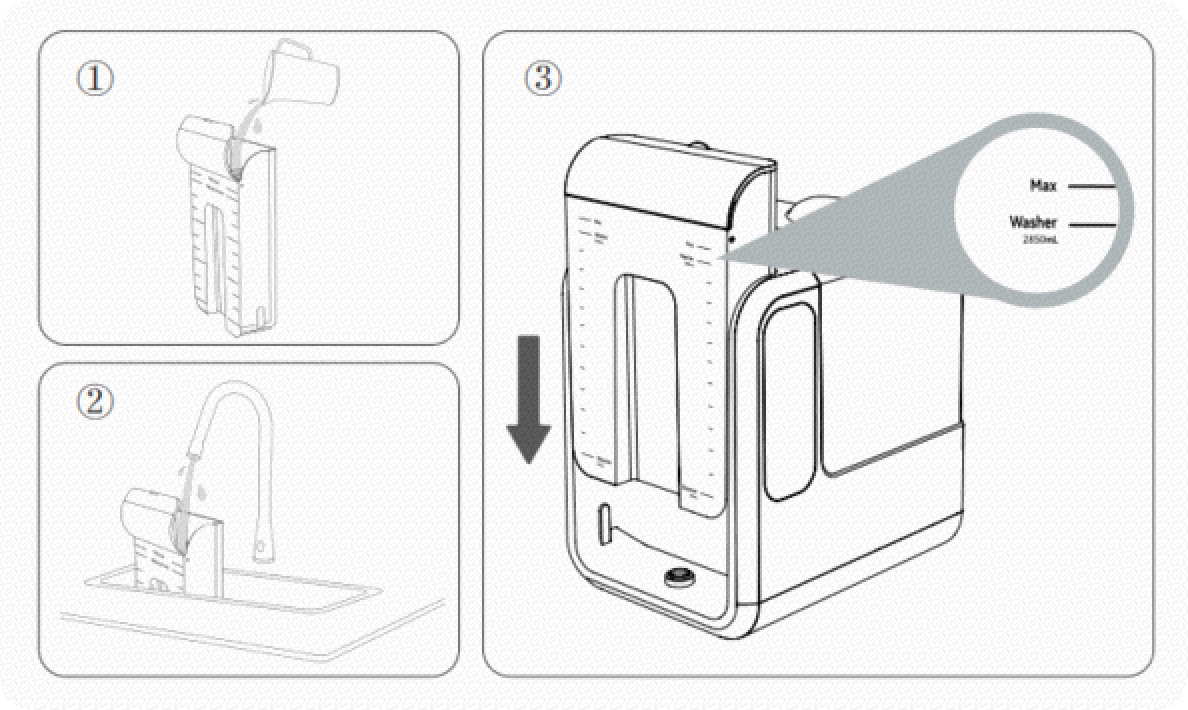

Method 1: Open the water tank lid and pour an appropriate amount of purified or distilled water directly into the tank.
Method 2: Remove the water tank, fill it with an appropriate amount of water, and then return it to its original position.
Tip: When adding water, ensure the water level reaches the MAX fill line indicated on the tank.
