Smart Baby Sound Machine Introduction

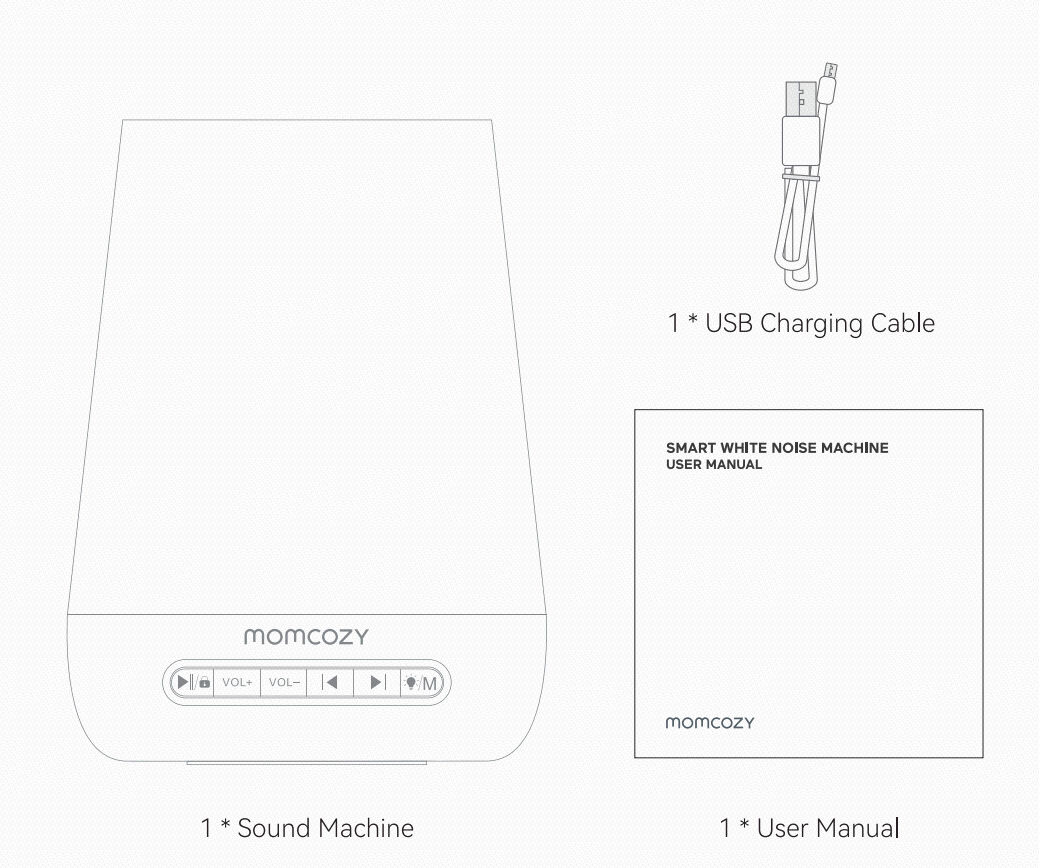

1. Package List

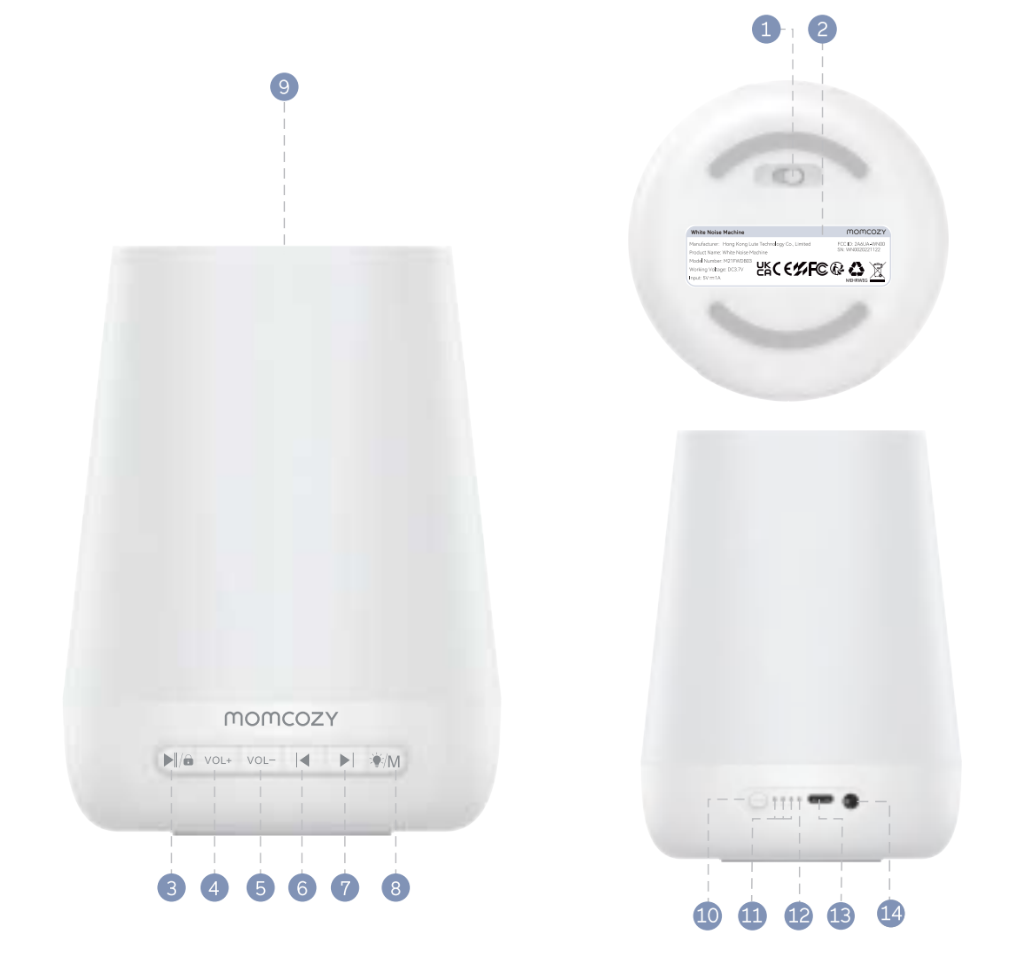

2. Appearance and Functions
| Function | Description | |
1 |
Power |
Connect the charging cable to the device, then plug it into the power outlet. Swipe power button to ON/OFF to turn on/off the device. |
2 |
Product label |
- |
3 |
Play/Pause/Child Lock |
Short press to pause/play the sound Long press and hold for 3 seconds to turn on/off the child lock. You will see a blinking white light(11) when turning on the child lock. |
4 |
Volume"+" |
Press the VOL+/VOL-to increase/decrease the volume. Long press for quick change in volume. Short press for one increment change. |
5 |
Volume"-" |
|
6 |
Previous Sound |
Press to go to the previous/next sound and select one you want to hear. This sound machine provides 34 sounds. |
7 |
Next Sound |
|
8 |
Light Mode/Scene Mode |

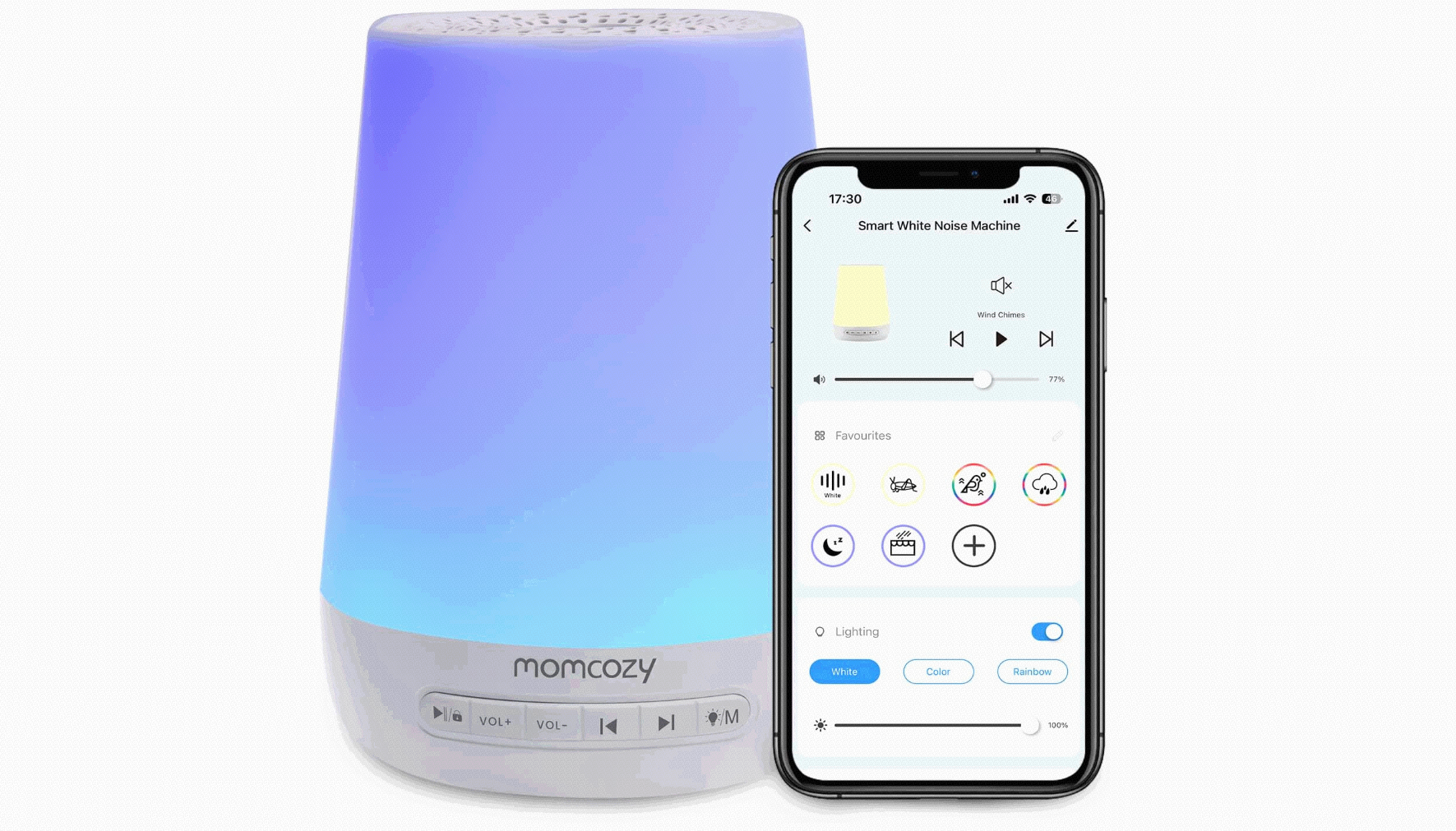

Short press to cycle through colors. You can select a solid color, warm white, and rainbow options where the color changes automatically. Long press and hold for 3 seconds to change from your favorite ambiance. Download the Tuya Smart app to customize your favorite ambiance. |
9 |
Brightness Adjustment |
Tap the upper metal cover to turn on/off the light. Long press and hold the upper metal cover to adjust brightness(You can't change brightness in rainbow mode) |
10 |
Timer/App Pairing |
Short press(10) to set the timer for 30/60/90mins/timer off and the following will occur: The timer indicator(11) for 30/60/90mins will be solid white respectively. Long press(10) to enter APP pairing mode and the following will occur: Indicator(12) will be flashing blue when entering APP pairing mode; Indicator(12) will be solid blue after a successful connection. |
11 |
Indicator |
|
12 |
Battery Indicator |
Indicator(12) will be solid red when machine is charging; Indicator(12) will be solid green when the machine is fully charged; Indicator(12) will be solid blue when the machine is working normally. |
13 |
Charging Port |
- |
14 |
3.5 mm Headphone Jack |
Plug your headphones. |
