Introduction
1.Product List

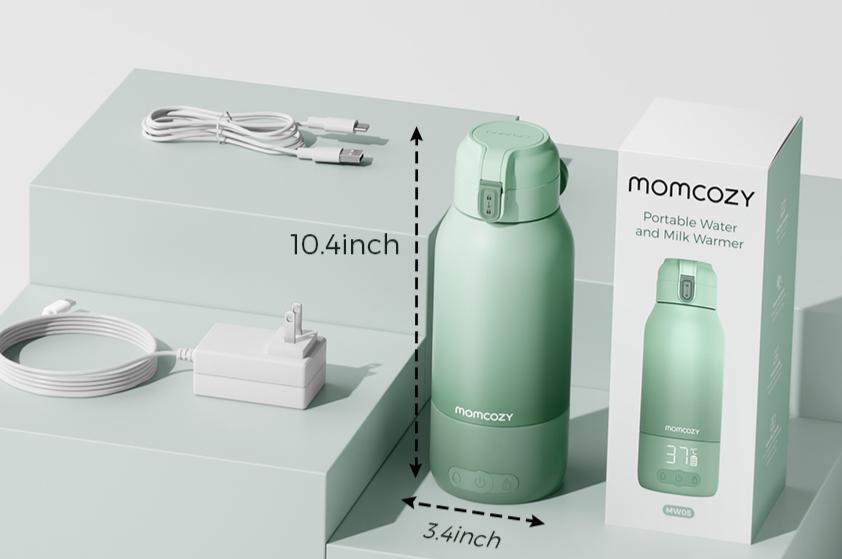

What's in the Box: MW05 | ||
NO. |
Name of the item |
Quantity |
1 |
Milk and water warmer |
1 |
2 |
Lid |
1 |
3 |
36W Super-Fast Power Adaptor |
1 |
4 |
USB Type-C charging cable |
1 |
5 |
User manual |
1 |
2.Unit Description
Bottle body：The stainless steel inner container ensures safe heating of liquids. Combined with the outer bottle body, it forms a good heat insulation effect, preventing heat loss and scalding users. The top cover has a locking function to prevent liquid leakage.
Bottle cap：Push the lock catch upward to unlock the cover, then press the lock catch to open the top cover.After closing the cover, push the lock catch downward to lock the cover.

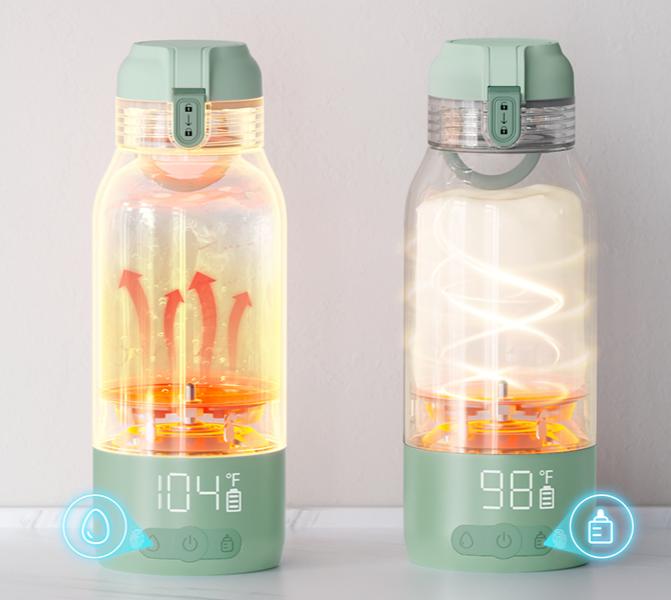

Heating plate & temperature sensor：Electrical energy is converted into thermal energy to heat the liquid inside the milk warmer to the set temperature. A built-in temperature sensor can detect the liquid temperature in real-time.
Control Panel：The control panel is the main part of the interaction between the user and the device. To realize the input of customer function instructions, enabling the milk warmer to work according to the selected function.
3.Appearance and Functionality

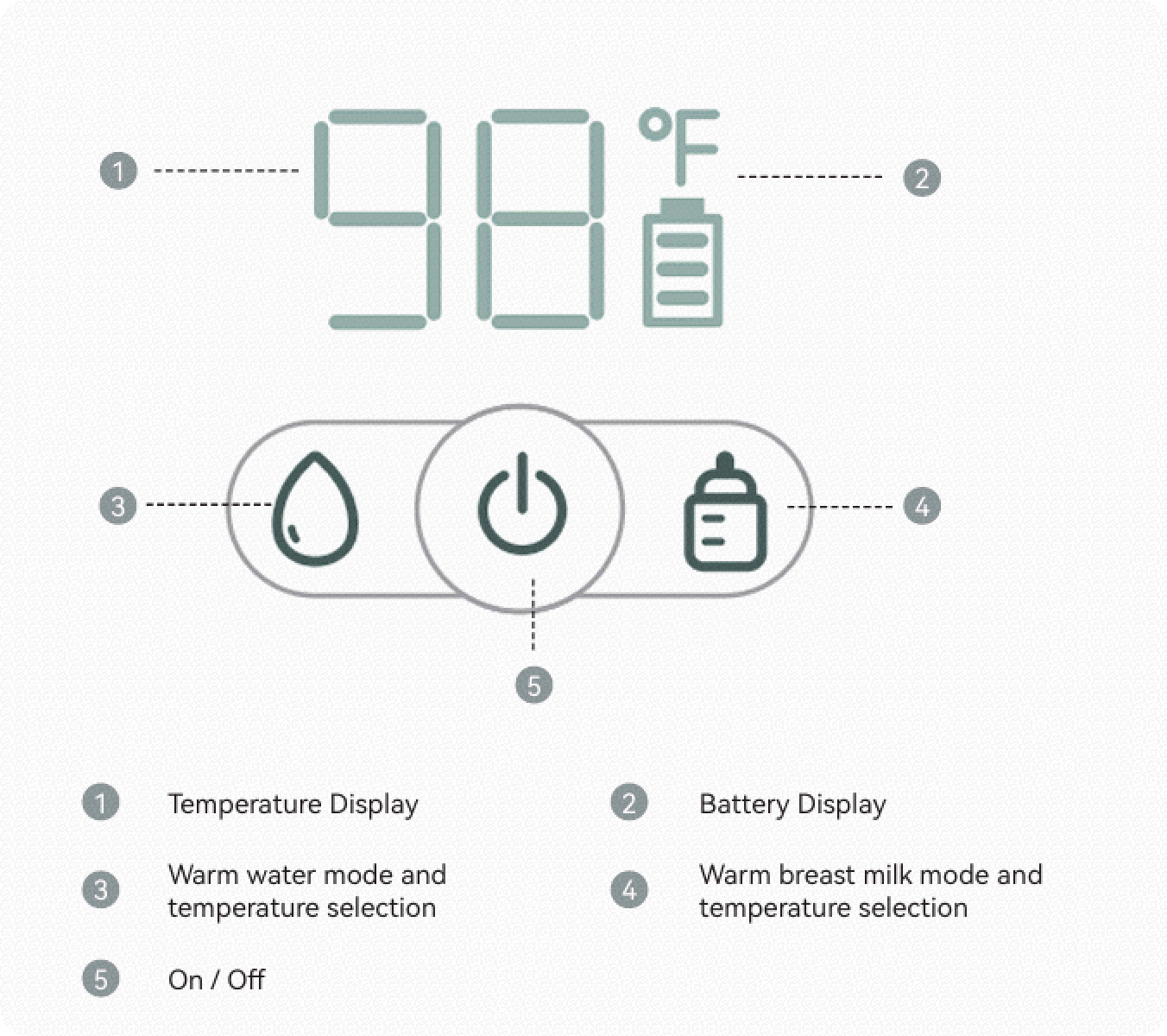

3.1.Control Panel
Description Of Control Panel | |||
NO. |
Buttons and LEDS |
Functions |
Description |
1 |
Temperature Display |
The temperature unit cannot be adjusted. The US-spec bottle warmer displays in ℉，and the EU-spec bottle warmer displays in °C. | |
2 |
Battery Display |
During charging, the grid that is not fully charged will flash, and the grid that is fully charged will stay on. | |
3 |
Warm water mode and temperature selection |
Short Press once to enter warm water mode, and Short Press again to select the target heating temperature. | |
4 |
Warm breast milk mode and temperature selection |
Short Press once to enter warm milk mode, and Short Press again to select the target heating temperature. | |
5 |
On / Off |
Short Press to power on/off |
|
