Introduction

1.Product List

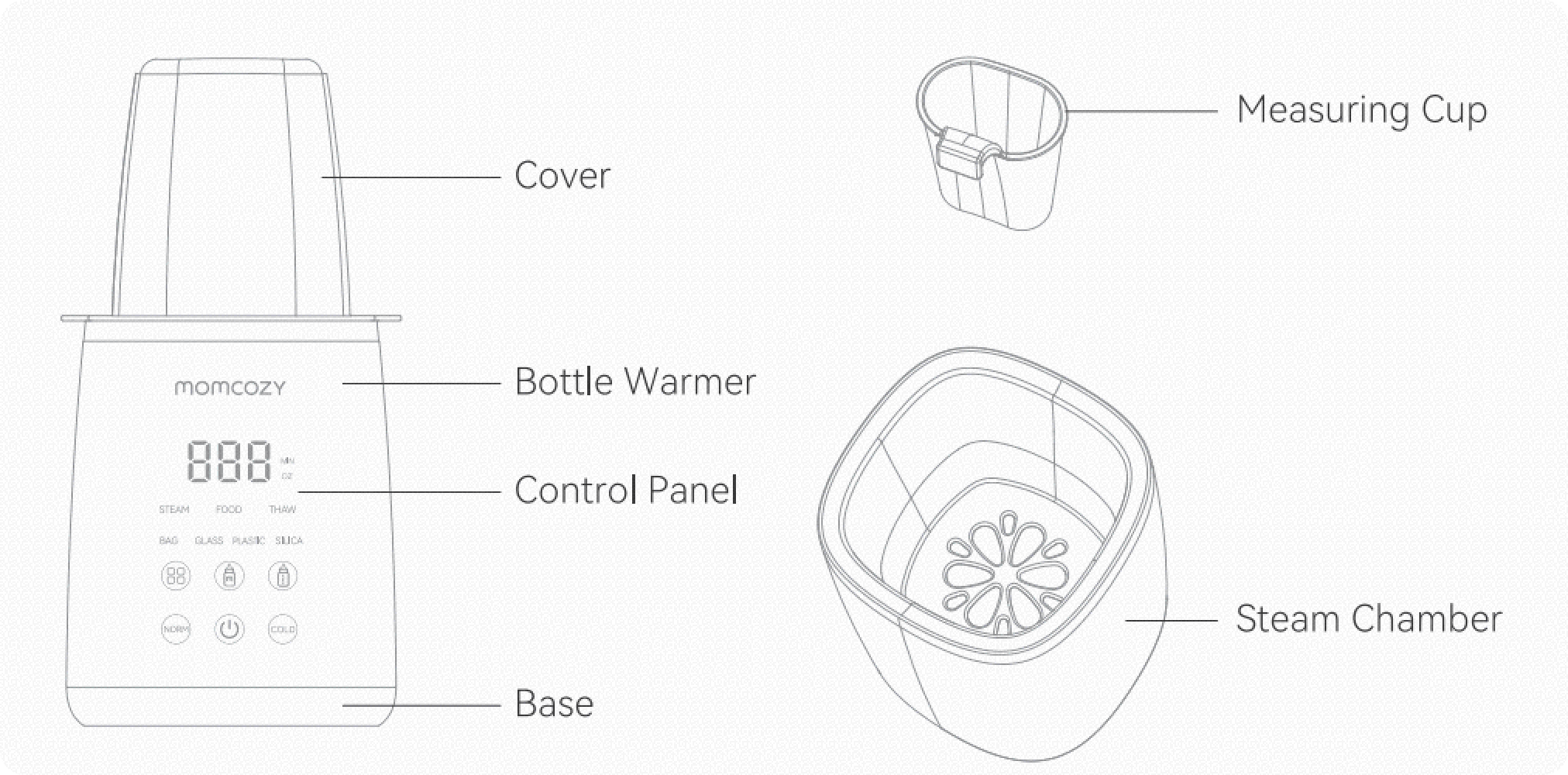

Description Of Unit
NO.	Item	Description
1	Bottle warmer	The machine body is the core of the entire device, carrying all functional modules such as the LCD screen, chip, power supply, heating chamber, etc., to ensure that the device runs stably according to the settings.
2	Control Panel	The control panel is an important part that enables the user to select the desired functions and make the warmer work according to the selected function.
3	Cover	Prevent dust from entering during steam sterilization. The hole above the top cover releases steam pressure to prevent the top cover from being pushed open by steam during steam sterilization.
4	Base	/
5	Measuring Cup	The water measurement cup is used to accurately measure the amount of water required for heating to ensure the heating effect and safe operation of the device.
6	Steam Chamber	/

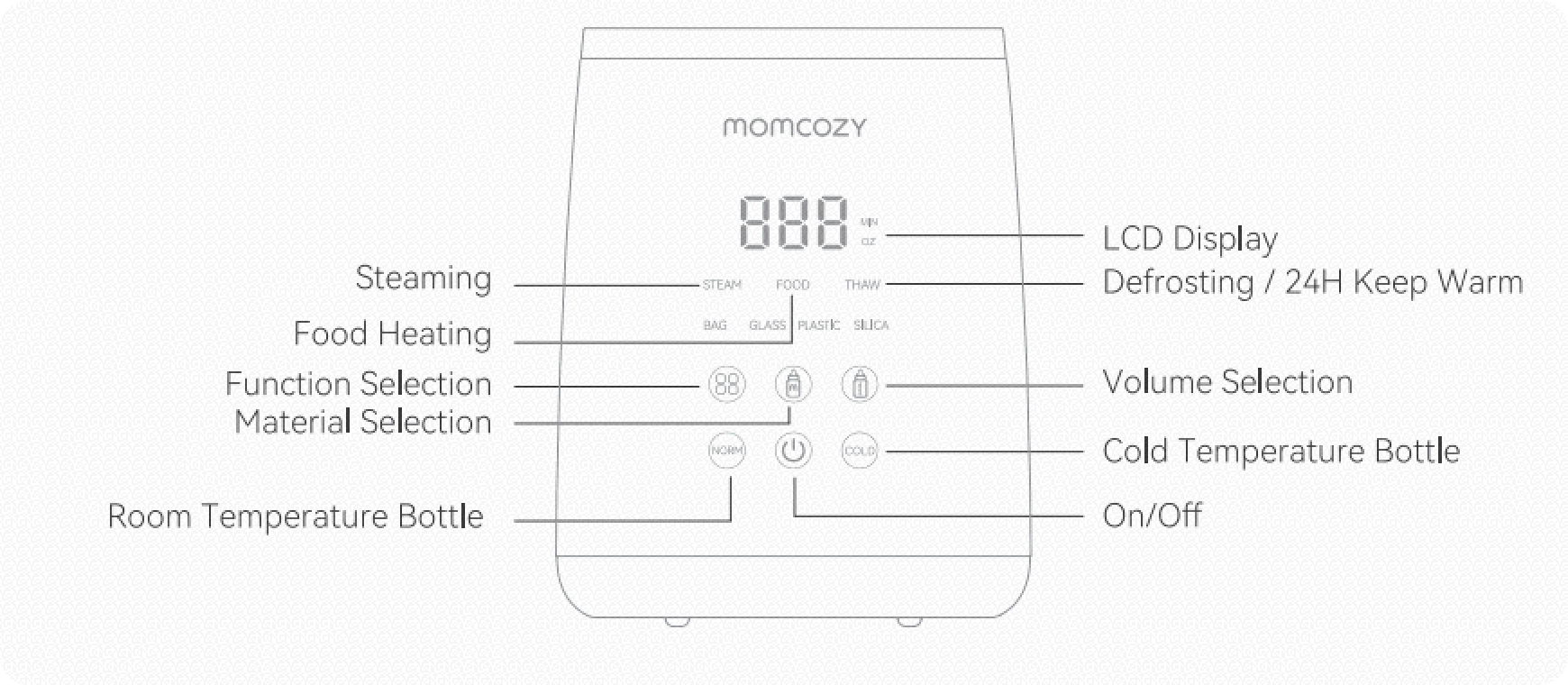

Description Of Control Panel
NO.	Buttons and LEDS	Functions	Description
1		Function Selection	Short-press the button to choose among the following functions: 24-hour constant warming, steam sterilization,complementary food heating, and thawing.
2		Container material selection	Short-press to select the container material.
3		Milk volume setting	Short-press to set the amount of milk that needs to be heated.
4		Heating from Normal Temperature	Short-press to select the option for heating milk from ambient temperature (68 - 77°F/20 - 25°C)
5		Power button	a. Short-press to turn on the device. Next,long-press for 2-3 seconds to turn off. b. Short-press the power button to start or stop heating.
6		Heating from Low Temperature	Short-press to select the option for heating milk from low temperature (39-43°F/4-6°C).

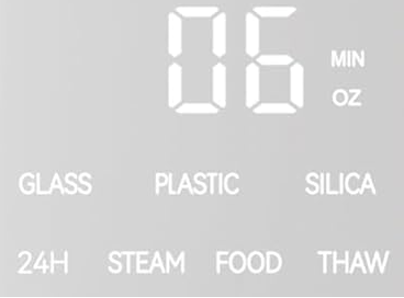

7		Screen Display	Heating time display：Once the program is started, the screen will display the heating time and count down. This function enables users to know the heating progress in time.
			Volume selection display：The screen displays the milk volume as users make their selections,enabling them to heat the milk more accurately according to their needs. For each kind of container material, there are limitations on the volume of milk that can be selected for heating: Glass: 2-9oz Silicone: 2-8oz Bag: 2-6oz Plastic: 2-11oz
			Container material & function mode display: Displays the selected container material and function mode, so that customers can accurately set the milk warmer.
