Introduction
1.Product List
What's in the Box: MW02 | ||
NO. |
Name of the item |
Quantity |
1 |
Bottle warmer |
1 |
2 |
Bottle basket |
1 |
| 3 | Measuring Cup | 1 |
4 |
Power cord plug |
1 |
5 |
User manual |
1 |

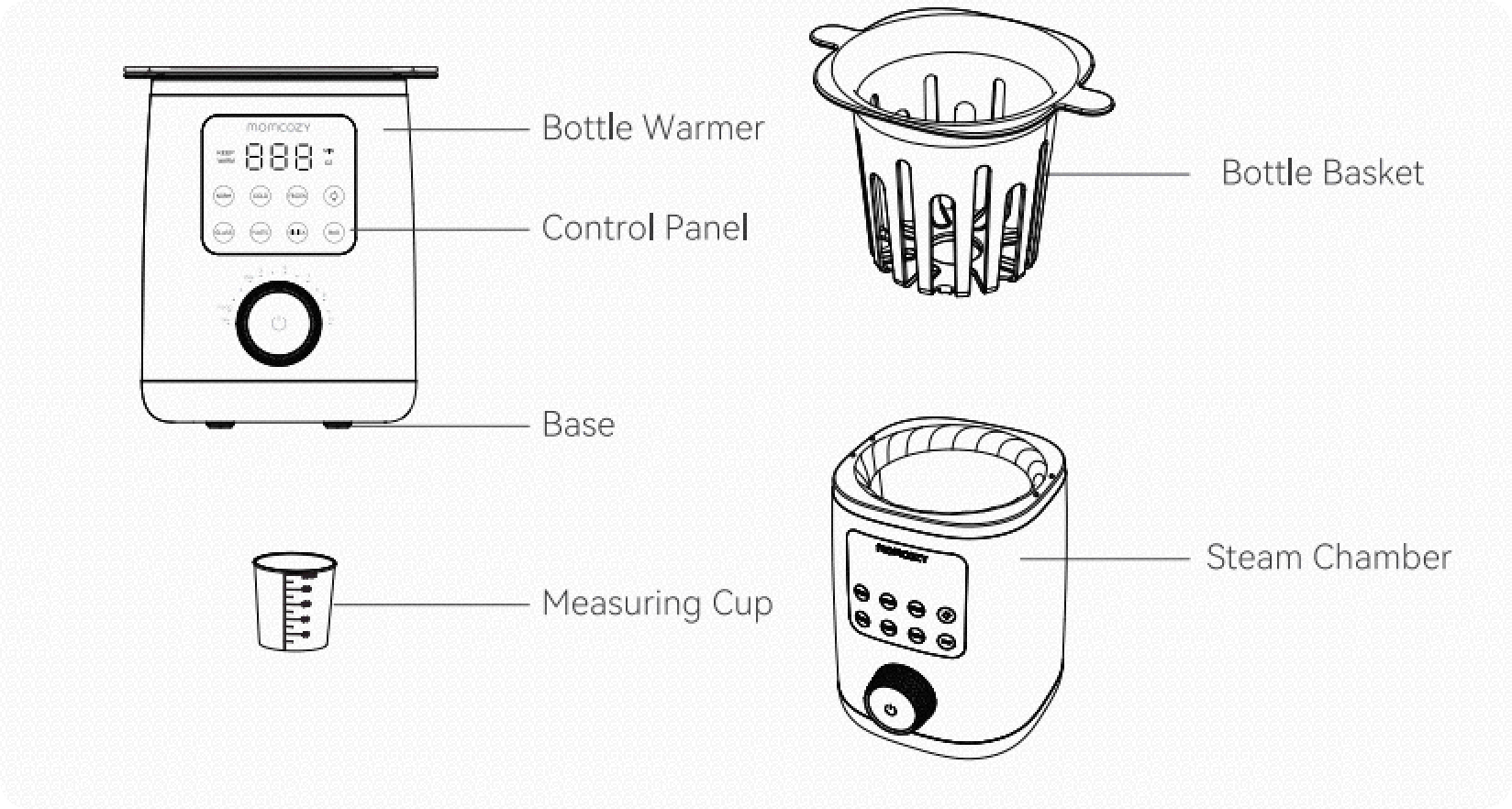

2.Unit Description
Description Of Unit | ||
NO. |
Item |
Description |
1 |
Bottle warmer |
The main unit of the bottle warmer is the core of the entire device, housing all functional modules such as the control panel, heating chamber, sensors, and power supply, ensuring that the device operates stably according to the settings. |
2 |
Control Panel |
The control panel is an important part that enables the user to select the desired functions and make the warmer work according to the selected function. |
3 |
Bottle basket |
The storage basket is used to place containers such as milk bottles, making it convenient for customers to take down the containers for heating and avoiding scalding their hands. |
4 |
Measuring Cup |
The water measurement cup is used to accurately measure the amount of water required for heating to ensure the heating effect and safe operation of the device. |
3.Appearance and Functionality

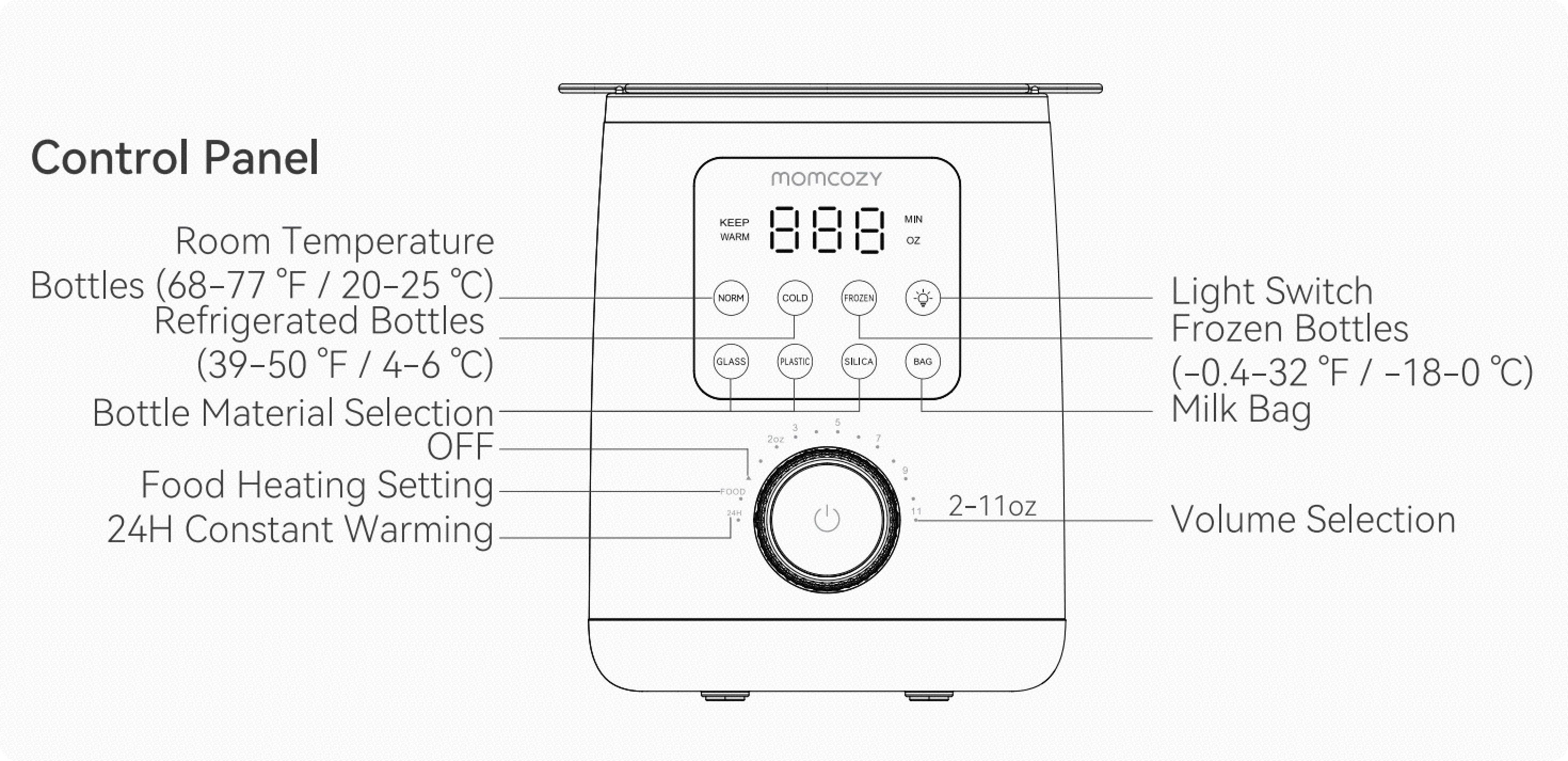

3.1Control Panel
Description Of Control Panel | |||
NO. |
Buttons and LEDS |
Functions |
Description |
1 |
Normal-Temperature Heating | Short press to select this function for heating milk from an initial temperature of 68 -77°F(20-25°C). | |
2 |
Low-Temperature Heating | Short press to select this function for heating milk from an initial temperature of 39-43°F(4-6°C). | |
3 |
Thawing | Short press to select this function for thawing frozen milk to near room temperature. | |
4 |
Night Light Adjustment | Short press to turn the night light on/off. Light Status: Solid Yellow Light:Device is powered on and ready for function selection. Flashing Yellow Light:Device is executing a function. Solid White Light:Standby state. Enter this mode by pressing and holding the power button for 2-3 seconds after powering on. |
|
5 |
Container Material Selection | Short press to select the corresponding container material. | |
6 |
Knob |

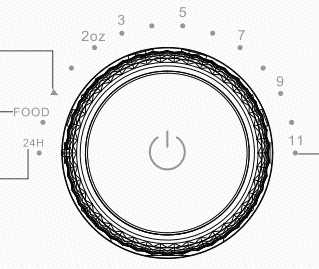

1.Function Selection/Volume of the liquid to be heated: Rotate to choose between 24H constant temperature heating,complementary food heating, standby mode,and volume of the liquid. 2.Power on/off, Play/Pause Button: a. Short-press the button to power on the milk warmer. Long-press for 2-3 seconds to power off the device. b. Short-press the button to start/pause a function. |
|
| 7 | Screen Display |
Heating time display：Once the program is started, the screen will display the heating time and count down. This function enables users to know the heating progress in time. | |
|
Volume selection display： 1.Displays the volume of milk that the customer has selected to be heated. Supports customers to choose 1-11oz milk volume and different container materials. Plastic：Normal: 1-11 oz；Cold: 1-11 oz；Frozen: 1-11 oz | |||
| Error code display：Displays the error code to remind customers of abnormal conditions during the operation of the milk warmer. | |||
