First Use Workflow:
Assemble the device ＞Remove and Clean the parts ＞ Assemble Mucus Collector

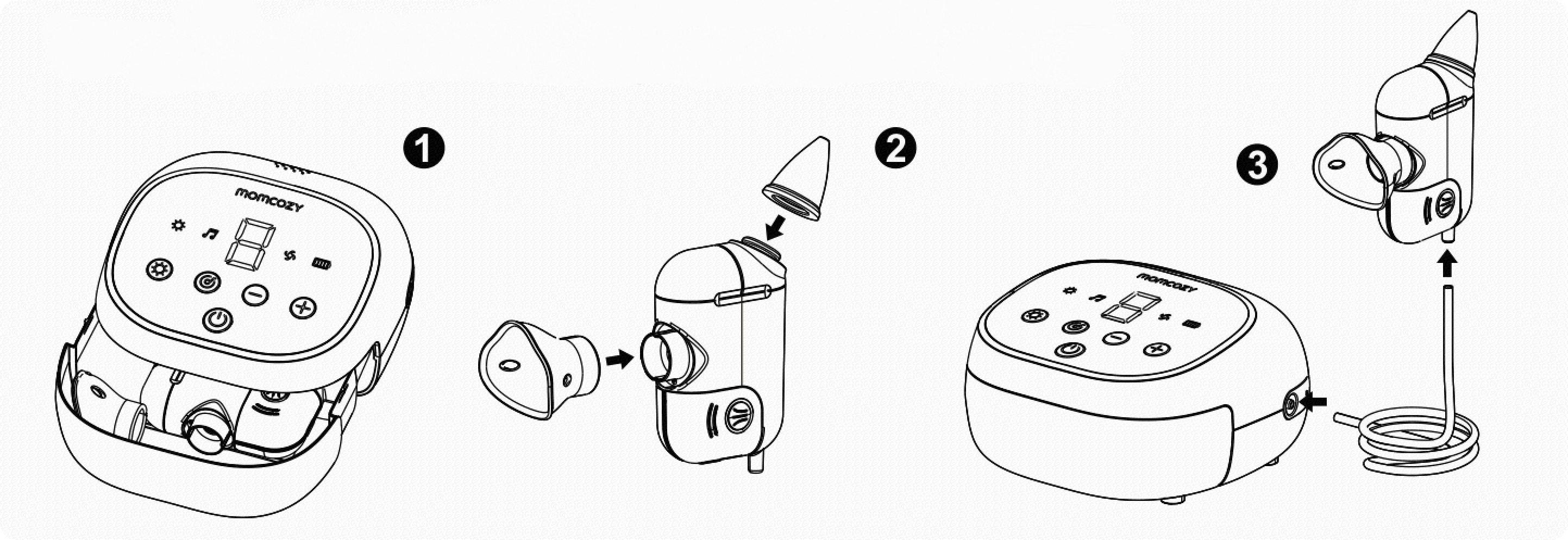

1. Assemble the Device and Power on
a) Take out the mucus collector/tubing/appropriate tip from the main body's storage drawer.
b) Attach the silicone tip with the mucus collector.
c) Connect tubing to main body and mucus collector, now you can power on and start suction.
d) Keep the child awake, gently insert the silicone tip into the nostril. Be careful not to insert the silicone tip too deep into the nostril or press it against the inner wall of the nostril.
e) Press and hold the power button for 3 seconds to start, select the appropriate Tip nozzle model and suction level, press the on/off button to start suctioning out the nasal mucus.
2. Remove and Clean the Parts
Precautions for cleaning and disinfection of baby nasal aspirator.
2.1 Wipe the Host
The host and the Atomizer Battery Module cannot be washed or boiled. Just wipe them with a cloth or paper towel. Clean or sanitize is necessary for the first time and each use.

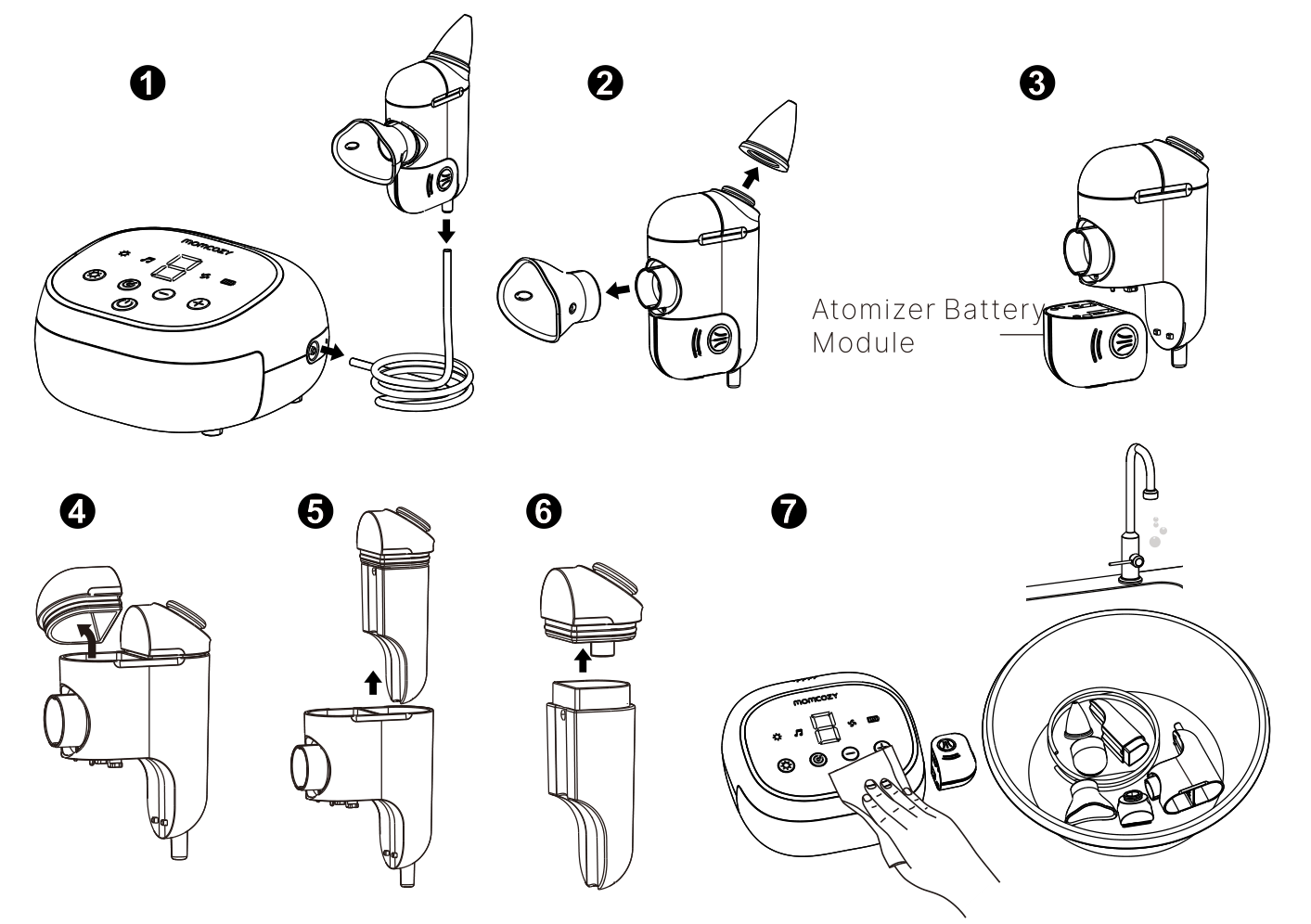

2.2 Clean the parts
For the first time and each use, clean all parts other than the main body that come into contact with the nasal and skin. Before cleaning, break the Baby Nasal Aspirator assembly into separate parts.
① Disconnect the tubing from the main body and mucus collector.
② Remove the tip from the mucus collector.
③ Remove the atomizer battery module.
④ Remove the Atomizer Chamber Cover.
⑤ Remove the Snot Chamber.
⑥ Separate the Chamber Cover from Snot Chamber.
⑦ Rinse the tubing, mucus collector and tip.
Suggestion:
Mild liquid dish washing detergent,clean sink or bowl,clean cloth or soft brush, drinking water, sink.
a) Immerse all separated parts in mild washing water for 5-10 minutes.
b) Clean with a clean cloth or soft brush.
c) Rinse all separated parts with clean water.
d) Allow all parts to air dry in a clean area.
e) Visual inspection:the cleaning procedure should be repeated if there is visible soil on the device.

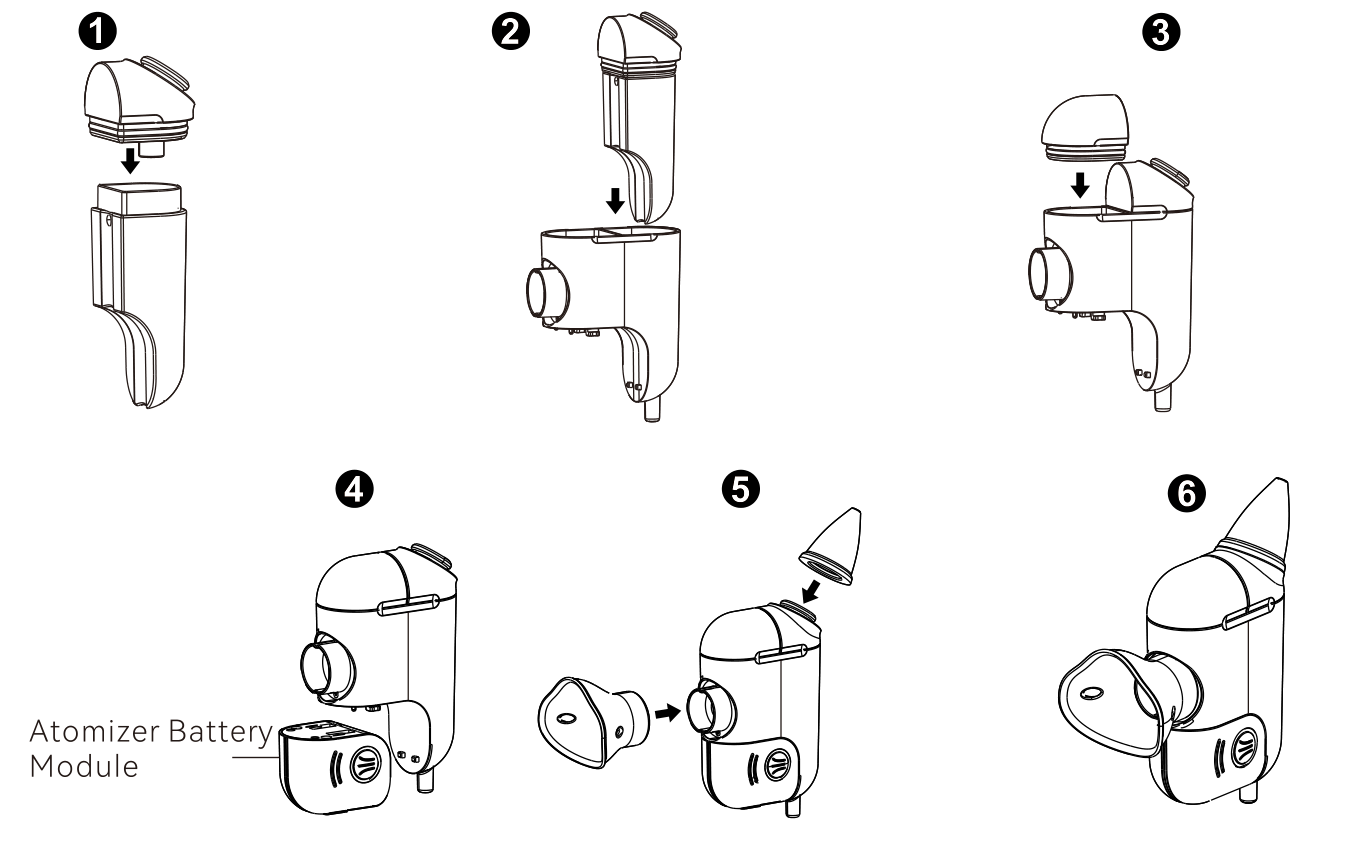

3. Assemble Mucus Collector
① Assemble the Snot Chamber and Chamber Cover together
② Insert the Snot Chamber
③ Put the Atomizer Chamber cover on
④ Insert the atomizer battery module into the atomizer chamber
⑤ Insert the nasal suction tips into the atomizer chamber
⑥ Assembly Complete
