Introduction

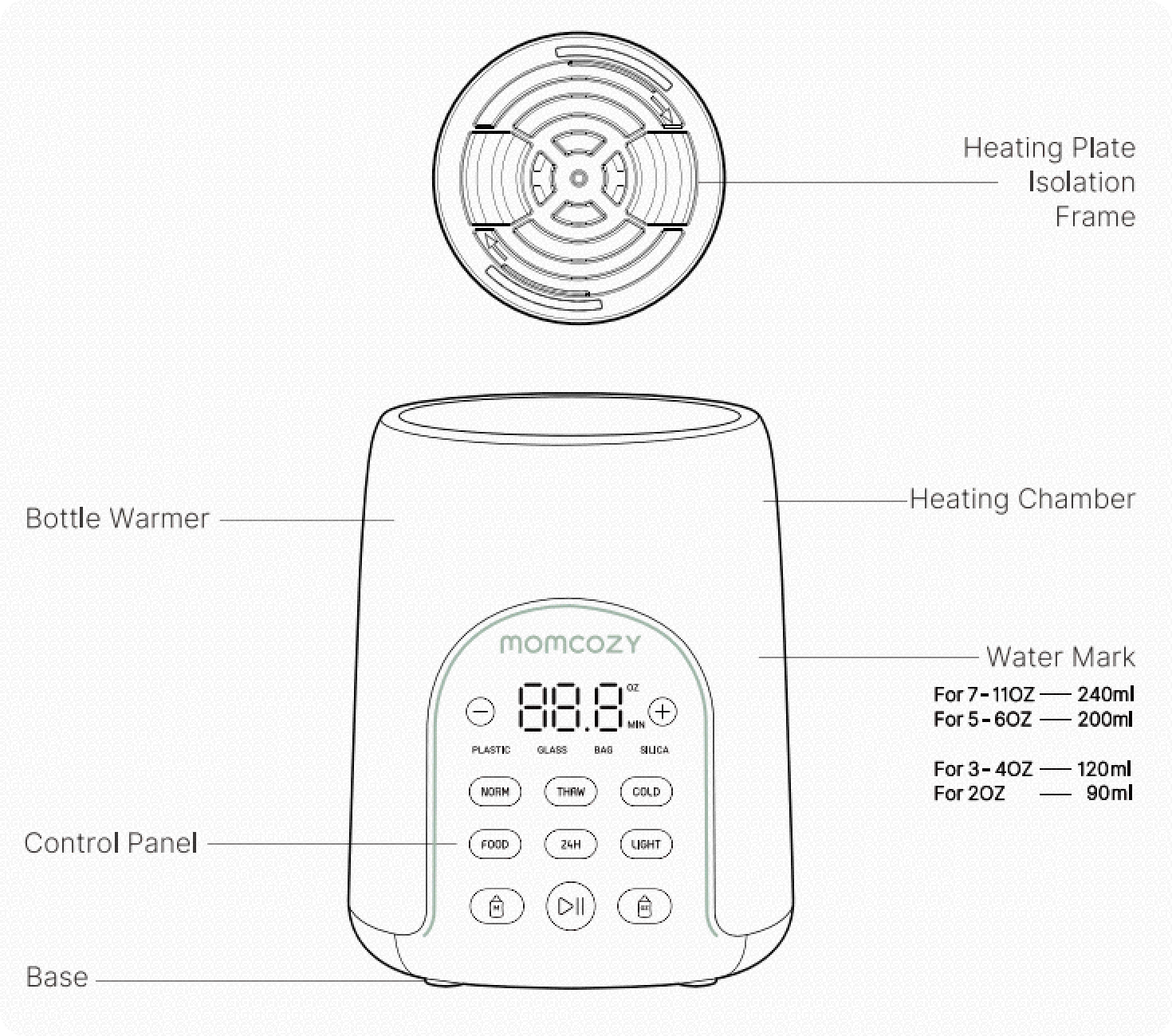

1.Unit Description
Description Of Unit | ||
NO. |
Item |
Description |
1 |
Bottle warmer |
It includes important parts such as a control panel, a transparent water tank (made of Tritan food-grade material), a heating plate (with a Teflon non-stick and easy-to-clean coating), and a power cord. Customers can easily set the milk warming mode as needed through the control panel, allowing the milk warmer to perform operations such as warming fresh milk, warming room-temperature milk, warming complementary foods, thawing, and 24-hour preheating for milk warming according to the program. |
2 |
Control Panel |
The control panel is an important part that enables the user to select the desired functions and make the warmer work according to the selected function. |
3 |
Heating Plate Isolation Frame |
Isolate the heating plate from the baby bottle so that the baby bottle does not directly contact the heating plate. |
4 |
Heating Chamber | The heating plate is a key component for heating, converting electrical energy into thermal energy to provide heat for heating water and containers. The black Teflon non-stick coating on the surface of the heating plate facilitates better cleaning of stains. |
5 |
Base |
It is equipped with a night light strip, and the brightness of the night light can be controlled through the panel, thereby providing nighttime lighting and facilitating night time use. |
2.Appearance and Functionality

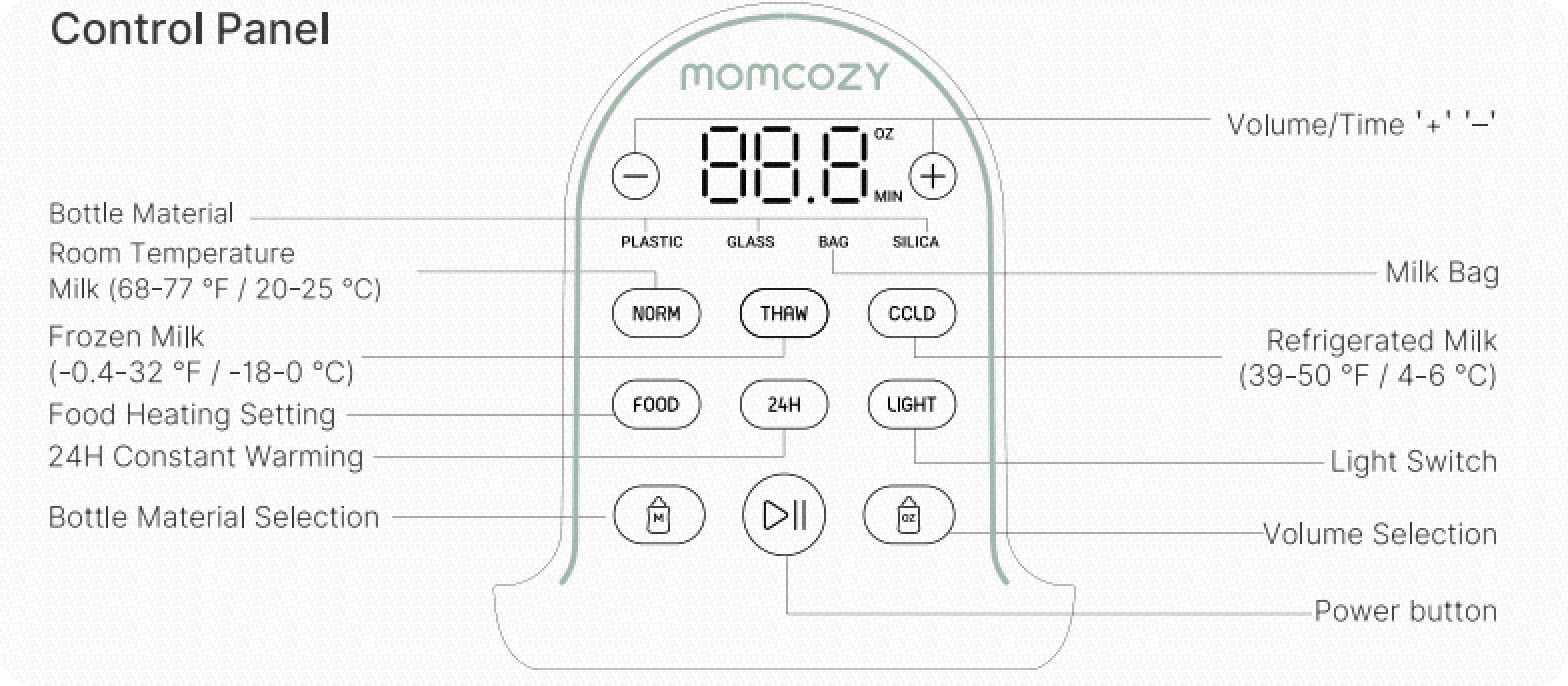

2.1 Control Panel
Description Of Control Panel | |||
NO. |
Buttons and LEDS |
Functions |
Description |
1 |
Start/Stop Button |
Function start/pause: press briefly once Return to standby: press and hold for 3 seconds |
|
2 |
Bottle material |
PLASTIC/GLASS/BAG/SILICA Switch bottle material: short press |
|
3 |
Milk volume selection |
Select according to the amount of milk to be warmed：Short press | |
4 |
Capacity/Time Adjustment (Increase/Decrease) |
Capacity adjustment: Short press Time adjustment: Short press (Each press increases/decreases by 0.5min) / Press and hold for 1 second for quick increase/decrease Note: 1. Before starting work, select the function. It will automatically enter the working state if there is no operation for 15 seconds. 2. Within 30 seconds after starting work, pressing the start/stop button can re-enter the function interface to reselect and adjust the function, milk volume, and material; after 30 seconds, pressing the start/stop button can only pause the current work; if there is no other key operation within 15 seconds after selecting a function or pausing a function, it will work automatically. |
|
| 5 | NORM |
Warm milk at room temperature |
Mode selection: press once briefly |
| 6 | THAW |
Thaw |
Mode selection: press once briefly |
| 7 | COLD |
Warm fresh milk |
Function start: press once briefly |
| 8 | FOOD |
Warm complementary food |
Function start/stop: press once briefly |
| 9 | 24H |
24H preheating |
Mode selection: press once briefly |
| 10 | LIGHT |
Night light (2 brightness levels) |
Mode selection: short press |
| 11 | Screen Display |
Heating time display：After the program starts, the screen displays the time required for heating and counts down, making it convenient for users to keep track of the heating progress in a timely manner. |
|
Abnormal code display：Display error codes E0, E1, E2, E3, and E5 to remind customers of abnormal states that occur during the operation of the milk warmer. | |||
Capacity selection display：Display the amount of milk that the customer has selected to be heated, so that the milk can be heated more accurately. Customers can choose a milk volume ranging from 2 to 11 oz, but there are restrictions on the optional heating milk volume based on different container materials and different mode selections. | |||
