Introduction

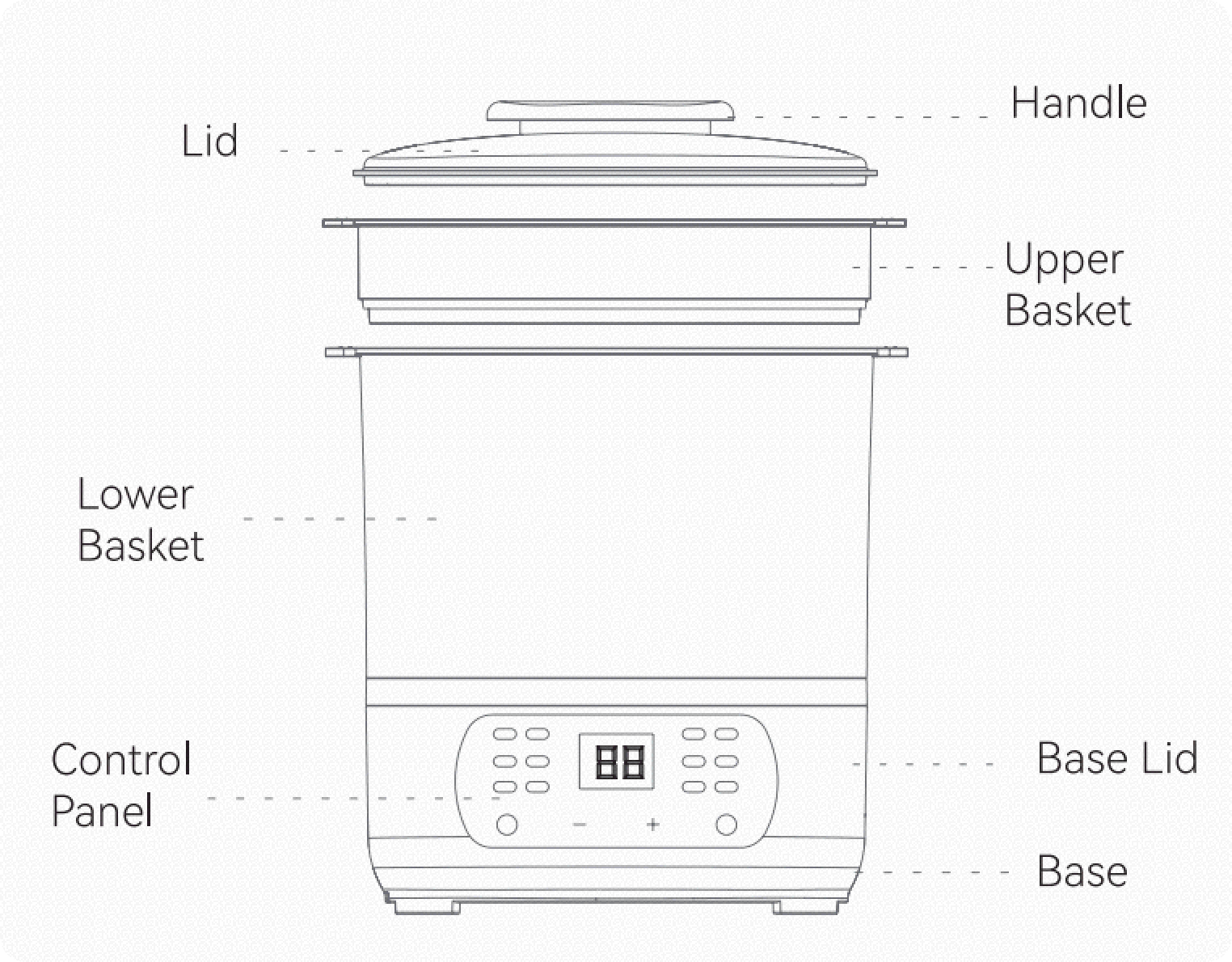

1.Main structural components

Description Of Product Strutural
NO.	Item	Description
1	Lid	Used to form a relatively enclosed space with the upper and lower baskets, preventing most dust from entering the sterilizer and affecting sterilization effectiveness.
2	Upper basket	Places smaller items, such as small toys, for easy sorting and sterilization.
3	Lower basket	Holds larger items, such as bottles and breast pumps, for efficient space utilization.
4	Control panel	The core of the operation. Users select functions through buttons.
5	Base	Supports the entire sterilizer, including the heating plate, control panel, power cord, and light.

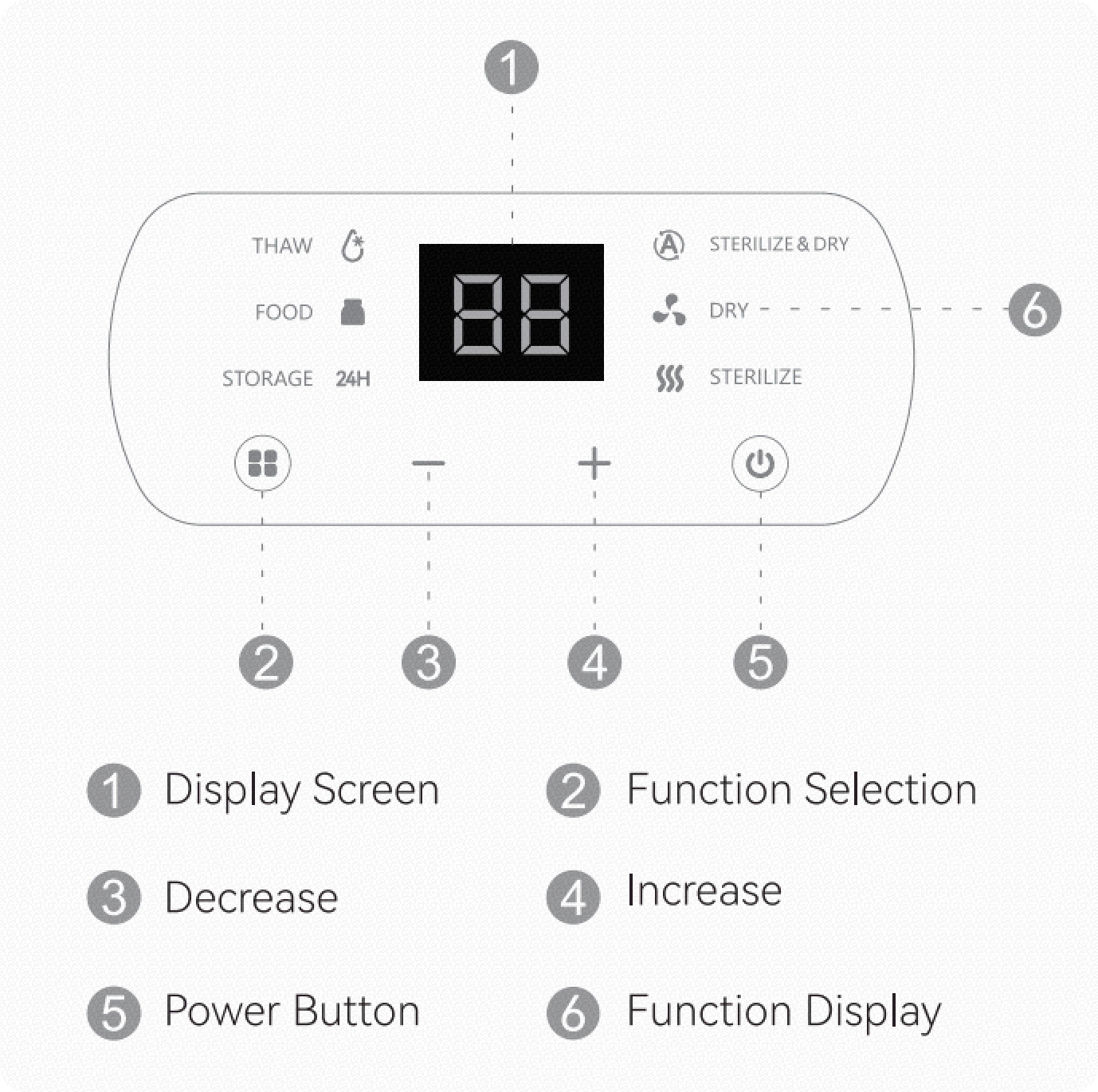

Description Of Control Panel
NO.	Item	Description
1	Display Screen	1.Time Display:The LED screen displays a countdown of the working time, giving users a clear view of the remaining time and allowing them to plan their usage accordingly.The screen also displays time changes, ensuring accurate information is updated after manual adjustments are made. 2.Error Code:Displays exception codes, such as E3 and E6, to help users quickly locate problems and facilitate after-sales personnel to provide targeted solutions.
2	Function Selection	Used to select different working modes：Auto, Dry, Sterilize, Thaw，Food, and Storage., to meet the diverse needs of users.
3	Decrease	This can be used to decrease the time or temperature of the six modes.
4	Increase	This can be used to increase the time or temperature of the six modes.
5	Power Button	Short press to turn on/off the machine.
6	Function Display	It supports multiple functions such as Thaw, Food,Sterilize&dry, Sterilize, Dry, Storage, etc. to meet the needs of different scenarios.
