Introduction

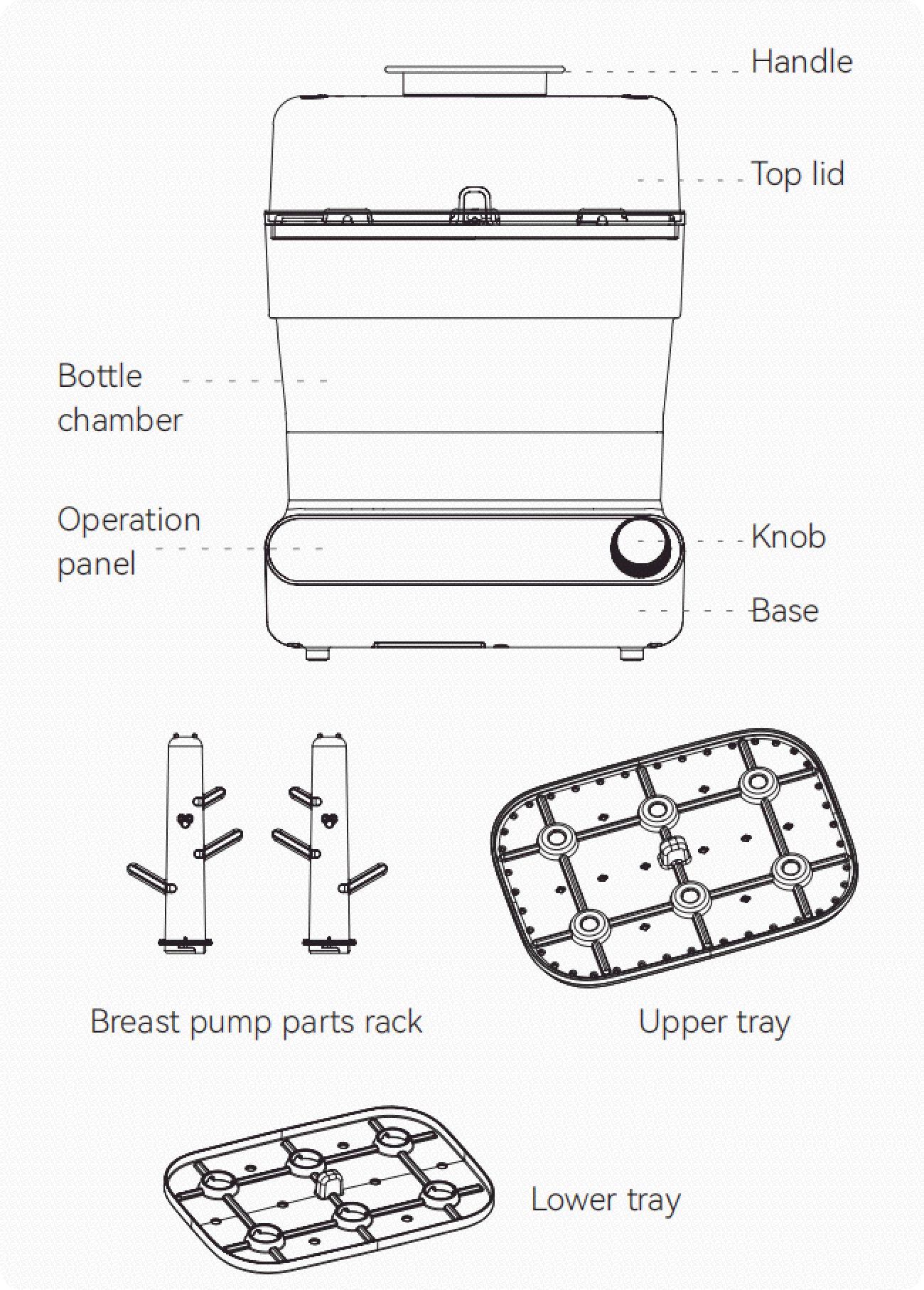

1.Main structural components
Description Of Product Strutural | ||
NO. |
Item |
Description |
1 |
Top Lid | Prevents dust from entering, and helps reduce heat loss. |
2 |
Bottle chamber | Places items such as baby bottles for sterilization. |
3 |
Operation panel | Used to configure machine functions. |
4 |
Knob |
Rotate to select function modes. |
5 |
Base | Supports the entire machine and houses key parts to ensure proper function. |
6 |
Breast pump parts rack |
Holds breast pump parts. |
7 |
Upper tray |
Places items to be sterilized/dried. |
8 |
Lower tray |
Places items to be sterilized/dried. |

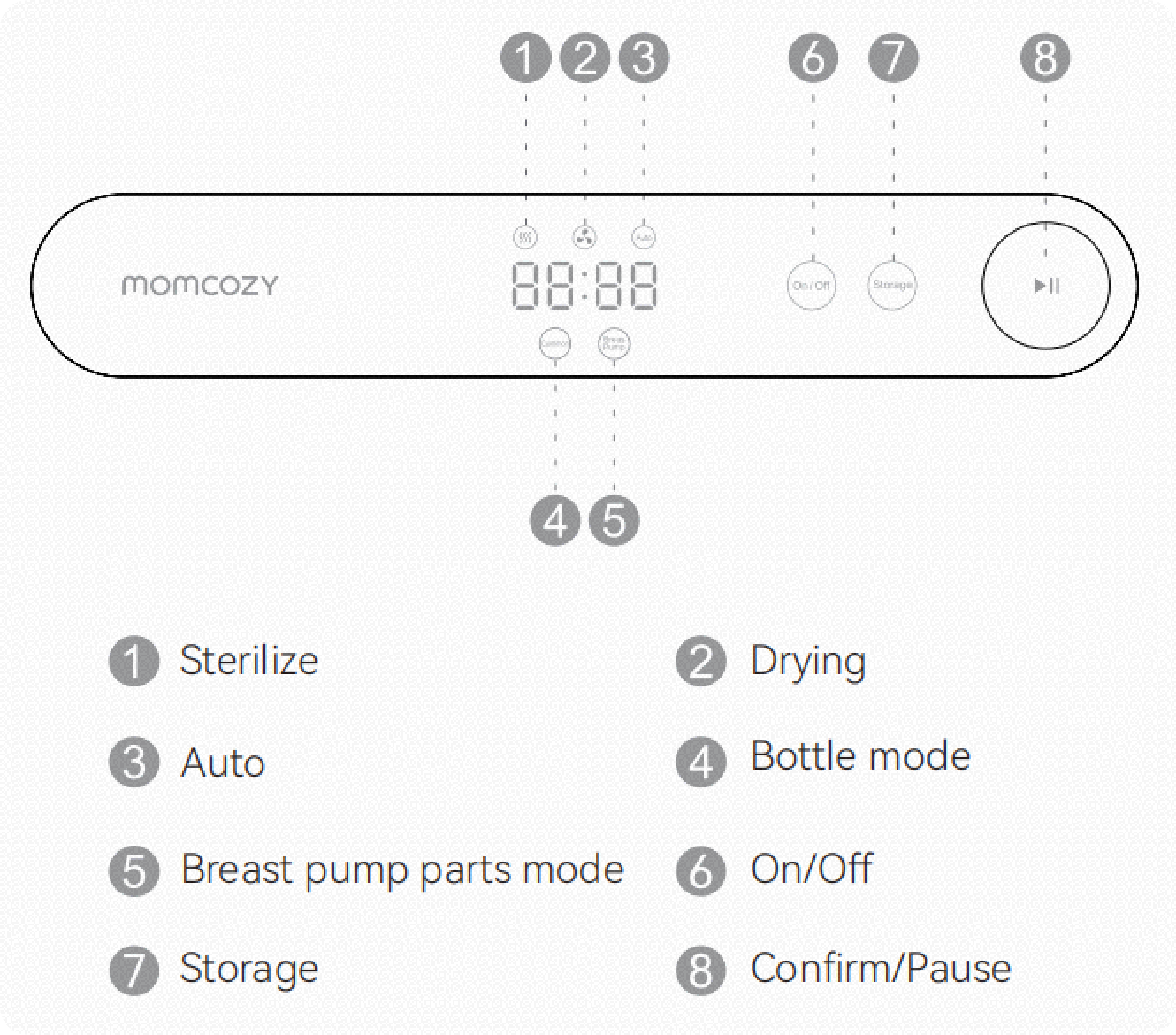

2.Control Panel
Description Of Control Panel | ||
NO. |
Item |
Description |
1 |
Steam sterilizing: Add 160 ml pure water into the heating chamber to produce high temperature steam to kill the bacteria on the items placed inside.When sterilization is in progress, the corresponding indicator lights up in blue. | |
2 |
Drying function: The items are dried through hot air.The corresponding indicator lights up in red. | |
3 |
Auto: The sterilizer operates automatically, including steam sterilization (indicator in blue) and then drying (indicator in red). | |
4 |
Common (Bottle mode): This mode is suitable for bottles, nipples, baby dishes, knives, forks and spoons. In this mode, you can choose between sterilization, drying and auto functions. | |
5 |
Breast pump parts mode: This mode is applicable to both automatic breast pump parts and manual breast pump parts. In this mode, you can choose between sterilization, drying and auto functions. | |
6 |
On/Off: Press this key to switch the sterilizer on/off. | |
7 |
Storage: Press this key to choose a 24-hour sterile storage after the completion of Drying or Auto functions. This mode features 5 minutes of drying every hour over period of 24 hours, i.e., every 55 minutes of inactivity will be followed by a 5-minute period of drying, so as to keep the inner cavity in a dry state. | |
8 |
Confirm/Pause: Press this key to confirm the selected working mode and function, pause and resume. | |
