Package List and Appearance Function Description of Baby Monitor BM08

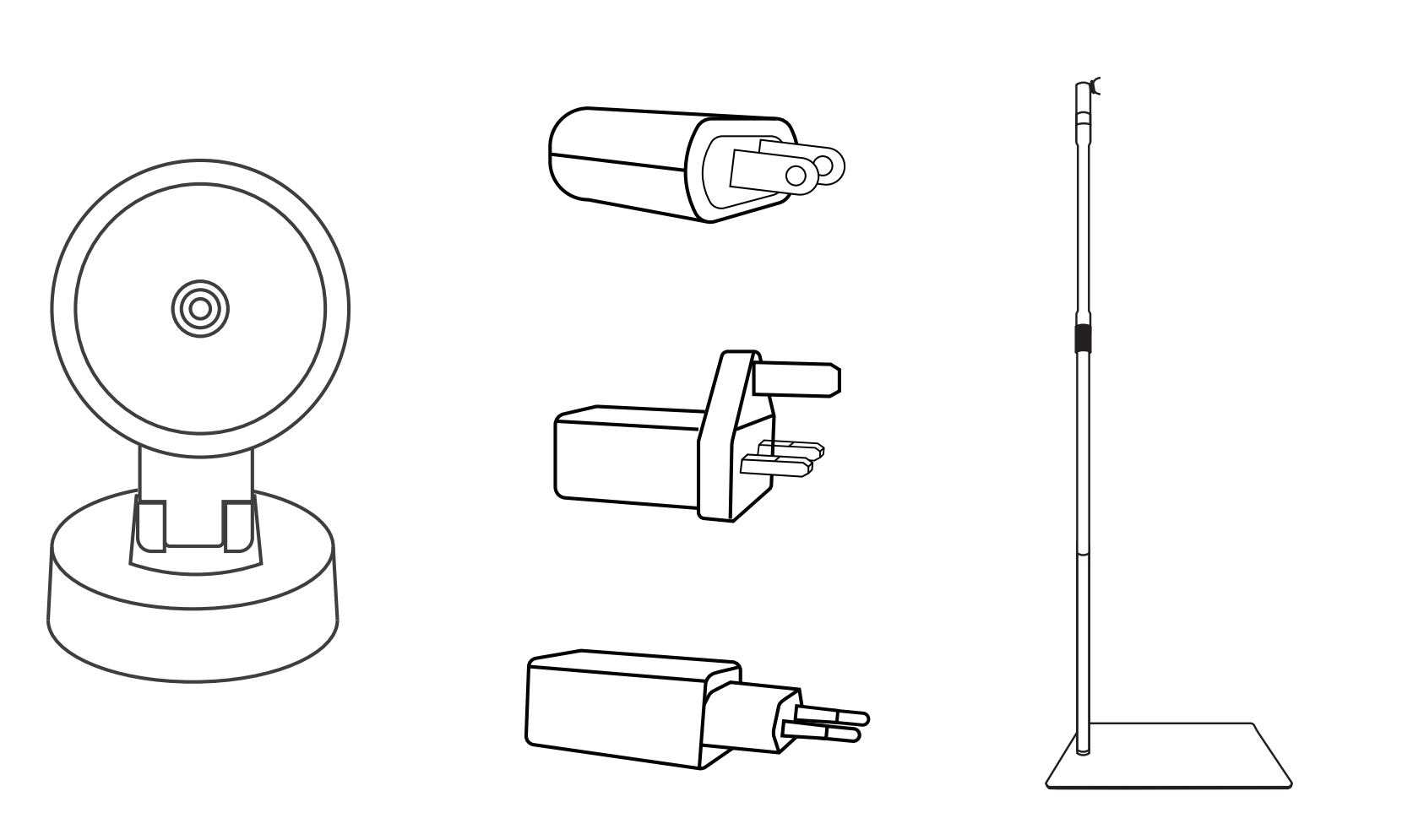

Package List:

① Camera*1

② Adaptor*1

③ Stand Floor *1(Need to install manually)

④ Cable *1

⑤ User Manual *1

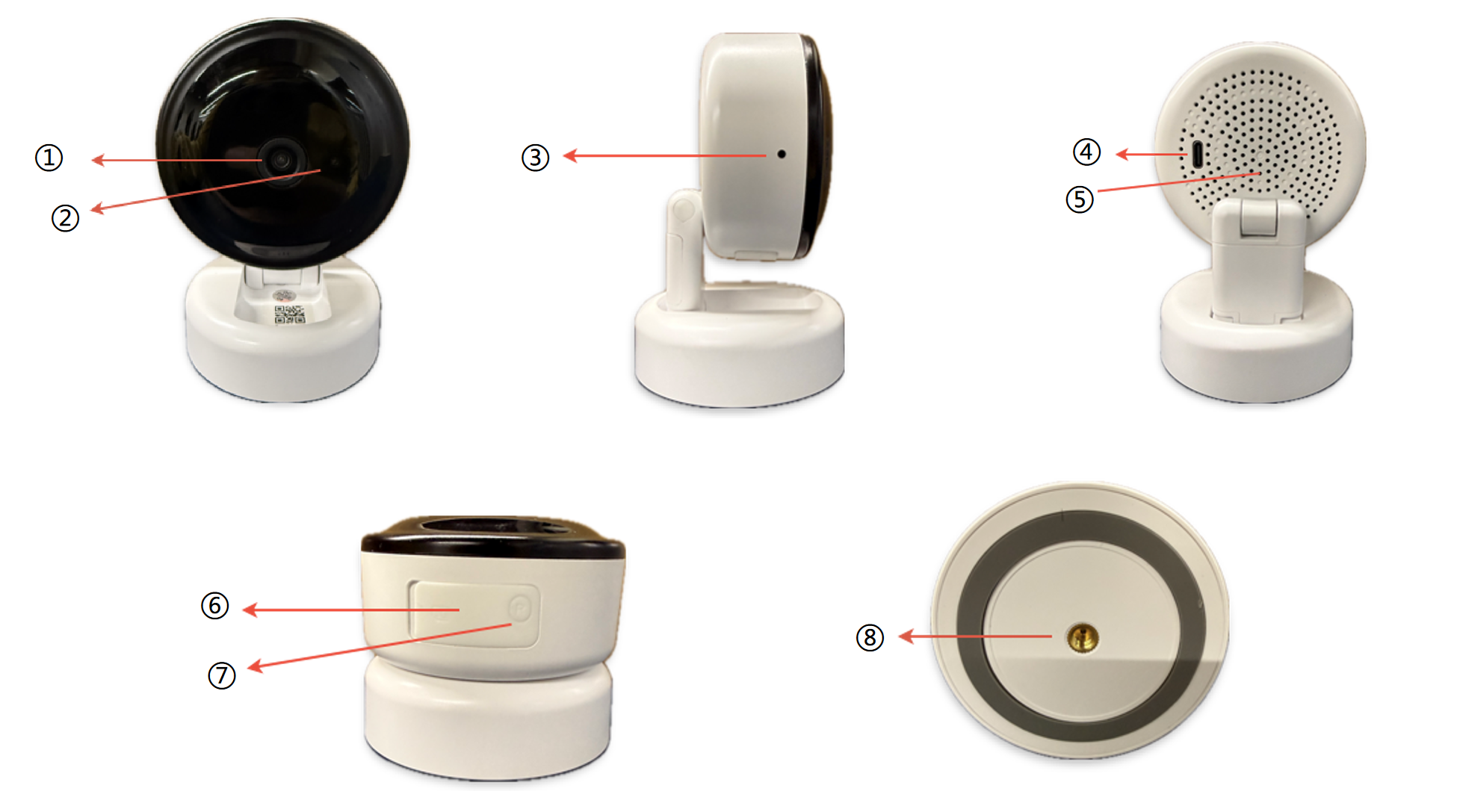

Appearance Function(Camera):



Function

Description

①

Lens

-

②

Microphone

-

③

Dual-color indicator light

(1) Red light always on: Powered on
(2) Red light slow flashing: Standby & network disconnected
(3) Red light fast flashing: Connecting to router
(4) Blue light slow flashing: Connecting to server
(5) Blue light always on: Binding successful

④

Type-C power port

-

⑤

Speaker

-

⑥

TF card slot

-

⑦

Reset button

-

⑧

1/4-inch imperial nut

-
