Chopper blade rack disassembly＞Chopper Lid Assembly＞Blender Blade Base Disassembly＞Blender Base Assembly＞Chopper Lid Disassembly＞Chopper Lid Assembly
Chopper Blade Rack Disassembly:
1. After opening the chopper lid, first grab the handle of the chopper blade and lift it upward to remove it (see Fig.25).

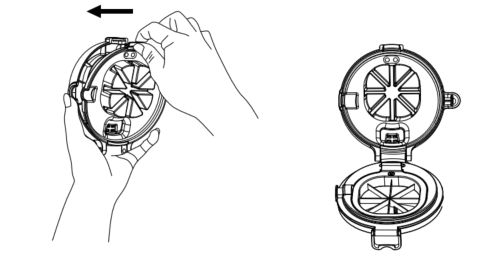

2. Rotate the chopper lid without the blade counterclockwise to remove it from the cup body (see Fig.26)
Chopper Lid Assembly:
1.First, install the chopper lid without the blade onto the blending cup and open the chopper lid.
2.Then, hold the handle of the chopper blade rack and place the blade rack into the chopper blade slot until you hear a "click".
Reminder: If food gets stuck in the star-shaped blade grooves, do not use your hands to remove it. Instead, carefully clear the debris using a utensil handle or cleaning brush to remove the food safely.
Blender Blade Base Disassembly:
Place the blending cup flat. Insert your left hand into the blending cup and hold the blending blade head.
With your right hand, grasp the rotating lid and unscrew it counterclockwise.
Remove the blending blade seat from the blending cup and take off the sealing ring.
Blender Base Assembly:
Before assembly, place the blending blade seat flat with the blade edges facing down. The blades are very sharp, so handle them carefully to avoid injury.
Fit the cleaned blending blade seat into the sealing ring, making sure the orientation is correct and not reversed. The sealing ring should fit snugly against the red ring near the drive head.
Then, install the blending blade assembly into the cup. Hold the blending blade assembly with your left hand and pass the bottom of the assembly through the hole at the bottom of the cup. With your right hand, hold the rotating lid and insert it through the bottom of the blending cup, then turn it clockwise until you hear a "click" .
Chopper Lid Disassembly:
The inner cover can be cleaned as a whole by rinsing or placed in the dishwasher for cleaning. If foreign objects or excessive moisture enter, try the following disassembly steps.
Inner Cover Disassembly:
Use your index finger to press at the vent opening, while grabbing the handle of the chopper lid with your other hand and pulling upward to remove the chopper lid.
Chopper Lid Assembly:
Before assembly, lay the chopper lid assembly flat and open the chopper lid
Hold the chopper seat lid assembly with your left hand, then grasp the latch handle of the chopper lid with your right hand ). Align the latch of the chopper lid with the corresponding slot on the chopping seat lid, press down until you hear a "click" .
When fully assembled, there should be no gaps at the steam outlet connection.
Tip: It is normal for the chopper lid to become stained when processing foods like carrots or tomatoes that easily cause discoloration. You can clean it using baking soda or dishwashing detergent.
