Follow exactly the guidelines and the sequence of steipsfor product assembly.
After completing each step, check that fixing is secure!
Fixing in certain position is most of the times accomppaniedwith a click!
Make sure all pins have shown through the openings.

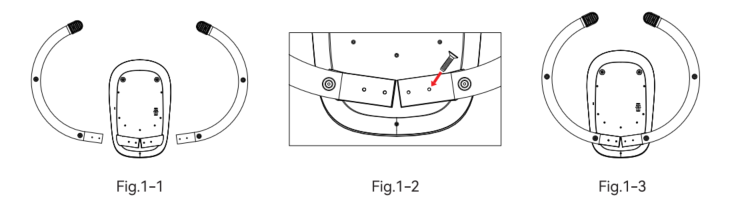

1.Bottom tubes installation method
Insert the two bottom tubes into the main frame follow the direction of the Arrows (Fig.1-1), Locking 4 screws to secure base. (Fig.1-2)Note that the bottom tube will not wobble when the 4 screws are tightened(Fig.1-3)

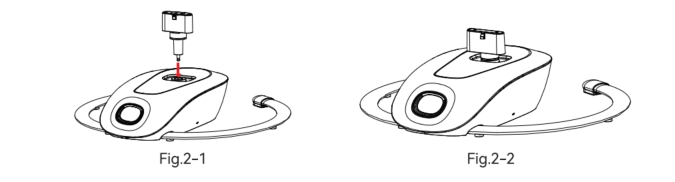

2.Seat supporting adaptor installation method
Insert the Seat supporting adaptor on the triangle column above the main frame(Fig. 2-1). Until you hear the 'click" sound of the key, the installation is in place.
If you don't hear the sound of a key popping, you can force it down slightly until the key pops up.(Fig. 2-2).
3.Backrest frame installation method
Insert backrest frame on the triangle column above the mainframe. (Fig.3-1)
Until you hear the 'click" sound of the key,the installation is in place.If you don't hear the sound of a key popping, you can force it downs lightly until the key pops up. (Fig.3-2)
4.Seat installation method
Place the installed frame on the ground,unfasten the zipper and webbing buckle behind the seat cover, and gently insert the left and right seat tubes in the backrest frame respectively (Fig. 4-1), until the locked plastic clipper pops up and locks (Fig. 4-2). Then close the zippers at the upper and lower ends of the back of the seat cover, and finally buckle the webbing buckle (Fig 4-3) to complete the installation (Fig 4-4).
Pay attention to identify the orientation of the seat before installattion.
5.Toy bar installation method
Insert the lower part of the toy bar into the groove at the top of the seat(Fig.5-1).
Please note that the toy bar cannot be taken out easily after it isfixed. (Fig.5-2)
